EZ-ACCESS PATHWAY Assembly Manual

Aluminum wheelchair ramp kit
Hide thumbs Also See for PATHWAY:
Table of Contents

Advertisement

Quick Links

Download this manual
Assembly Manual
PATHWAY
Aluminum Wheelchair Ramp Kit
®

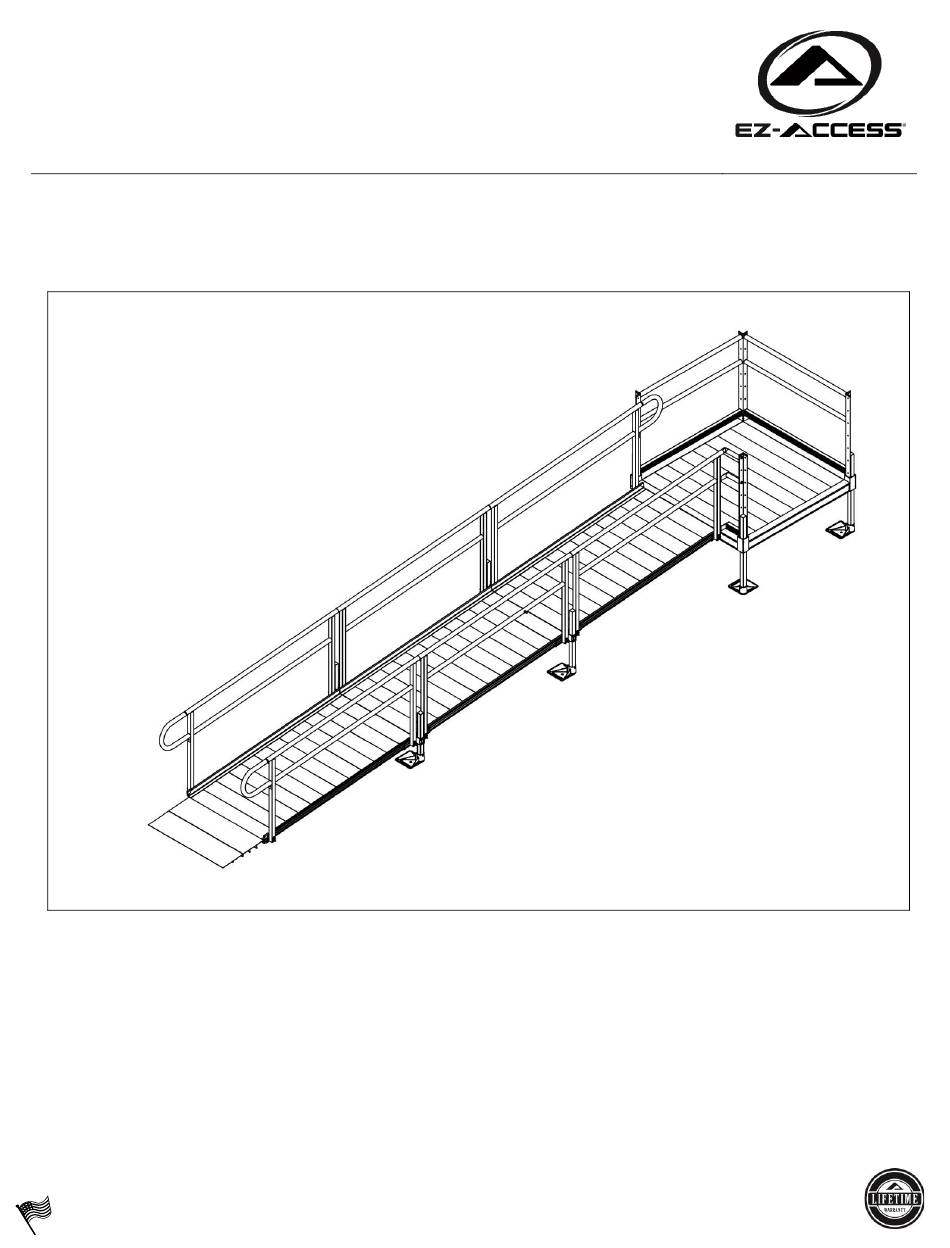

Configuration shown with straight ramp run and 4' x 4' top platform.
However, there are multiple configurations and sizes
available. See inside manual for additional information.
LIFETIME WARRANTY. Please register at www.ezaccess.com/warranty-satisfaction.
®
© EZ-ACCESS
, a division of Homecare Products, Inc. All rights reserved.
All text and images contained in this document are proprietary and may not be shared, modified, distributed,
reproduced, or reused without the express written permission of EZ-ACCESS.
Manufactured in the USA
21123 REV 07-07-2023
