6.9.10. If there is are support tubes in the ramp run, the same method as described
above for platforms can be used. Otherwise, drill a 5/16" hole below the
tread surface (approximately 3/4" above the bottom of the side rail) and
between the ribs underneath the treads in each of the side rails at the
desired location.

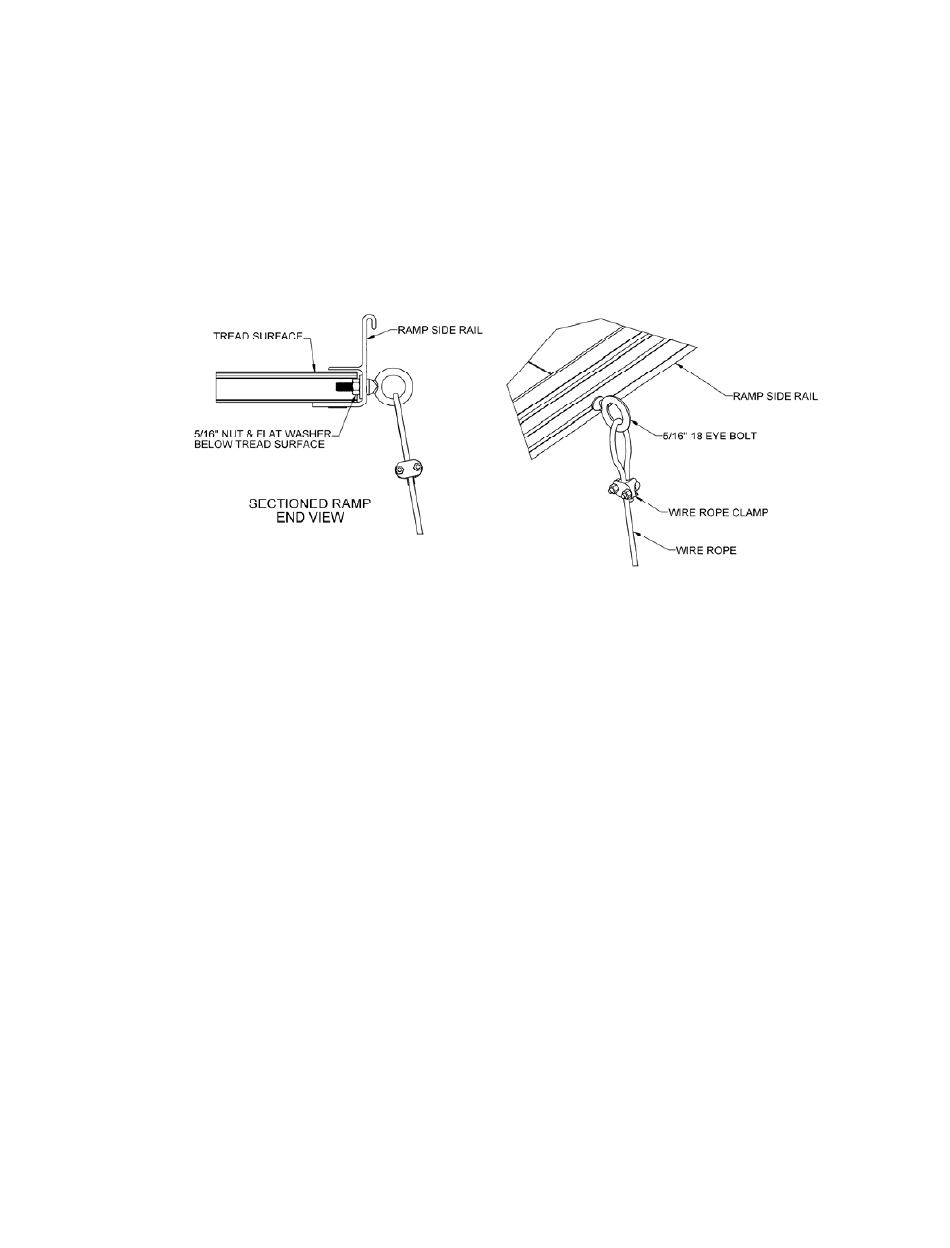

6.9.11. Install one of the 5/16" eyebolts and secure to the ramp using one 5/16" flat
washer and one 5/16" nut in each hole (FIG. 6.25).
6.9.12. Secure one end of the wire rope to the eyebolts using the supplied 3/16" wire
rope clamps.
6.9.13. Repeat for all locations.
FIG. 6.25
