6.10.3. Remove gravity latch and finger catch from bag. NOTE: Discard the screws
included in the same bag as the gravity latch and finger catch, as they will
not be used. Instead, use the screws included in the separate hardware bag
for the following steps.

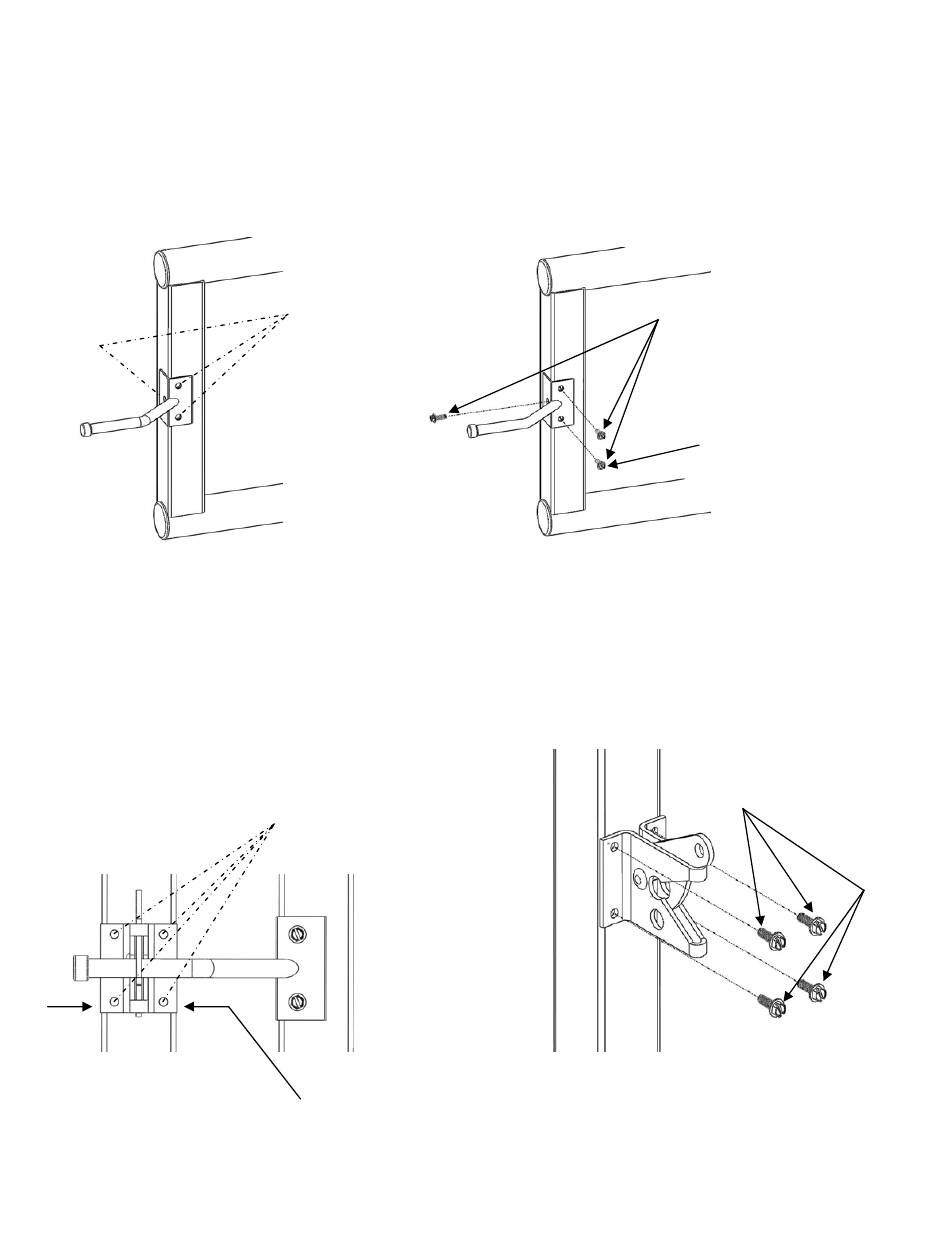

6.10.4. Center finger catch on the gate square tube opposite the hinge and mark
center of holes with a pencil. Drill three 1/8" holes through one side of the
vertical handrail tube (FIG. 6.30).
6.10.5. Use 1/4" nut driver to secure catch with screws (FIG. 6.31).
DRILL 5/16" HOLES
FIG. 6.30
6.10.6. Clip the latch to the finger catch and center on the step or ramp vertical
square tube. Mark center of the holes with pencil. Drill four 1/8" holes
through one side of the vertical handrail tube (FIG. 6.32). Use 1/4" nut driver
to secure latch using screws. (FIG. 6.33).
DRILL 1/8" HOLES
CENTER ON POST
FIG. 6.32
FIG. 6.31
FIG. 6.33
- 47 -
#8 X 1/2" LONG HEX
WASHER HEAD SCREW
IMPORTANT: INSTALL
BOLT FROM THIS SIDE
#8 X 1/2" LONG HEX
WASHER HEAD SCREW
