Determining the status of a port, application, or extension blade

Use the following procedure to determine the status of a blade.
1. Check the LEDs on the blade.
The LED patterns may temporarily change during POST and other diagnostic tests. For information about how to
interpret the LED patterns, refer to the table following the blade descriptions.
2. Check the blade status by entering

FC8-32E port blade LEDs

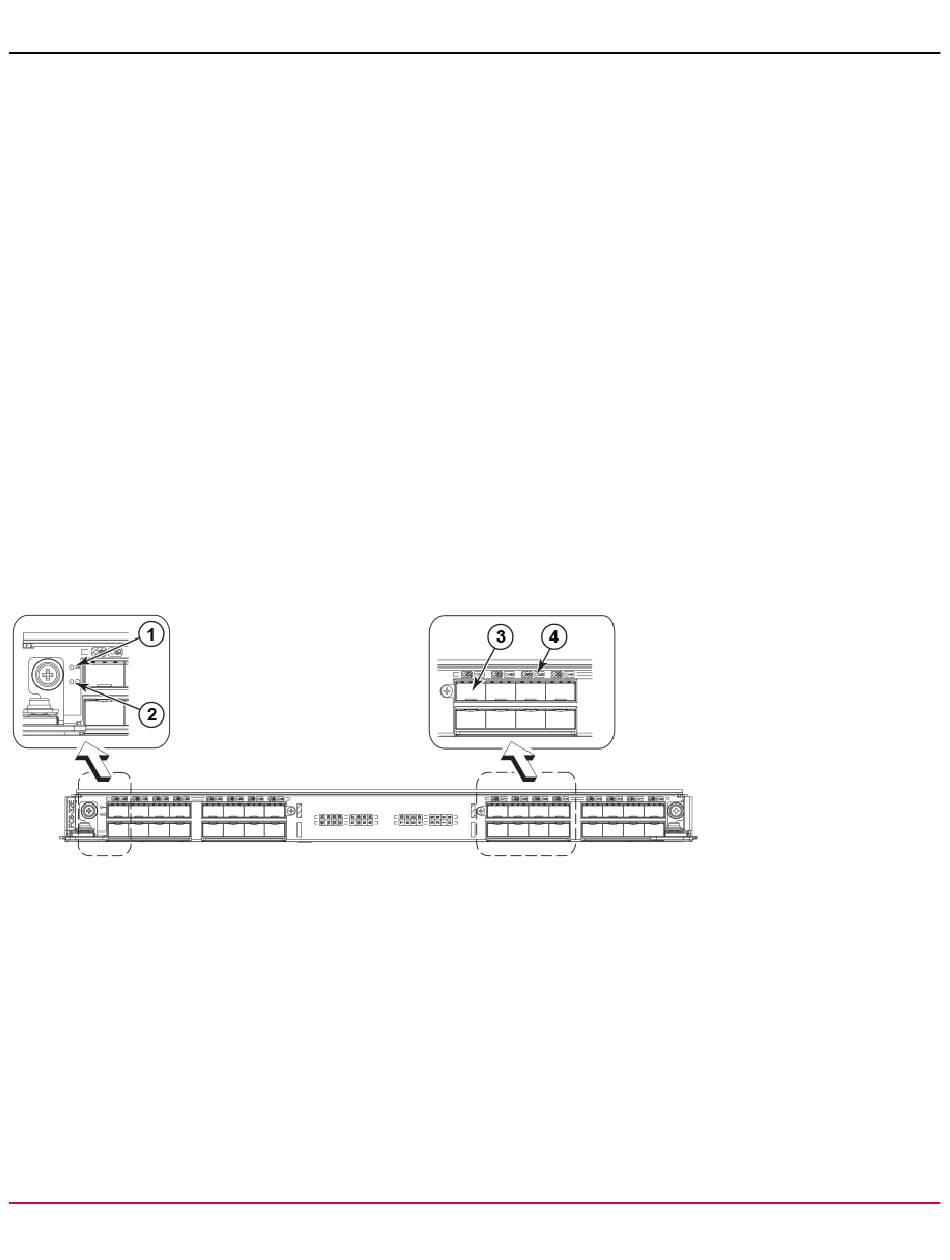

Figure 40: FC8-32E port blade LEDs
1. Blade status LED
2. Blade power LED
3. Fibre Channel port
4. Port status LED
Broadcom
BRD0000CA
SLKWRM0000X4S
2
-1
60-1000888-05
ANQ0417F03P
Day: 7 Month: 6 Year: 2010
Day: 29 Month: 3 Year: 2011
229 days
0 days
.
slotShow
