53-1002177-19 Hardware Installation Guide

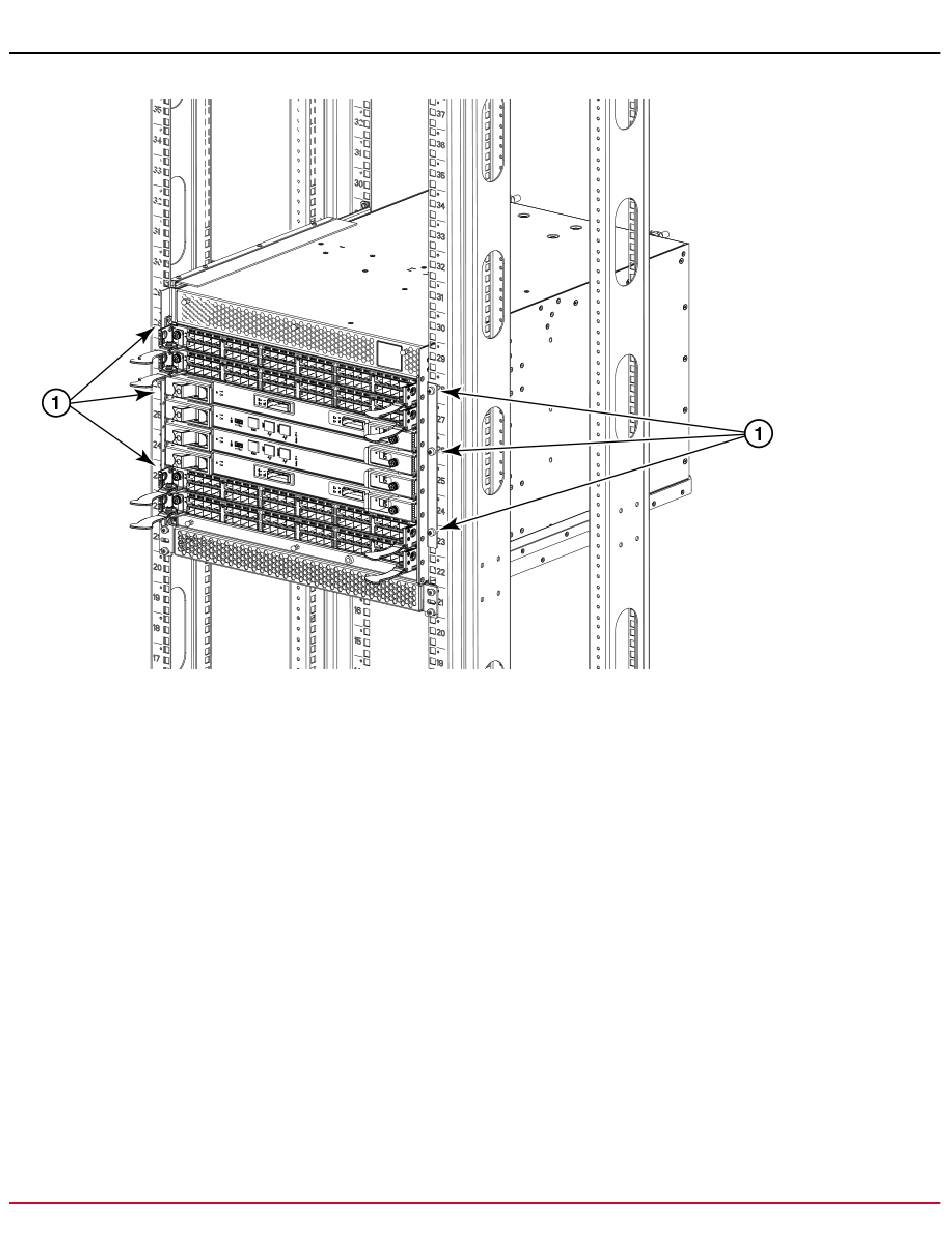

Figure 23: Device and 27-31 in. (68.58 to 78.74 cm) kit installed in rack
1. Screw locations for 10-32 x .5 in. (1.27 cm) Phillips screw with blue Loctite on threads or 10-32 x .63 in.(1.60
cm) Phillips screw with square cone washer for racks that have rails with round holes. Use either 10-32 retainer
nut for racks that have rails with square holes or 10-32 clip nut for racks that have rails with round holes to
retain screws.
NOTE
For rails with round holes, use the clip nuts (refer to
rails with square holes, use the retainer nuts (see
6. Reinstall the device door. Refer to procedures for removing and replacing the device door in this guide.
Installing the 8U Chassis 27-31-Inch Rail Rack Kit for Four-Post Racks
(XBR-DCX4S-0120)
Use the following instructions to install the device in a rack using the 8U Chassis 27-31 Inch Rail Rack Kit for Four-Post
Racks (XBR-DCX4S-0120).
Observe the following when mounting this device:
Broadcom
Brocade DCX 8510-4 Backbone Hardware Installation Guide
Figure 1) on the rails for securing the 10-32 screws. For
Figure 1). Also refer to Figure 2.
53-1002177-19
