2. QSFP ports 0-7; FC ports 0-31 (right to left)

FS8-18 encryption blade port numbering

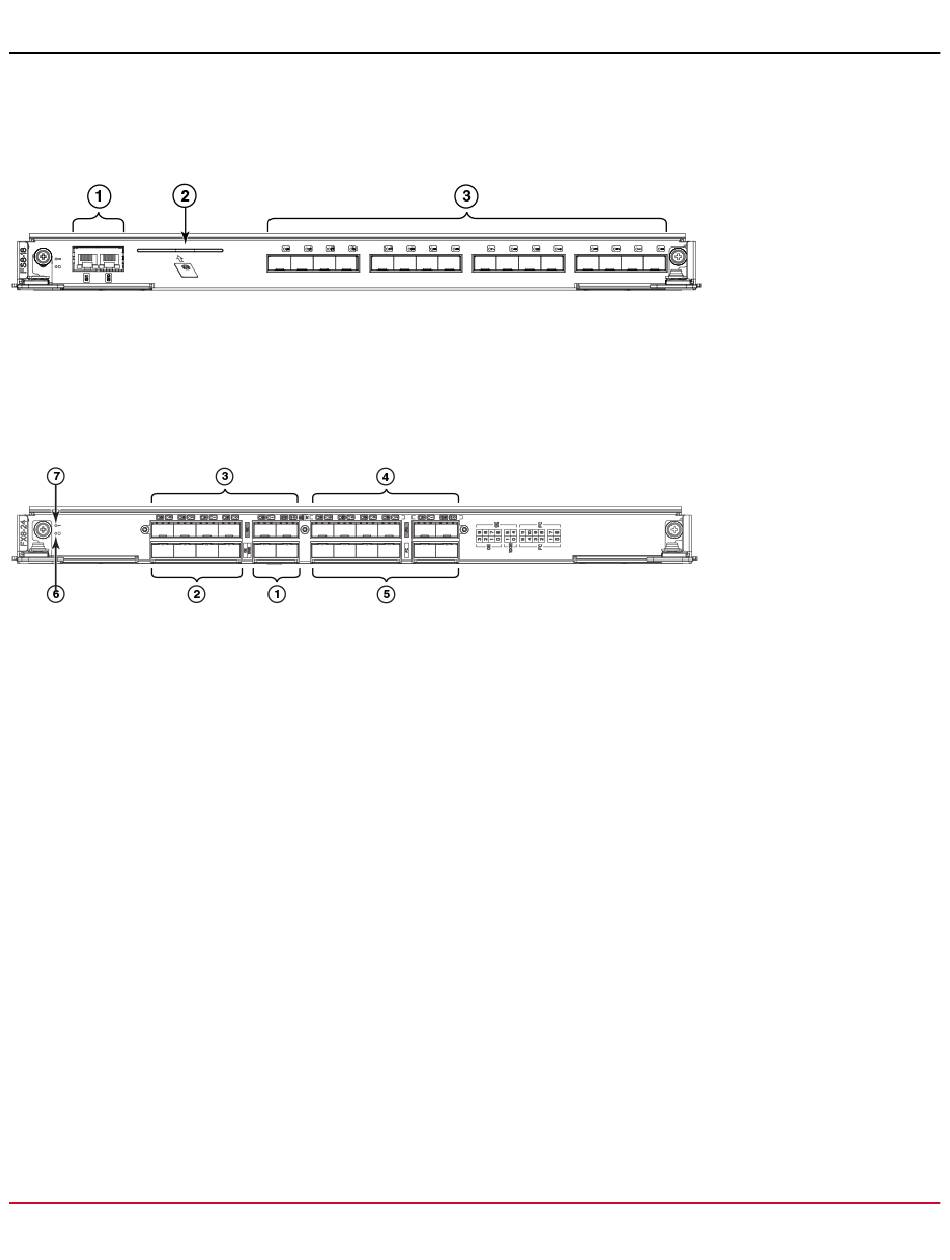

Figure 77: FS8-18 encryption blade port numbering
1. Gigabit Ethernet ports GE0-GE1
2. Smart card port
3. Fibre Channel ports 0-15 (right to left)

FX8-24 extension blade port numbering

Figure 78: FX8-24 extension blade port numbering
1. 10-GbE ports 0-1 (right to left)
2. 1-GbE ports 0-3 (right to left)
3. 1-GbE ports 4-9 (right to left)
4. FC ports 6-11 (right to left)
5. FC ports 0-5 (right to left)
6. Blade Power LED
7. Blade Status LED
