53-1002177-19 Hardware Installation Guide
Duct
Shelf
Shelf saddle
10-32 x .5 in. (1.27 cm) Phillips screw (blue Loctite on threads)
10-32 x .63 in.(1.60 cm) Phillips screw with square-cone washer
10-32 clip nut for racks that have rails with round holes
10-32 retainer nut for racks that have rails with square holes
Alignment washer for racks that have rails with square holes
6-32 x .25 in. (.635 cm) Phillips screw

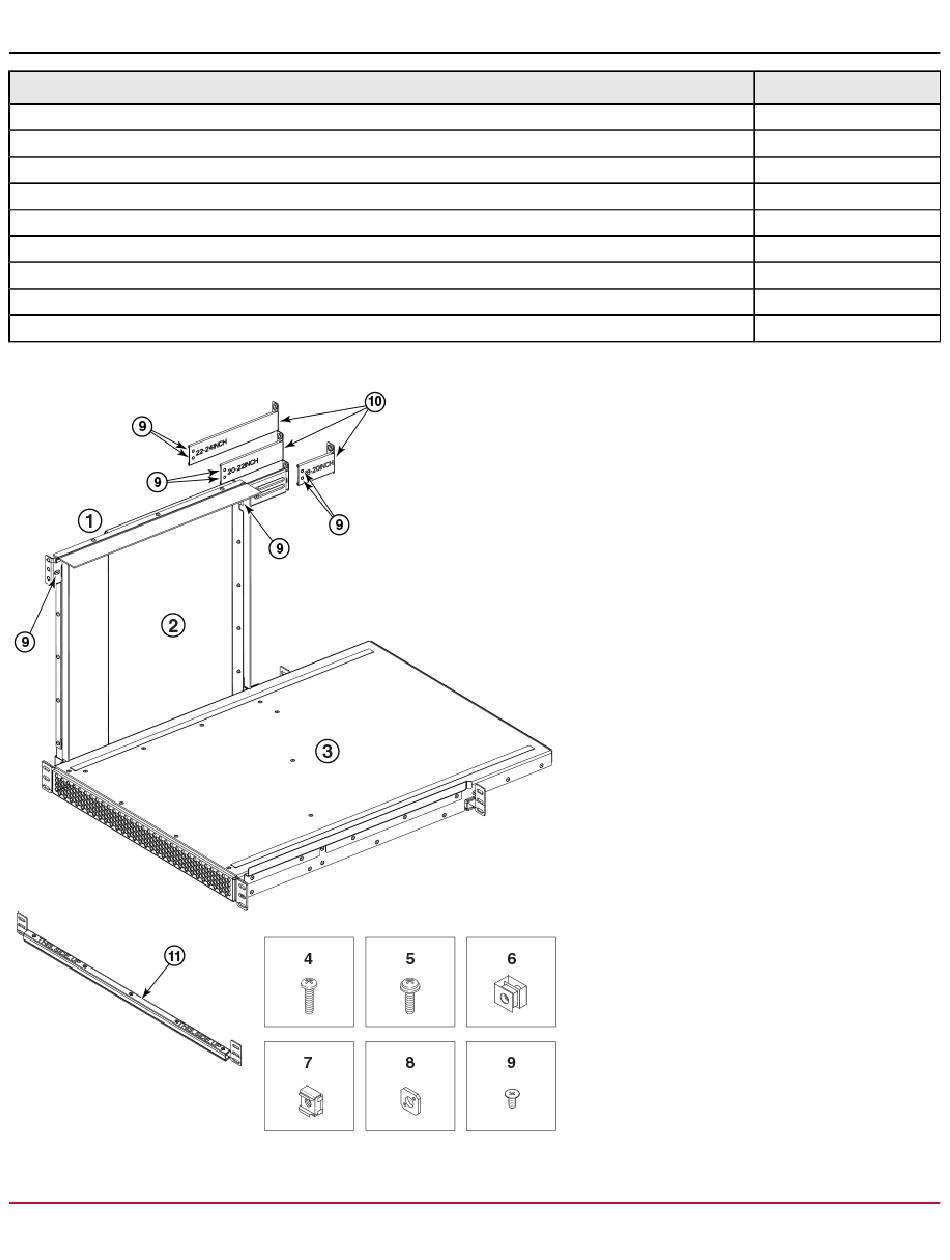

Figure 11: Airflow Diversion and Port-Side Exhaust Kit assembly for 18-24 in. (45.72 to 60.96 cm) racks
1. Top rail
Broadcom
Description
Brocade DCX 8510-4 Backbone Hardware Installation Guide
1
1
1
12
12
8
8
12
2
Quantity
53-1002177-19
