53-1002177-19 Hardware Installation Guide

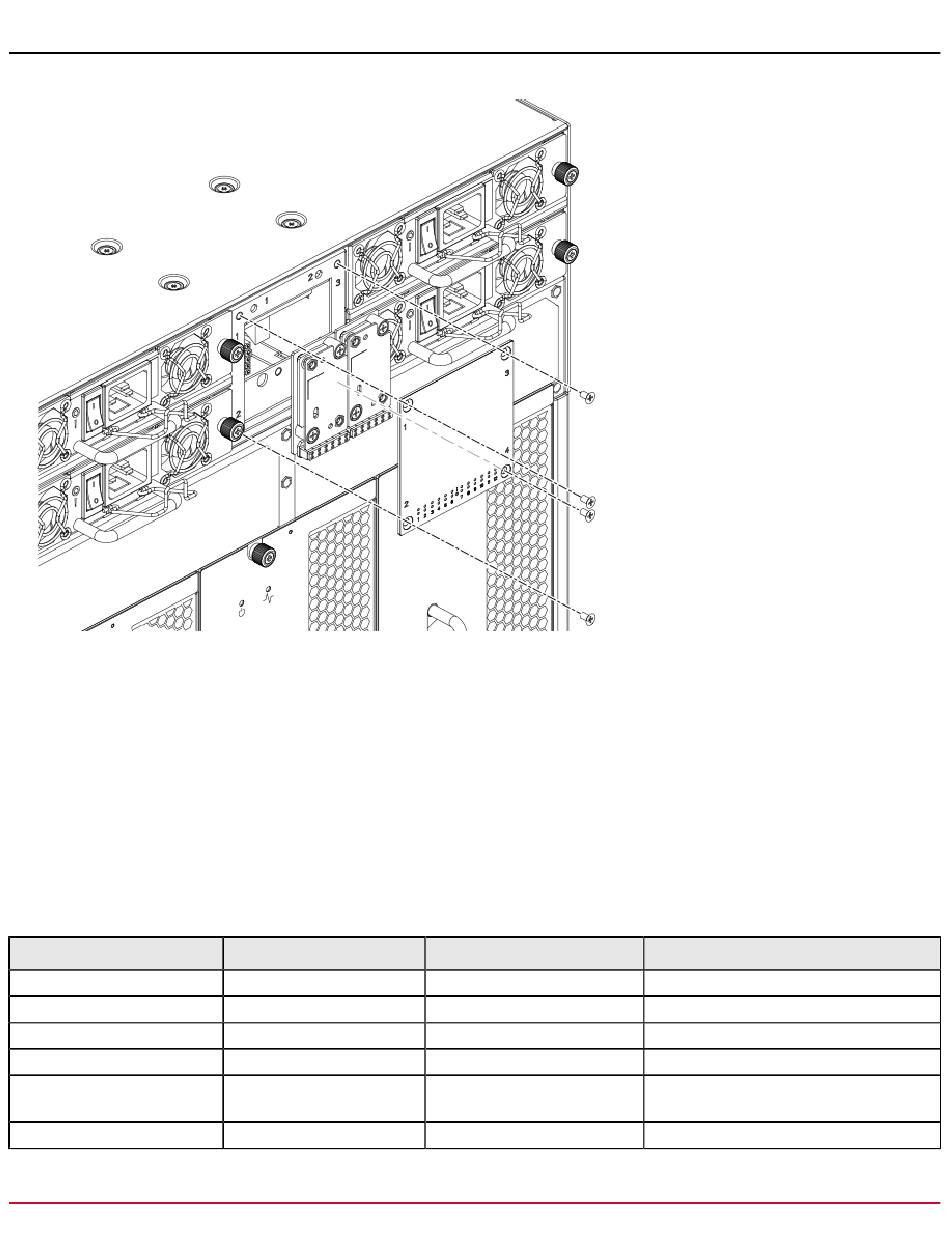

Figure 63: Removal and replacement of the WWN bezel (logo plate) and WWN card
7. Use a Phillips screwdriver to unscrew the screws that secure the WWN card to the chassis.
8. Depending on the WWN card removed, label the card and cables with #1 for the left side and #2 for the right side for
future reference.
9. Disconnect the WWN cable by depressing the cable connector latch and pulling the connector from the WWN module.
10. Hold the WWN card by its edges and gently pull it out from the chassis.
11. Set the WWN card on a static-free surface, such as a grounding pad.

Transceiver and fiber optic cable removal and replacement

Use the procedures in this section to remove and replace fiber optic cables and the various types of transceivers
supported on the device.
Blade
FC8-32E and FC8-48E
FC8-64
FC16-32 and FC16-48
FC16-32 and FC16-48
FC16-64
CR16-4/8
CR16-4/8
Broadcom
Transceiver
SFP+
mSFP
SFP+
10-Gbps SFP+
QSFP
QSFP
Auto-negotiate/Fixed
Auto negotiate
Auto negotiate
Auto negotiate
Fixed
Auto negotiate
Fixed
Brocade DCX 8510-4 Backbone Hardware Installation Guide
Speeds supported(xGbps)
2, 4, and 8
2, 4, and 8
2, 4, 8, and 16
10
4, 8, and 16.
16
53-1002177-19
134
