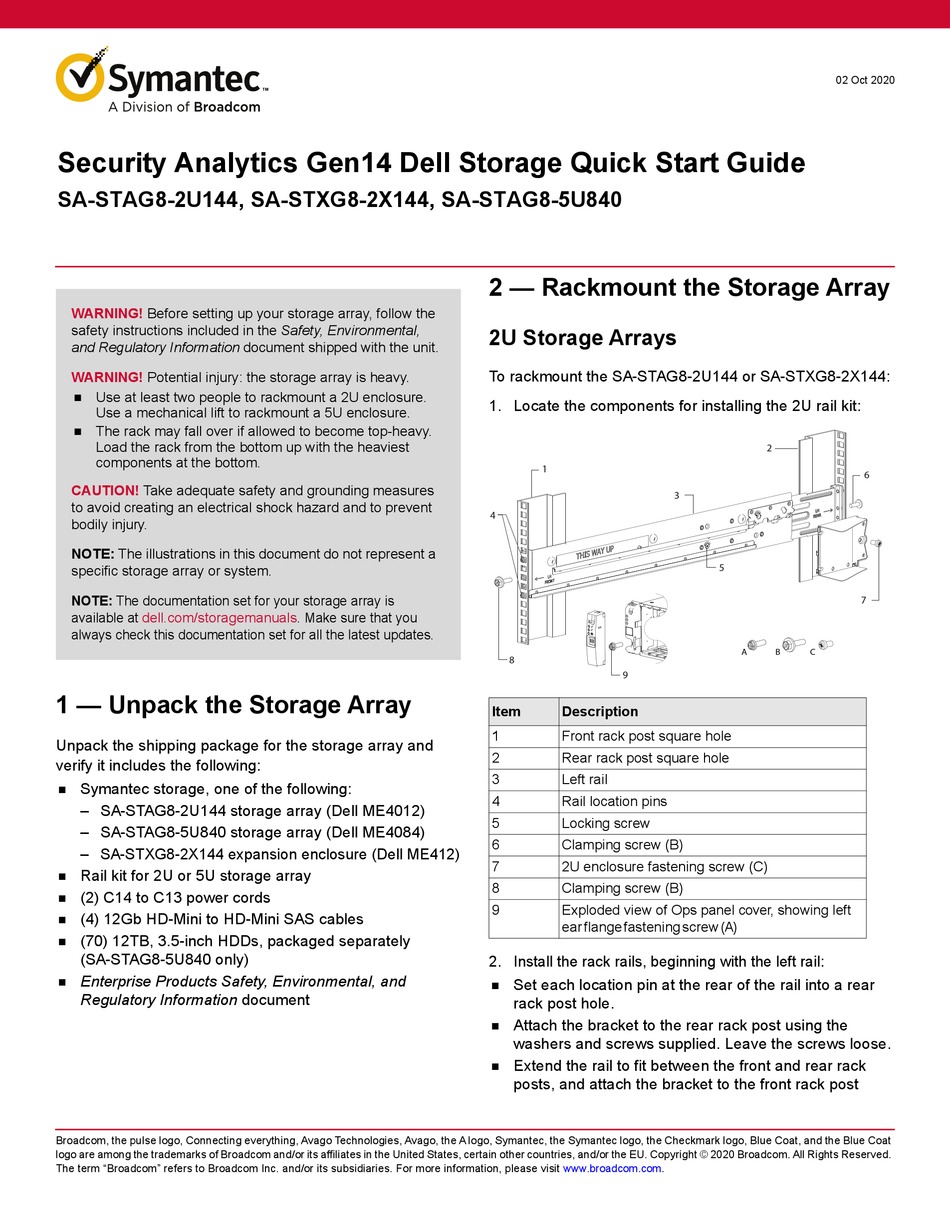

Broadcom Symantec SA-STAG8-2U144 Quick Start Manual

Security Analytics Gen14 Dell Storage Quick Start Guide
SA-STAG8-2U144, SA-STXG8-2X144, SA-STAG8-5U840
WARNING!
Before setting up your storage array, follow the
safety instructions included in the Safety, Environmental,
and Regulatory Information document shipped with the unit.
WARNING! Potential injury: the storage array is heavy.
Use at least two people to rackmount a 2U enclosure.

Use a mechanical lift to rackmount a 5U enclosure.
The rack may fall over if allowed to become top-heavy.

Load the rack from the bottom up with the heaviest
components at the bottom.
CAUTION!
Take adequate safety and grounding measures
to avoid creating an electrical shock hazard and to prevent
bodily injury.
NOTE: The illustrations in this document do not represent a
specific storage array or system.
NOTE: The documentation set for your storage array is
available at dell.com/storagemanuals. Make sure that you
always check this documentation set for all the latest updates.
1 — Unpack the Storage Array
Unpack the shipping package for the storage array and
verify it includes the following:
Symantec storage, one of the following:


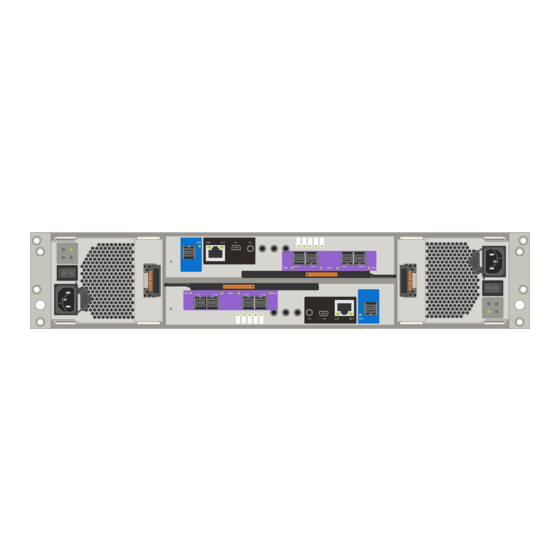

– SA-STAG8-2U144 storage array (Dell ME4012)
– SA-STAG8-5U840 storage array (Dell ME4084)
– SA-STXG8-2X144 expansion enclosure (Dell ME412)
Rail kit for 2U or 5U storage array

(2) C14 to C13 power cords

(4) 12Gb HD-Mini to HD-Mini SAS cables

(70) 12TB, 3.5-inch HDDs, packaged separately

(SA-STAG8-5U840 only)
Enterprise Products Safety, Environmental, and

Regulatory Information document
Broadcom, the pulse logo, Connecting everything, Avago Technologies, Avago, the A logo, Symantec, the Symantec logo, the Checkmark logo, Blue Coat, and the Blue Coat
logo are among the trademarks of Broadcom and/or its affiliates in the United States, certain other countries, and/or the EU. Copyright © 2020 Broadcom. All Rights Reserved.
The term "Broadcom" refers to Broadcom Inc. and/or its subsidiaries. For more information, please visit www.broadcom.com.
2 — Rackmount the Storage Array
2U Storage Arrays
To rackmount the SA-STAG8-2U144 or SA-STXG8-2X144:
1. Locate the components for installing the 2U rail kit:
1
4
8
9
Item Description
1 Front rack post square hole
2 Rear rack post square hole
3 Left rail
4 Rail location pins
5 Locking screw
6 Clamping screw (B)
7 2U enclosure fastening screw (C)
8 Clamping screw (B)
9 Exploded view of Ops panel cover, showing left
ear flange fastening screw (A)
2. Install the rack rails, beginning with the left rail:
Set each location pin at the rear of the rail into a rear

rack post hole.
Attach the bracket to the rear rack post using the

washers and screws supplied. Leave the screws loose.
Extend the rail to fit between the front and rear rack

posts, and attach the bracket to the front rack post
02 Oct 2020
2
3
5
A B C
6
7
