53-1002177-19 Hardware Installation Guide
Brocade DCX 8510-4 Backbone Hardware Installation Guide

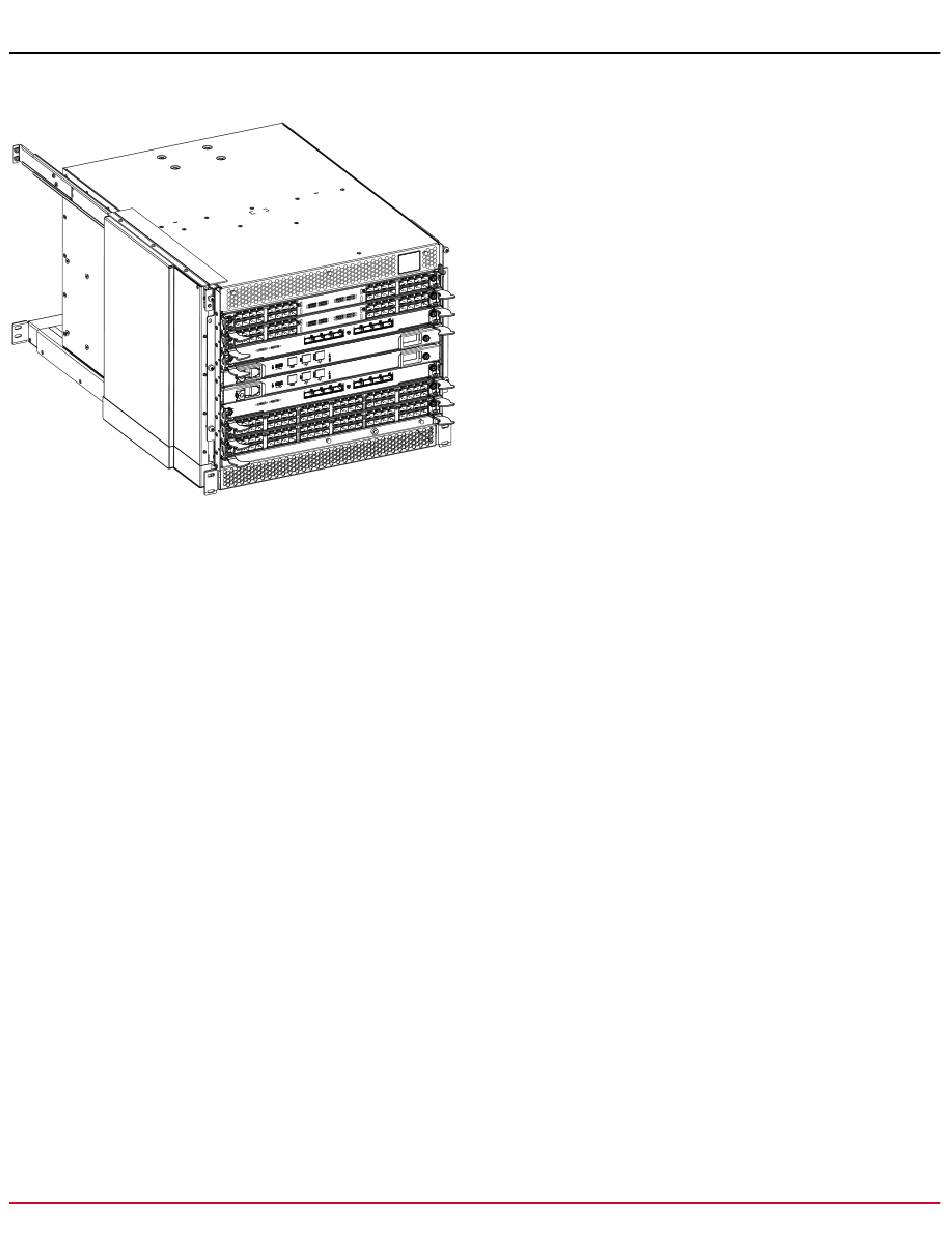

Figure 2: Port side view of Brocade DCX 8510-4 with the Airflow Diversion and Port Side Exhaust Kit installed
(sample configuration)
Nonport side view of the device
The following figure shows a sample configuration of the nonport side view of the Brocade DCX 8510-4.
