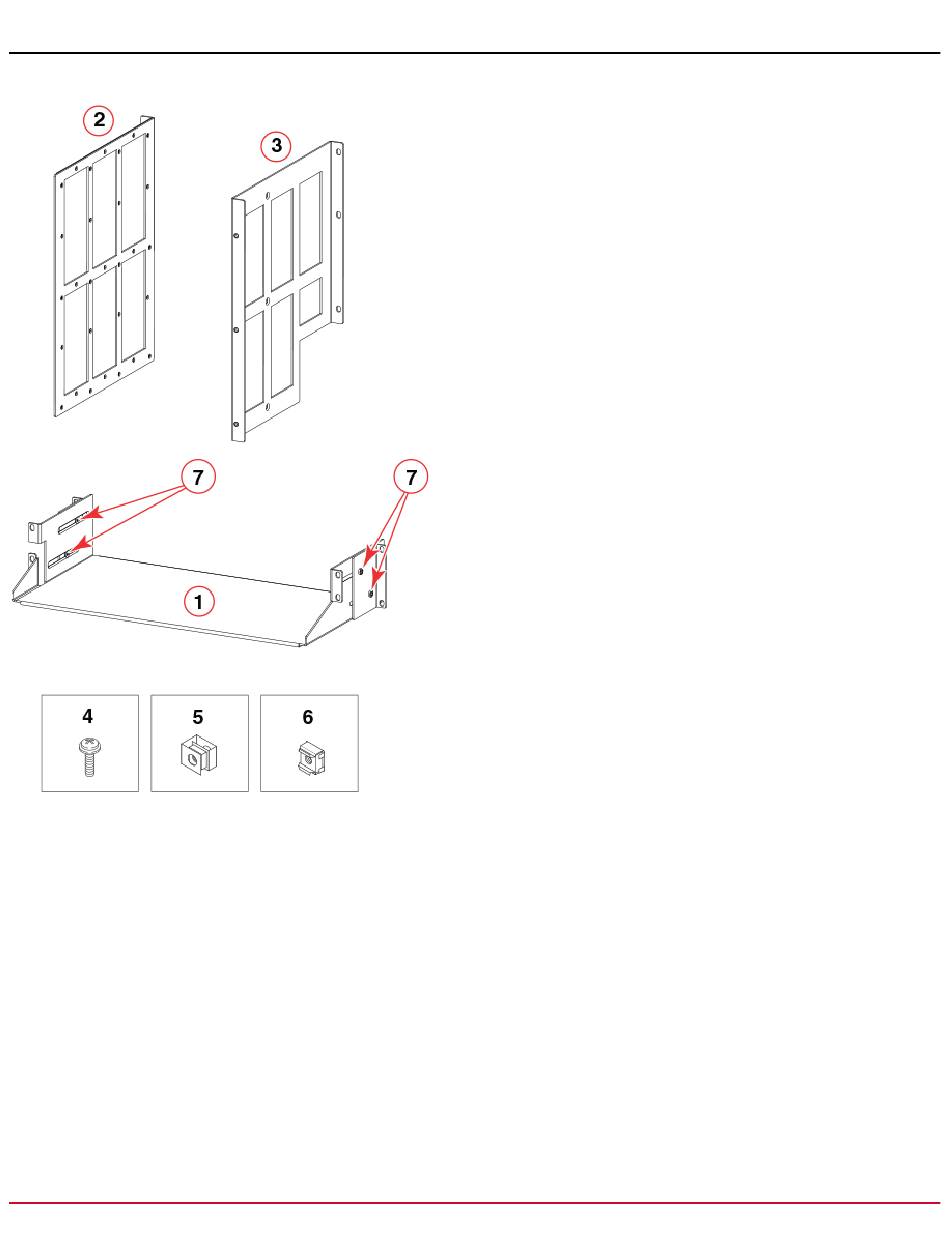

Figure 5: Rack Kit Parts (XBR-X64-0126)
1. Saddle
2. Telco Mid-Mount Mounting Bracket (left)
3. Telco Mid-mount Mounting Bracket (right)
4. 10-32 x .63 in.(1.60 cm) Phillips Screws with Square Cone Washer (for racks that have rails with round holes)
5. 10-32 Clip Nuts (for racks that have rails with round holes)
6. 10-32 Retainer Nuts (for racks that have rails with square holes)
7. Bracket Adjusting Screws
