53-1002177-19 Hardware Installation Guide

Brocade DCX 8510-4 Backbone Hardware Installation Guide

FC16-32 port blade port numbering

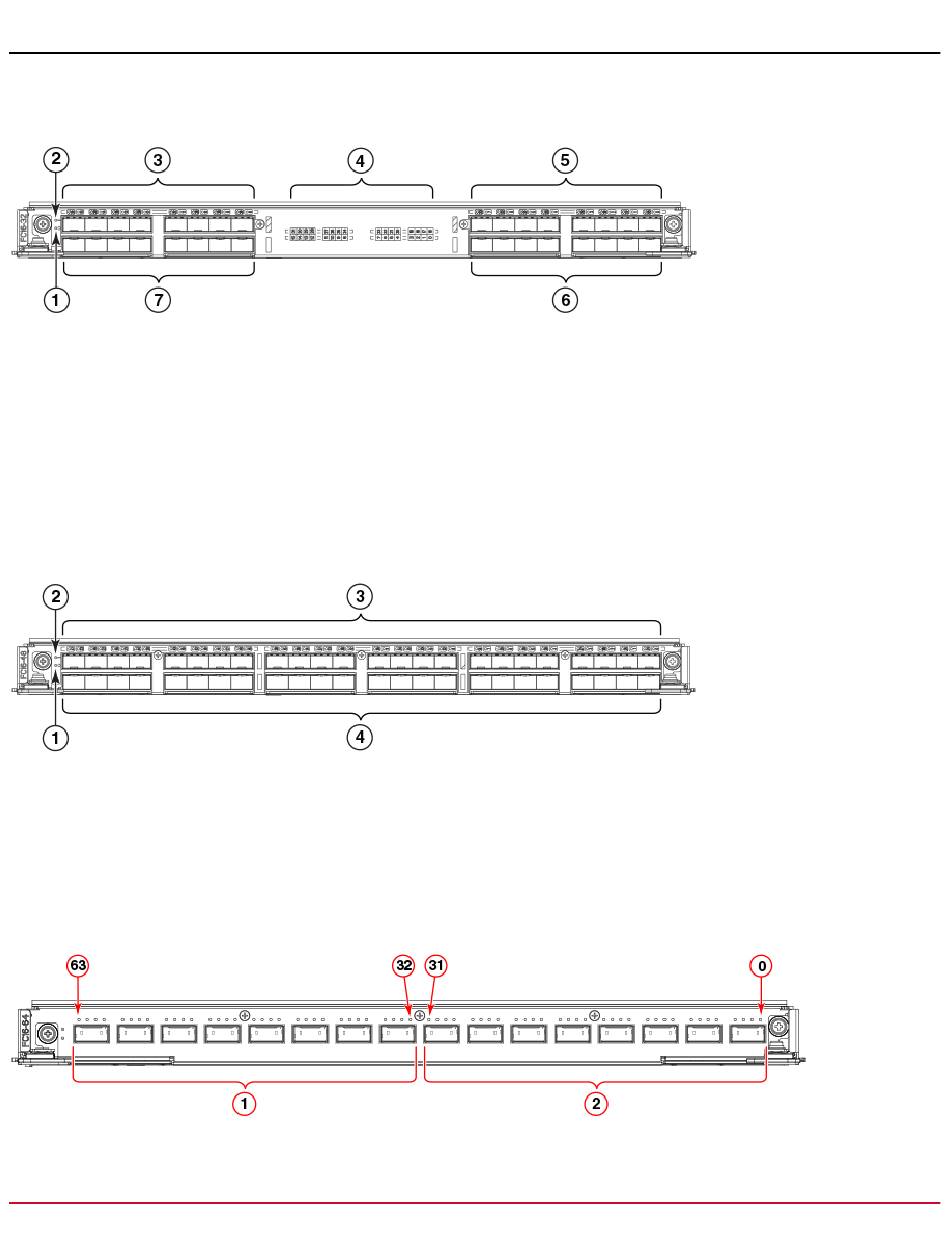

Figure 74: FC16-32 port blade port numbering

1. Blade power LED

2. Blade status LED

3. FC ports 24-31 (right to left)

4. Port and trunking group map

5. FC ports 16-23 (right to left)

6. FC ports 0-7 (right to left)

7. FC ports 8-15 (right to left)

Figure 75: FC16-48 port blade port numbering

1. Blade power LED

2. Blade status LED

3. FC ports 24-47 (right to left)

4. FC ports 0-23 (right to left)

Figure 76: FC16-64 port blade port numbering

1. QSFP ports 8-15; FC ports 32-63 (right to left)

Broadcom

53-1002177-19

158
