Installing the Device
2.4.3 Mounting the Device to a Panel
NOTICE
DIN rail mounting is not recommended for constant vibration environments.
To mount the device to a DIN rail, do the following:
1.
2.
2.4.3 Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RSG2100 can be equipped with panelDIN
rail adapters pre-installed on each side of the chassis. The adapters allow the device
to be attached to a panel using screws.
12
Align the adapters with the DIN rails and slide the device into place.
2
3
Panel/DIN Rail Adapter
1
DIN Rail
2
Screw
3

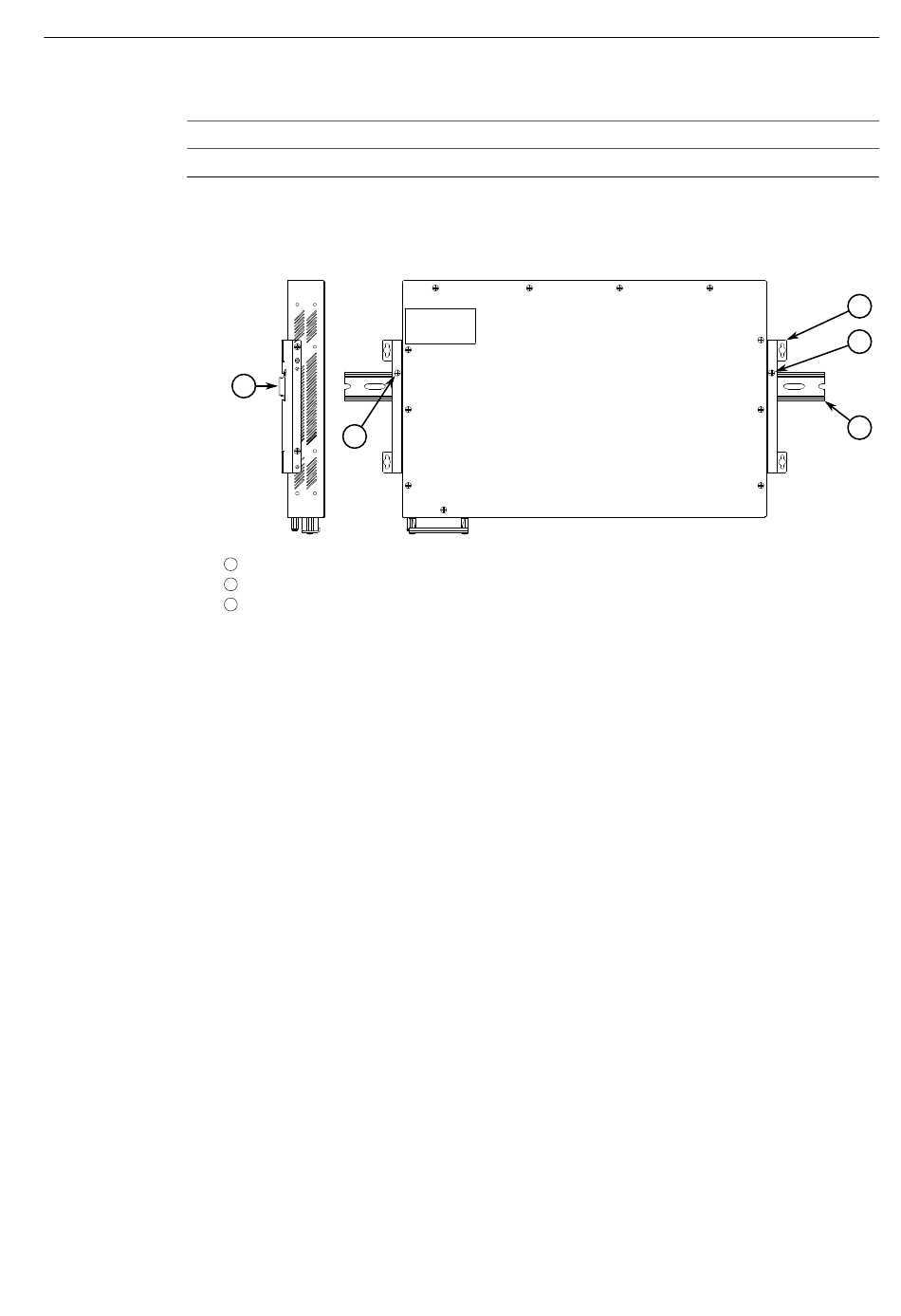

Figure 2.3 DIN Rail Mounting
Install one of the supplied screws on either side of the device to secure the
adapters to the DIN rails.
RUGGEDCOM RSG2100
Installation Manual, 03/2020, C79000-G8976-1040-17
