1.2 Description
Universal Power Supply Options
•
•
•
•
1.2

Description

The RUGGEDCOM RSG2100 features various ports, controls and indicator LEDs on the
display panel for connecting, configuring and troubleshooting the device. The dis-
play panel can be located on the rear, front or top of the device, depending on the
mounting configuration.
1
2
3
4
5
6
7

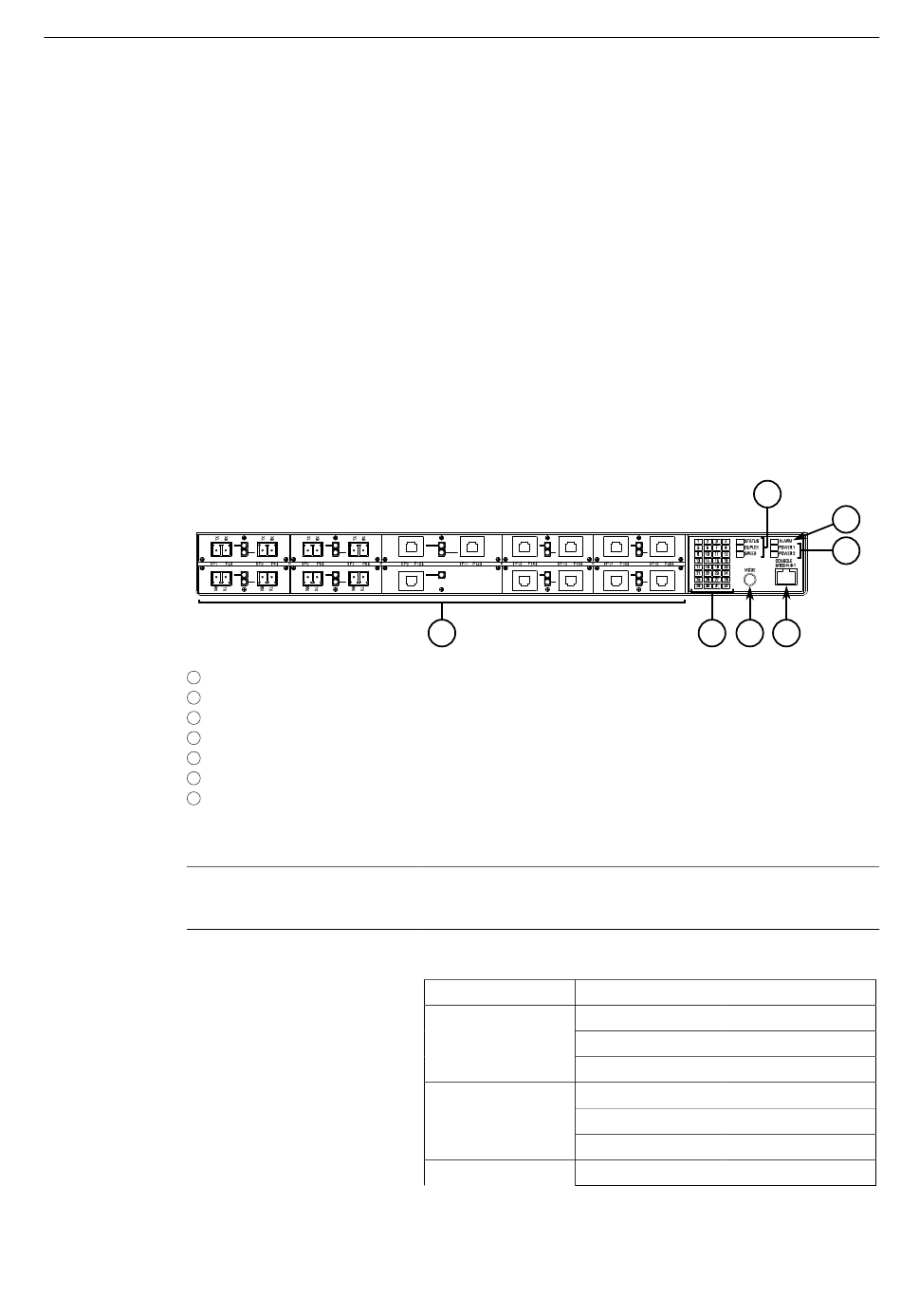

Figure 1.1
Communication Ports
Port Status Indicator LEDs
2
Fully integrated, dual-redundant (optional) power supplies
Universal high-voltage range: 88-300 VDC or 85-264 VAC
Screw or pluggable terminal blocks for reliable, maintenance-free connections
CSA/UL 60950-1 safety approved to 85 °C (185 °F)
Fiber or Copper Ethernet Ports
Port Status Indicator LEDs
Mode Button
RS-232 Serial Console Port (RJ45)
Display Mode Indicator LEDs
Alarm Indicator LED
Power Module Indicator LEDs
RUGGEDCOM RSG2100
1
Ports for communicating with other devices or accessing the
RUGGEDCOM RUGGEDCOM RSG2100 operating system are de-
scribed in "Communication Ports (Page
Port status indicator LEDs indicate the operational status of each
port, dependent on the currently selected mode.
Mode
Status Green (Solid)
Green (Blinking)
Off
Duplex Green
Orange
Off
Speed Green (Solid)
5
2 3 4
23)".
Color/State Description
Link detected
Link activity
No link detected
Full duplex mode
Half duplex mode
No link detected
100 Mbps
