Connection and
Configuration
This topics in this section are:
•
•
•
•
•
Connecting the Hardware
To connect the IPL T S interface, connect the input and output devices to the unit. Use
figure 16 as a guide.

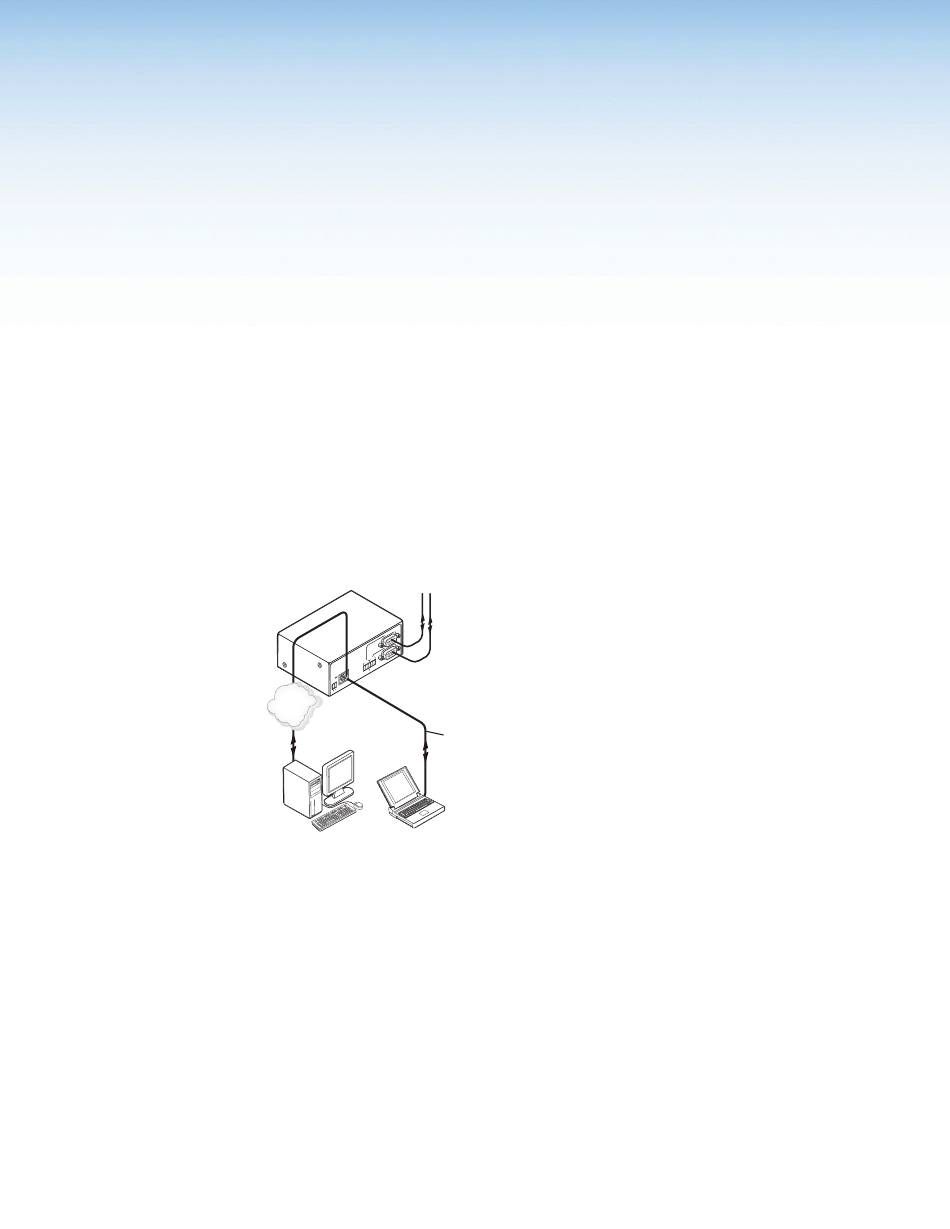

Figure 16.
Ethernet Connection
Ethernet connection is used on an ongoing basis to connect the IPL T S unit to a LAN and
to control the switching and display devices attached to the unit. To connect the unit to a
LAN, do the following:
1.
2.
3.
Connecting the Hardware
Setting the Internet Protocol (IP) Address
Configuration Using Global Configurator
Configuration using Embedded web Pages
Configuration using DataViewer
Extron
IPL T S2
Ethernet Control
Serial Cables
Interface
to Controlled Devices
(switcher, projector, etc.)
1
M
C O
2
M
C O
M 2
5 2
CO
2 0
M 1
0 1
9 3
CO
# 0
U ID
R X
N
TX
L A
R X
TX
R
W E
P O
1 2
V
X
M A
.5 A
TCP/IP
Network
or
Ethernet
Laptop
PC
IPL T S Interface Connections
Plug one end of a CAT 5, straight-through Ethernet cable into the rear panel Ethernet
connector on the IPL T S unit. See figure 2-9 in chapter 2 for RJ-45 connector wiring
information.
Plug the other end of the Ethernet cable into a network switch or hub connected to an
Ethernet LAN or to the Internet.
From your PC, launch a web browser and type in the IP address previously set up
on the IPL T S. If this has not been set up, see
Address
on page 15. This displays the System Status web page.
Crossover
Cable
Setting the Internet Protocol (IP)
IPL T S Series • Connection and Configuration
14
