Serial Connection
The IPL T S interface can be connected to any AV device that has a serial control port.
1.
2.
Setting the Internet Protocol (IP) Address
The IPL T S Series units have a factory default IP address of 192.168.254.254. This IP
address must be changed to an address that will operate on your local network.
There are three ways to change the IP address setting:
•
•
•
Before you begin:
1.
2.
3.
Connect one end of a serial cable to the rear panel COM port connector of the IPL T S
unit. As an alternative, use a 3.5 mm, 5-pole captive screw connector where available.
NOTE: This captive screw connector must be wired appropriately (see
page 10 for pin assignments).
Lighting
Control
RS-232
Extron
IPL T S4
Ethernet Control
3
M
C O
Interface
2
1
M
C O
M
C O
2
2
05
C O
M
12
30
# 09
U ID
L A
N
RS-232
W E
R
P O
V
X
12
M A
.5 A
TCP/IP
Network
RS-232
Ethernet
Remote User
Control and
Administrator
Monitoring
Laptop
DVD

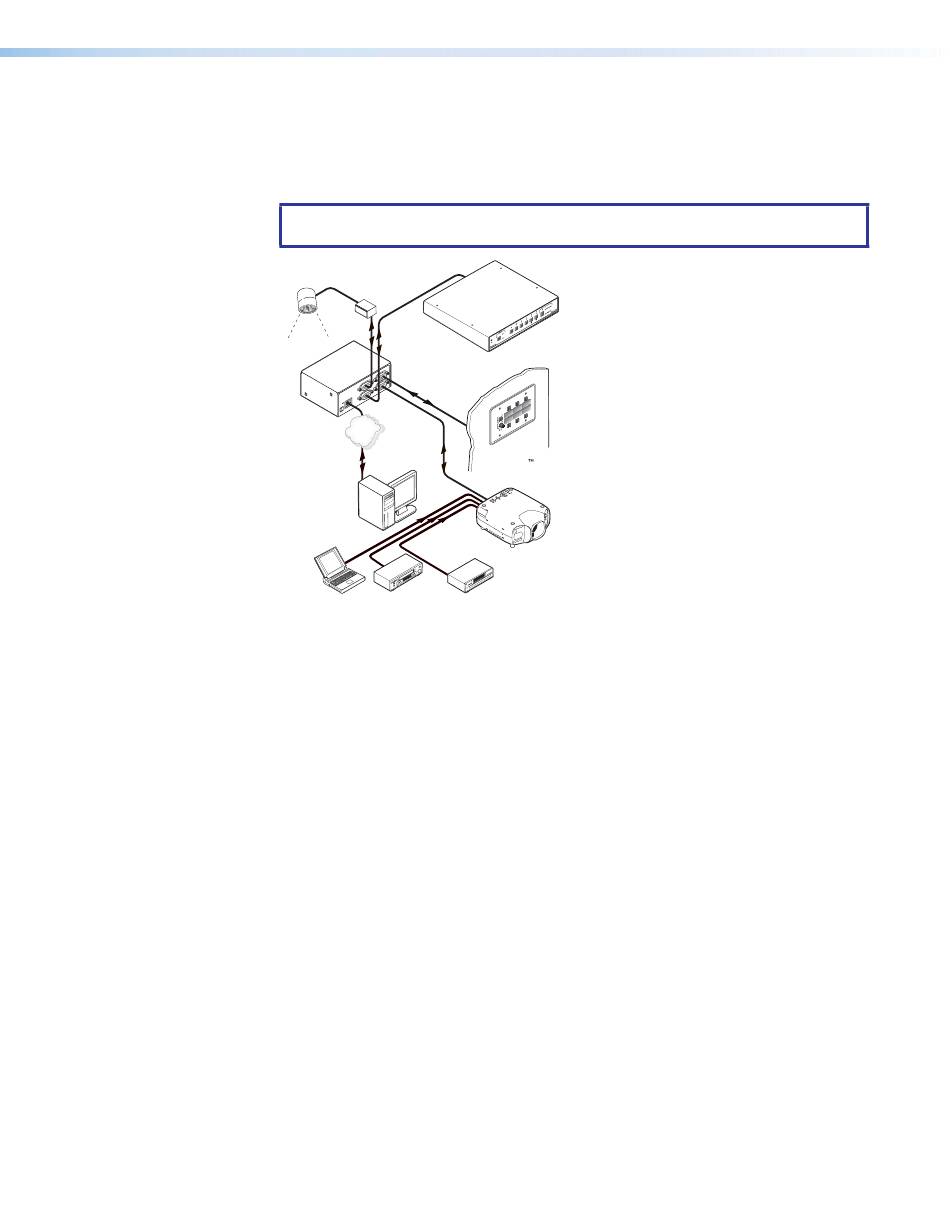

Figure 17.
Typical IPL T S Interface Operating Configuration
Connect the other end of the serial cable to the display or switching device to be
controlled through the IPL T S.
Add Device > Auto Config IP option in Global Configurator
IPL T S embedded web pages
Address Resolution Protocol (ARP) command
Obtain a valid IP address for your IPL T S Series device from your AV system network
administrator.
Write down the unit MAC address (a 12-digit number) found on a label on the rear panel
of the unit (for example, 00-05-A6-01-0A-74).
If the unit is not at the factory default IP address (192.168.254.254), perform a Mode 4
reset:
a.
Hold down the
button until the Power LED blinks twice (6 seconds), then
Reset
release.
b.
Press and release the
Reset
c.
The Power LED blinks quickly four times, confirming the Mode 4 reset, which
returns the unit to its factory default IP address.
