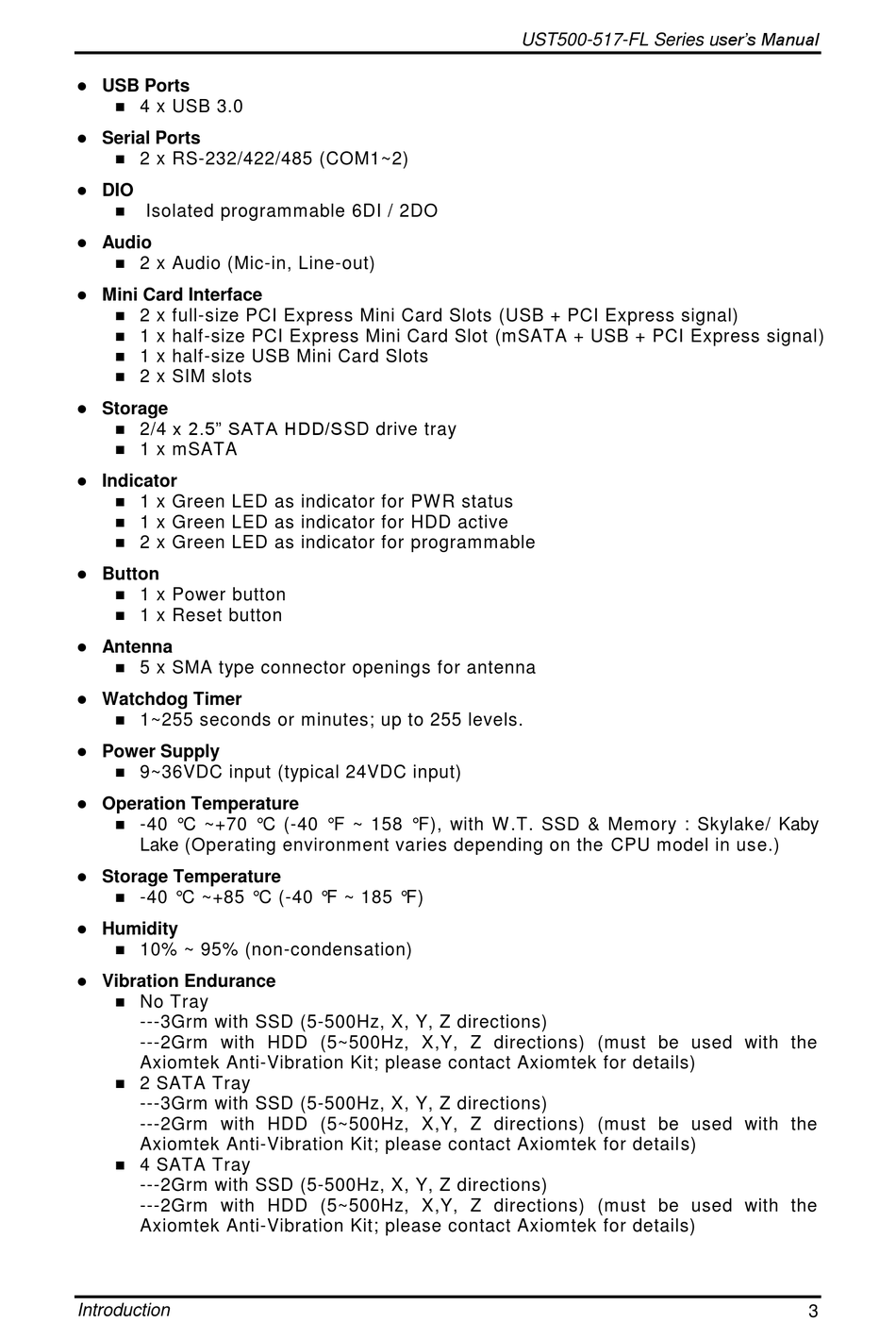

AXIOMTEK UST500-517-FL Series User Manual page 11

 USB Ports

4 x USB 3.0
 Serial Ports
 2 x RS-232/422/485 (COM1~2)
 DIO
 Isolated programmable 6DI / 2DO

Audio

2 x Audio (Mic-in, Line-out)
 Mini Card Interface
 2 x full-size PCI Express Mini Card Slots (USB + PCI Express signal)
 1 x half-size PCI Express Mini Card Slot (mSATA + USB + PCI Express signal)
 1 x half-size USB Mini Card Slots
 2 x SIM slots
 Storage
2/4 x 2.5" SATA HDD/SSD drive tray

 1 x mSATA
 Indicator
 1 x Green LED as indicator for PW R status
 1 x Green LED as indicator for HDD active
 2 x Green LED as indicator for programmable
 Button
 1 x Power button
 1 x Reset button
 Antenna
 5 x SMA type connector openings for antenna
 Watchdog Timer
 1~255 seconds or minutes; up to 255 levels.
 Power Supply

9~36VDC input (typical 24VDC input)
 Operation Temperature
 -40 °C ~+70 °C (-40 °F ~ 158 °F), with W .T. SSD & Memory : Skylake/ Kaby
Lake (Operating environment varies depending on the CPU model in use.)

Storage Temperature
 -40 °C ~+85 °C (-40 °F ~ 185 °F)
 Humidity
 10% ~ 95% (non-condensation)
 Vibration Endurance
 No Tray
---3Grm with SSD (5-500Hz, X, Y, Z directions)
---2Grm with HDD (5~500Hz, X,Y, Z directions) (must be used with the
Axiomtek Anti-Vibration Kit; please contact Axiomtek for details)
 2 SATA Tray
---3Grm with SSD (5-500Hz, X, Y, Z directions)
---2Grm with HDD (5~500Hz, X,Y, Z directions) (must be used with the
Axiomtek Anti-Vibration Kit; please contact Axiomtek for details)
 4 SATA Tray
---2Grm with SSD (5-500Hz, X, Y, Z directions)
---2Grm with HDD (5~500Hz, X,Y, Z directions) (must be used with the
Axiomtek Anti-Vibration Kit; please contact Axiomtek for details)
