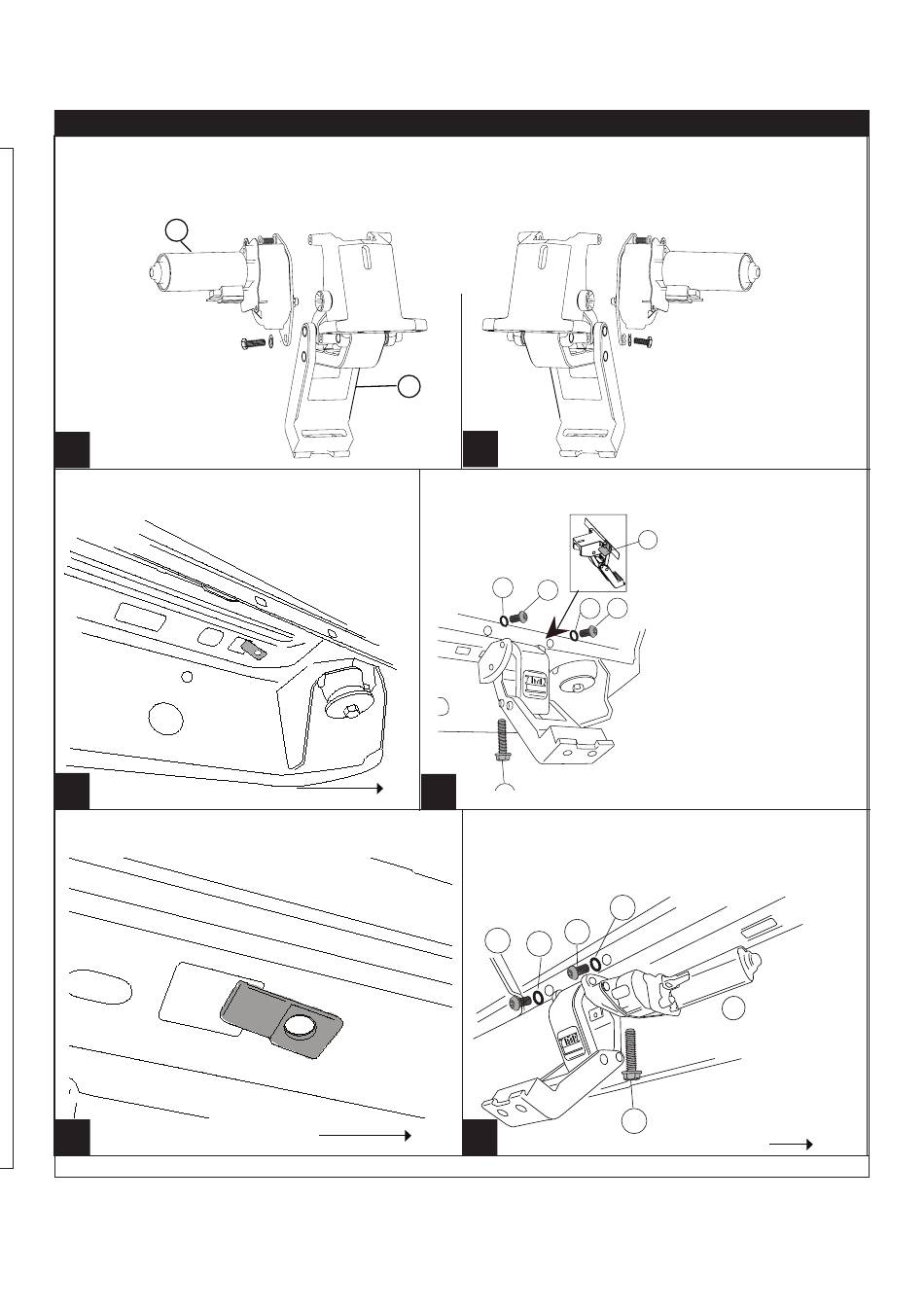

Slide motor assembly onto drive shaft and mounting bosses of driving linkage assembly. Use flathead
socket head cap screws (16) on the inner location. Next use hex bolt (23) and washer (22) on outer
location and tighten to 8 ft-lbs / 11Nm.
4
Driver side
Motor Linkage
1 1
Insert U nut into position for front Idler Link-
age mounting position.
3
Front of vehicle passenger side
Insert U nut into position for rear Drive Linkage
mounting position.
5
Front of vehicle passenger side
www.amp-research.com www.amp-research.com
Motor faces to front of vehicle
2
2
Install Front Idler Linkage assembly. Use button head
bolts with washers and Hex flange bolt Torque to 16
ft-lbs. (22N m)
12
4
4
11
Repeat linkage installation on driver side
Install Rear Drive Linkage assembly. Use
button head bolts with washers and Hex flange
bolt Torque to 16 ft-lbs. (22N m). Install light
bracket on front side of linkage as in step 4.
10
6
4/8 4/8
Passenger side
Motor Linkage
23
Note: Install light bracket
between pinch weld and
linkage mount as shown.
10
Install brackets on forward
12 10
holes of linkage.
12
10
12
11
Front of vehicle passenger side
