SERVICE MANUAL

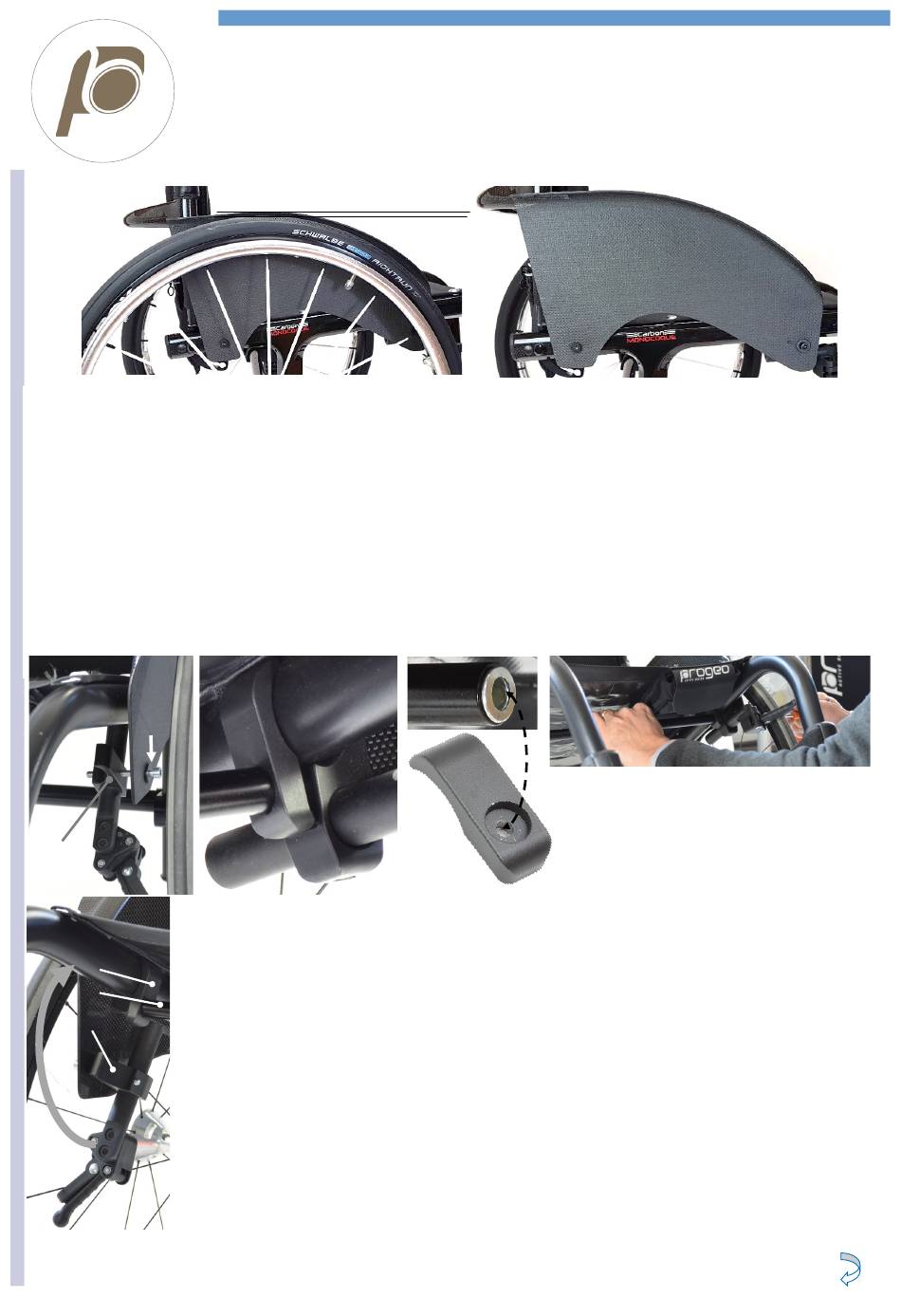

Whenever changing the rear wheel position, you have to adjust the side guard.
The side guard should be adjusted at approx. 5 mm from the tyre and it is fixed to the front frame with the bolt/washer V1 (this bolt also fixes
the backrest plate) and to the front clamp with the bolt/washer V2.
Each side guard is shaped to measure according to the configuration of the wheelchair when originally assembled.
The shape of the side guard always allow for a reasonable good margin of adaptation.
If the side guard is straight, you may leave it as it is.
Bolt V1 fixing
The bolt/washer V1 is screwed into a threaded rivet fixed to the front axle A. When removing this bolt, the front clamp, made of the inner
plate B and the brake support C (with the brake fixed to it), comes off the frame (if the axle turn when unscrewing V1, hold it with one hand).
Note: with the carbon fibre rigid seat, the axle is not present and the bolt is fixed with a nut.
V1
C
To assemble the parts, let the bolt/washer V1 through the hole of the side guard and through the hole of the
brake support C.
Position the support C on the frame.
B
Position the plate B and screw the bolt V1 into the axle A. Make sure the axle is cast into the housing of the plate.
A
While screwing the bolt V1, hold the axle A so that it will not turn and make sure the plate B is well leant against
the frame.
To fix the other side, the operation is quite the same, but it is advisable to insert the axle A into the housing of the
plate B and lean it against the frame before positioning the support C.
This operation may need a little forcing due to the pressure given by the seat canvas.
Finally, tighten the bolt V1.
REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com
SIDE GUARD
B
A
C
5 mm
V2
A
B
Note: in these pictures, the wheelchair is a Joker R2.
for the model Duke, the assembly is the same, just the
section of the frame and, thus, of the clamps changes.
V1
Follows next page
Service Manual DUKE 14
