Summary of Contents for progeo Joker

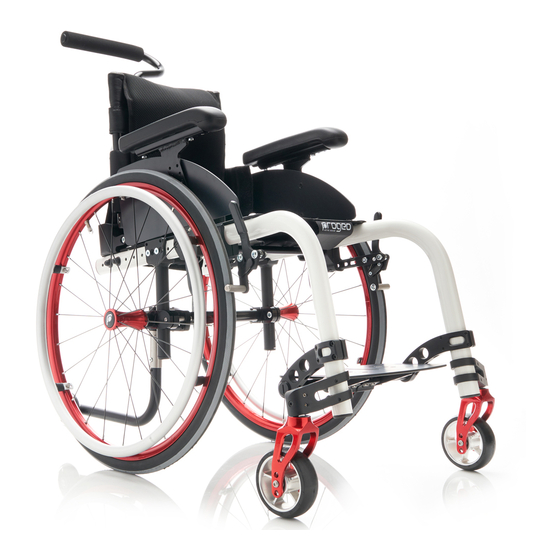

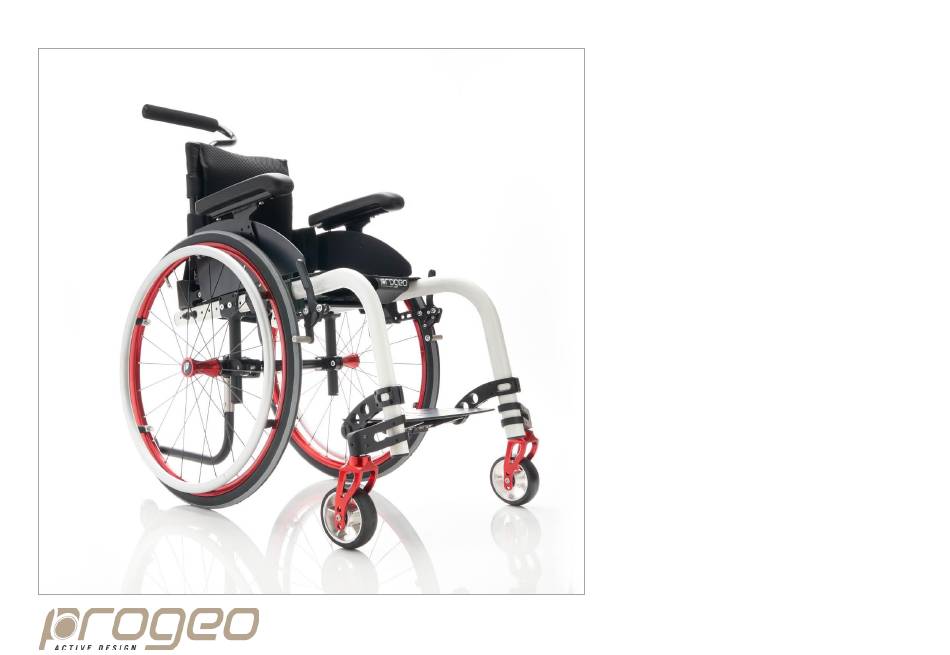

- Page 1 JOKER JUNIOR User’s manual ENGLISH - rev. 3 - 24/06/2019...
- Page 2 CE marking Crash Tested MAXIMUM LOAD (kg) Check the warranty certificate is fully filled up by the dealer Non subject to and keep it with care. Read the user’s Crash Test manual before using the wheelchair. Joker Junior...
-
Page 3: Table Of Contents
Tyre pressure Inspection of components Brakes Storage Quick release rear wheels Disposal/recycling of materials Folding/unfolding the backrest Trouble shooting guide Footplate TECHNICAL DATA Calf strap EC CERTIFICATE Adjustable backrest upholstery Armrests and side guards Fasteners Wheelchair lifetime 2.10 Joker Junior... -
Page 4: Every One Of Our High-Quality Wheelchairs
It is important that a general check of all the functional parts of the wheelchair IS CARRIED OUT BY QUALIFIED AND AUTHORISED PERSONNEL ONLY, both to The wheelchair JOKER JUNIOR is self-propelled which means that it can be moved manually by assess its suitability and to provide the user and his/her possible attendant with using the hand rims on the rear wheels. -
Page 5: Tyre Pressure
However, during normal use, they are less fluent than traditional tyres. To engage the brake, push the lever forward until it locks. To release the brake, pull the lever backward. The brake automatically goes back to its resting position. Joker Junior... - Page 6 In order to do so, pull the lever up first and then fold it forward. To put it back to the normal using position, turn the lever up and then push it down Joker Junior...
-
Page 7: Quick Release Rear Wheels
If the quick release axles are not correctly placed and fastened, they may work loose during normal use and could result in the wheel accidentally coming off, in the wheelchair overbalancing, and possibly causing injury. Joker Junior... -
Page 8: Folding/Unfolding The Backrest
The model JOKER JUNIOR is a rigid frame wheelchair and you can fold the backrest only. backward. -
Page 9: Footplate
Footplate You can easily adjust the calf strap via Velcro straps. The model JOKER JUNIOR has only one type of footplate available. It has a plate that you can flip-up backward to make transfer easier. Flipping up the footplate is a very easy operation you can perform with one hand by pulling the plate up. -
Page 10: Armrests And Side Guards
If correctly locked, the armrest does not turn but it will allow just a little play. The model JOKER JUNIOR can be equipped with TUBULAR ARMRESTS or REMOVABLE ARMRESTS. The armrests are considered as an accessory and they have to be ordered separately. -
Page 11: Fasteners
Under normal daily use the PROGEO® wheelchair has a lifetime of 5 years provided that it receives careful maintenance at the correct intervals. -
Page 12: Safety
While getting into or out of the wheelchair do not place your feet on the footplate. The Progeo® wheelchair is a medical device and therefore it MUST NOT BE This could result in the wheelchair tipping up, possibly causing harm both to the LENT NOR GIVEN TO OTHER USERS even for short period. -
Page 13: Starting To Drive Your Wheelchair
Tip the wheelchair forward until the front wheels are on top of the obstacle. Lean forward in the chair so that the rear of the chair is lighter. Hold the hand rims tightly and move the rear wheels forwards bringing them over the top of the obstacle. Joker Junior... -
Page 14: Dealing With Slopes Or Inclines
Hold on to the hand rims on the rear wheels and allow them to slide slowly through your hands. The occupant should be able to stop the wheelchair at any time simply by blocking the motion of the hand rims. Joker Junior... -
Page 15: Ensuring Stability
Ensure that the front wheels of the chair are pointing forwards. In order to do this, move the wheelchair forwards and then backwards. Do not engage the brakes. Lean backwards without changing your sitting position. Do not lean too far back over the backrest, wheelchair could overbalance. Joker Junior... -
Page 16: Trasport Of Wheelchair
The lightness and reducibility of this model are very important Finally load the rear wheels. because they allow the wheelchair to be moved easily even by those with limited physical strength. Release the brakes and remove the rear wheels. Joker Junior... -
Page 17: Trasport Of Occupied Wheelchair On A Vehicle
TRASPORT OF OCCUPIED WHEELCHAIR ON A VEHICLE 2. There should be sufficient space available around the wheelchair, The wheelchair JOKER JUNIOR is designed in compliance with so that the restraint belt and fasteners are accessible and can be requirements of ISO 7176-19:2008 for transport of patient sitting on tightened or released again. -
Page 18: Safety Belts For Wheelchair User - Instructions
13. In order to reduce the potential of injury to vehicle occupants, wheelchair-mounted trays not specifically designed for crash test Correct should be removed and secured separately in the vehicle, or be position secured to the wheelchair but positioned away from the occupant Joker Junior... - Page 19 FIG. H FIG. E 4. Il The restraint belt symbol (Fig. F) on the wheelchair frame shows the position of the wheelchair restraint belt. Once the front belts have been fitted, the belts are tightened to secure the wheelchair. Joker Junior...
- Page 20 In this case, it is recommended to ask for a risk analysis/evaluation by the health carer or other competent people. Joker Junior...
-
Page 21: General Description Of Parts
11 Fork support 12 Fork 13 Front wheel 14 Brake 15 Front axle 16 Tubular armrest and backrest support 17 Rear axle 18 Footrest plate 19 Footplate support 20 Bracciolo estraibile 21 Ant—tipper 22 Calf strap 23 Tubular armrest Joker Junior... -
Page 22: Adjustment
ADJUSTMENTS The PROGEO® JOKER JUNIOR wheelchair is a medical device based on the patient detailed POSSIBLE ADJUSTMENTS specifications that are reported on the original order form filled in by qualified personnel. • Rear height We strongly advise users against lending the wheelchair to other users even •... -
Page 23: Accessories
When you turn the anti-tip wheel by 180° (opposite position), the support automatically locks (the or down accidentally. part A locks in the part B). Before pushing the wheelchair, make sure the two tubes are safely locked. Rehateam s.r.l. cannot be responsible for any damage or injury due to neglecting this warning. Joker Junior... -
Page 24: Push Handlebar For Attendant
Before pushing the wheelchair, make sure the tube T is securely locked. Rehateam s.r.l. cannot be responsible for any damage or injury due to neglecting this warning. Joker Junior... -
Page 25: Pelvic Belt And Harness
Once seated in the chair with the belt or harness in place the occupant can close the buckles by fastening the two parts together. Both belts can be easily adjusted by pulling the extremities of their bands. Joker Junior... -
Page 26: Rear Wheels
Hand rims According to the functional and/or aesthetical needs, you can choose among different rear wheels For this model of PROGEO wheelchair, special hand rims are available. According to the functional and/or aesthetical needs, you can choose among different rear wheels These hand rims with special features ensure improved grip, and therefore a more efficient pushing available for this model. -
Page 27: Tyres
Should the side guard be of the type “mudguard”, these are originally fixed with its edge at approximately 5 mm above the tyre to prevent the user from inserting his/her fingers between tyre and mudguard. Joker Junior... -
Page 28: Tetraclip
MAINTENANCE For any questions relating to the adjustment and maintenance of your PROGEO wheelchair, the experienced technical staff at RehaTEAM are at the complete disposal of all our clients. You can contact us directly at the address below: Periodic inspection of the wheelchair is vital to guarantee maximum performance and a long life. A ®... -
Page 29: Replacements Of Worn Parts
• Upholstery: textile with expanded foam • Packaging: plastic bags made of soft polyethylene, cardboard Contact your authorized disposal center for disposal or recycling. Alternatively, the wheelchair can be returned to the retailer for disposal. Joker Junior... -
Page 30: Technical Data
(sliding system adjustment) aluminium frame 90° 100° declares that the product defined as FRONT FRAME ANGLE carbon fibre frame 90° 95° WHEELCHAIR FOR DISABLED PEOPLE, PROGEO SERIES, Seat width + 170 mm TOTAL WIDTH (with 0° camber) TOTAL LENGTH JOKER JUNIOR 750 mm approx. - Page 31 WARRANTY With reference to our production line that is labelled with the marks PROGEO and PHYSIO, being these products manufactured to measure and with artisanal and not industrial procedures, minor imperfections, minor imprecisions on colours and The warranty agreement exists only between RehaTEAM® s.r.l. and its authorised carbon fibre weaves are not to be considered as defects.
- Page 32 By RehaTEAM® Srl Vicolo Negrelli, 5 – 31040 Castagnole di Paese (TV) Italy Tel. +39 0422 484657 ra Fax +39 0422 484661 http//www.rehateamprogeo.com progeo@rehateamprogeo.com WARRANTY CERTIFICATE Medical device Class 1 directive 93/42/EEC s.m.i ULTRA LIGHT WHEELCHAIR Place of production: Castagnole di Paese (TV) - ITALY...
