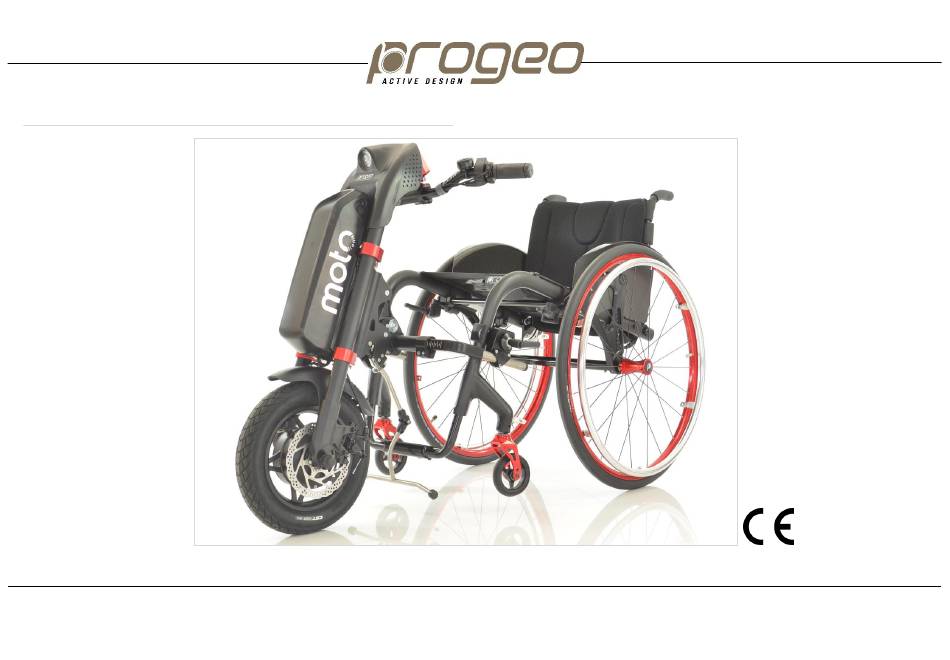

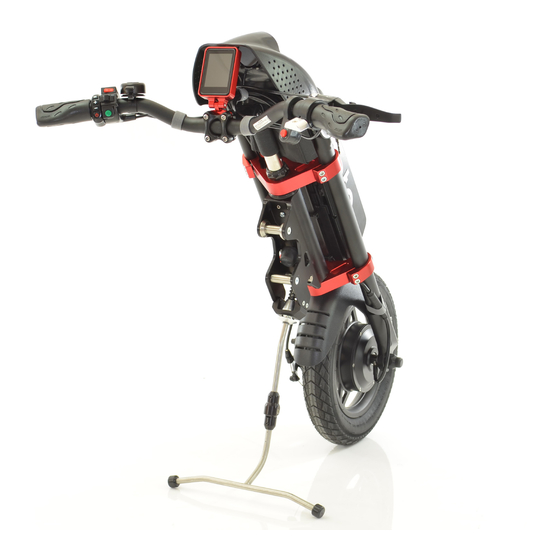

- Page 1 ELECTRONIC POWER ASSIST DEVICE FOR MANUAL WHEELCHAIRS MOTOTRONIK User's manual ENGLISH – rev. 1 – 11/2021...
-
Page 2: Table Of Contents
Removing the connection frame ..............20 TROUBLESHOOTING GUIDE..............36 11.5 Removing the motor unit coupled to the connection frame ......20 TECHNICAL DATA ..................37 11.6 Stand ......................21 DISPOSAL/RECYCLING OF MATERIALS ..........38 USER INTERFACE ..................22 WARRANTY ....................39 Mototronik... -
Page 3: Introduction
If the company's stamp and signature on the warranty certificate is missing, the warranty on the product is void. Products of the MOTOTRONIK range are intended for patients whose visual, cognition and reading capacities are not impaired. Consequently, the dealer must ensure the patient's suitability. -
Page 4: Preliminary Information
This document is subject to change on the basis of technical innovations without notice. For technical and safety information, you can contact a Progeo dealer. You can find the addresses of Progeo dealers on our website www. rehateamprogeo.com in the “OUR DISTRIBUTORS” area. Mototronik... -
Page 5: Symbols Used
Indicates important instructions or special information. property damage. Do not disperse in the environment. Recycling. Trapping hazard PRODUCT LABEL UDI code (Unique Device Logo brand Progeo Year/month of production Identification) [type] Product name Serial number Read the user’s manual... -
Page 6: Intended Use And Environment Of Use Of The Device
MOTOTRONIK devices are classified for use with wheelchairs to which they are coupled pursuant to UNI EN 12184. MOTOTRONIK devices are also compliant with the requirements of class B with a maximum range of about 50 km (for the version with a charged 11.6 Ah battery, on a flat course and a user weighing 75 kg). -
Page 7: Installation Of The Device
Rehateam s.r.l. from any responsibility for any malfunctioning and/or damage due to such adjustments/modifications. You will find the instructions on how to properly install the device in MOTOTRONIK’s SERVICE MANUAL that is available on the website www.rehateamprogeo.com SAFETY: WARNINGS AND PRECAUTIONS This User's Manual is an integral part of the device and must always be available to the user. - Page 8 It can be difficult to manoeuvre in front of a lift or in front of the entrance of a Before each use of your MOTOTRONIK device, make sure that the braking building as the steering diameter of the wheelchair increases when it is coupled system (disc brake and electric brake) is effective.
- Page 9 U-turn on slopes of more than 5% (3°) and at a speed higher than gear 1. See figure 2 below. The use of a MOTOTRONIK device in a way in which it is not coupled to a It is forbidden to attempt to climb or descend a staircase.
- Page 10 The use of MOTOTRONIK devices for the transport of more than one person is Do not leave the battery in the sun or in adverse weather when not in use. not allowed. Do not use the supplied battery to power systems other than the MOTOTRONIK Do not throw the battery in water.
-
Page 11: Description Of Parts
21. Electronic brake button 22. Acceleration lever 23. "Tetra" handlebar 24. Arm (ambidextrous) 10 11 12 13 25. Arm's fixing clamp 26. Coupling block 27. Connection frame's central tube 28. 12" motorised wheel 29. 14" motorised wheel 30. Battery charger Mototronik... -
Page 12: Battery And Battery Charger
Despite this classification, they are considered, according to the UN Recommendations on the Transport of Dangerous Goods, as dangerous material and classified as Class 9, respectively as code UN3480 (Lithium Ion Batteries) if transported as single units and UN3481 (Lithium Ion Batteries Contained in Equipment) if transported while connected to the MOTOTRONIK device. -
Page 13: Fitting And Removing The Battery
(2) to remove the battery, insert and turn the key, take hold of the battery and slide it upward. Before each MOTOTRONIK driving session, make sure the battery is locked to If the battery is not locked by means of the locking pin, it may detach and fall to the support, then remove the key and store it in a safe space. -
Page 14: Battery Charger And Charging
We suggest keeping the battery charger away from heat sources, in a dry place and protected from sun rays. • 48V 11.6 Ah (556.8 Kw/h) • 48V 5.8 Ah (278.4 Kw/h) • 48V 2.9 Ah (Fly) (139.2 Kw/h) 100-240V 50Hz Mototronik... -
Page 15: Warnings For The Battery And Battery Charger
The device is equipped with a protection plate that prevents the user from Never use the device with an empty battery. charging the battery while it is mounted on the device. It is forbidden to remove this plate from the device. Mototronik... -
Page 16: Coupling And Removing The Device
(3) clamps (fixed to the frame) The pictures refer to a MOTOTRONIK 12" STANDARD and they are to be considered valid for other models, too. The reported instructions are intended for a user with good trunk control, good upper-limb control and no control of the lower limbs. -
Page 17: Coupling The Connection Frame
Screw the lock levers making sure the washers perfectly fit the round housings F in the coupling forks. Finally, firmly tighten the two lock levers. For greater safety, during each session of use of the MOTOTRONIK, check the fixing of the levers A. In fact, if the levers A were loosened, the system could even suddenly detach from the wheelchair. -
Page 18: Coupling The Motor Unit To The Connection Frame
Check that the front wheels are between 3 and 5 cm above the ground. Before starting to drive the MOTOTRONIK, always check the system is securely locked as mentioned above. Failure to comply with this warning may cause serious damage or injury for which Rehateam s.r.l. cannot be held responsible. -
Page 19: Removing The Motor Unit From The Connection Frame
While removing the MOTOTRONIK, pay maximum attention to the safety of the upper limbs (fingers, hands, arms) as they may be affected by the abrupt movement of the handlebar (or other parts of the device) if it is released too quickly. To avoid such danger, after pressing the release button, gently release the handlebar by lowering the wheelchair gently. -
Page 20: Removing The Connection Frame
This operation, although possible and expected, wears more on the coupling forks and Perform this operation very carefully to avoid unbalancing or even falling off the half-moon-shape blocks. Please note that the warranty does not apply to parts subject wheelchair. to wear and tear. Mototronik... -
Page 21: Stand
Uneven terrain (e.g., with holes) or sharp manoeuvring (e.g., fast handlebar wrong position, the stand may impede the motor unit from coupling with the rotation) could cause the motor unit to fall. connection frame. Rehateam s.r.l. cannot be held responsible for damages due to non-compliance with these warnings. Mototronik... -
Page 22: User Interface
Any action and/or tampering of the display to modify the performance and the security features of the device is strictly prohibited. The sole and only actions possible are those specified in the sub-chapters of this chapter. Mototronik... -
Page 23: Control Tools
Headlight (if installed) on/off button. Selection buttons Cruise Control (green button) Forward/reverse gear (black switch) Setting button No function (red switch) Bell EBS electronic brake (red button) Accelerator lever Disc brake lever 1-2-5 3-4-6 Handlebar push&pull to brake and accelerate Mototronik... -
Page 24: Switching On/Off The Display
To start driving in reverse gear, it is always necessary to press the accelerator button all the way down, then release it, and finally press it to move at speed within the set limits that are very small compared to the forward gear. The maximum reverse gear speed is adjustable, see chapter 13. Mototronik... -
Page 25: Accelerator
To operate the parking brake, press the brake lever, rotate lever A towards the brake lever and release the brake lever. To release the parking brake, press the brake lever, push the A lever forward and release the brake lever. Mototronik... -
Page 26: Ebs (Electronic Brake System)
EBS (Electronic Brake System) This feature slows down the MOTOTRONIK device by electrically reducing its speed. During EBS braking, the energy produced will be recovered and used to recharge the battery. When the lightning symbol appears next to the battery symbol on the display, it means that the battery receives the charge. -
Page 27: Settings
SETTINGS You can change some operative parameters of the MOTOTRONIK and of the display by working on the display itself. All parameters shown are written in English. To access and modify the setting of the parameters: Press and hold the "M" button for at least 3 seconds to enter the settings menu. - Page 28 Even if you enter this setting, the ON and OFF values have no Serial number Viewing only. effect. Shows the serial number of the MOTOTRONIK control unit. NOT ACTIVE Serial number Torque Control Even if you enter this setting, the ON and OFF values have no Software release Viewing only.
-
Page 29: Tyre Pressure
TYRE PRESSURE To always ensure correct braking and fluidity characteristics of the MOTOTRONIK device, it is necessary that the tyre is always well inflated. Remove, with your fingers, the plastic cap, which covers the inflation valve placed on the rim of the wheel. -
Page 30: Transport In The Car
TRANSPORT IN THE CAR To load the MOTOTRONIK device into the car, the device and battery must be turned off and it is advisable to disassemble all removable parts. Hereafter, you will find the recommended sequence of operations to be carried out. -
Page 31: Cleaning
If the electrical parts get wet, let them dry and do not use the device until they are thoroughly dry. ACCESSORIES The accessories with which the MOTOTRONIK device can be equipped are exclusively those present in the order form. The use of any accessory other than those on the order form shall void the product warranty. -
Page 32: Removable Basket
(2) To remove it, press the C button, slightly swing the basket upwards and pull it off. Before detaching the motor unit from the wheelchair, it is recommended to The maximum load of the basket is 7 kg. empty the basket to avoid dropping the device. Mototronik... -
Page 33: Removable Ballasts
DO NOT use a ballast only on one side; in fact, this would unbalance the Ballast weight: 2.2 kg each. steering and could result in loss of control of the vehicle. Before detaching the motor unit from the wheelchair, it is recommended to remove both ballasts to avoid dropping the device. Mototronik... -
Page 34: Twist Throttle
Range of the extension: from + 130 to 21 mm every 20 mm. 17.8 Carrying bag Protects the device during transport and/or storage. The connecting frame and the stand must be disassembled (see chapters 11.4 and 11.6) and inserted into the bag separately. Mototronik... -
Page 35: Maintenance
STORAGE If the MOTOTRONIK device is not used for a medium-long period (over 4 months), store it clean in a dry and covered place and inside a box (preferably that of the original packaging). It is also advisable to switch off and remove the battery from the device. At the time of re-use, it is necessary to carry out a general check of the wheelchair following the same points of chapter 18. Before using the MOTOTRONIK device, reread the instructions of chapter 11 and carry out a precautional driving test to check that there are no defects. -
Page 36: Troubleshooting Guide
21 Motor Control Error / Master Echo mismatch fault 22 Motor Control Error / Master Parameter out of range 23 Canbus fault Do not use the MOTOTRONIK device whenever it behaves abnormally; in such a case, immediately contact Rehateam s.r.l. or an authorised reseller. Mototronik... -
Page 37: Technical Data
During a long storage period, check the battery charge level and charge it at least once a month. With charged battery, flat course, and user weighing 75 kg. Before you start using the battery again after a long storage period, fully charge the battery. User's weight plus wheelchair weight. Mototronik... -
Page 38: Disposal/Recycling Of Materials
DISPOSAL/RECYCLING OF MATERIALS When the MOTOTRONIK device is to be disposed of (end of life of the product), it is necessary to consider any local regulations in force for waste disposal or recycling. Below, a description of the materials used. -
Page 39: Warranty
Rehateam s.r.l. reserves the right to carry out technical modifications to its products, which it deems necessary without prior notification. Mototronik... - Page 40 Tel. +39 0422 484657 ra -Fax +39 0422 484661 http//www.rehateamprogeo.com info@rehateamprogeo.com Certified company TÜV Rheinland in compliance with directive UNI CEI EN 13485:2016 Place of production: Castagnole di Paese (TV) ITALY DISTRIBUTOR / DEALER PRODUCT LABEL Date of delivery to user: ___________________________ Stamp of distributor / dealer Mototronik...
