1 Determine the spot on the wall to mount the AP. Pick a spot near the ceiling, but in reach of the
Ethernet cable and if you are using external power, near a wall power outlet.
2 To mount the AP directly on the wall with two screws, use the provided template and mark the two
drill holes on the wall. In drywall, the drill holes should be 6mm in diameter.
3 Drill two holes in the wall to match the center of the two keyhole slots in the back of the AP bracket.
4 Screw the anchors into the holes until they are flush with the wall.
5 Screw the provided mounting screws into the anchors with the head protruding about 5/32" from
the anchor to the top of the screw.

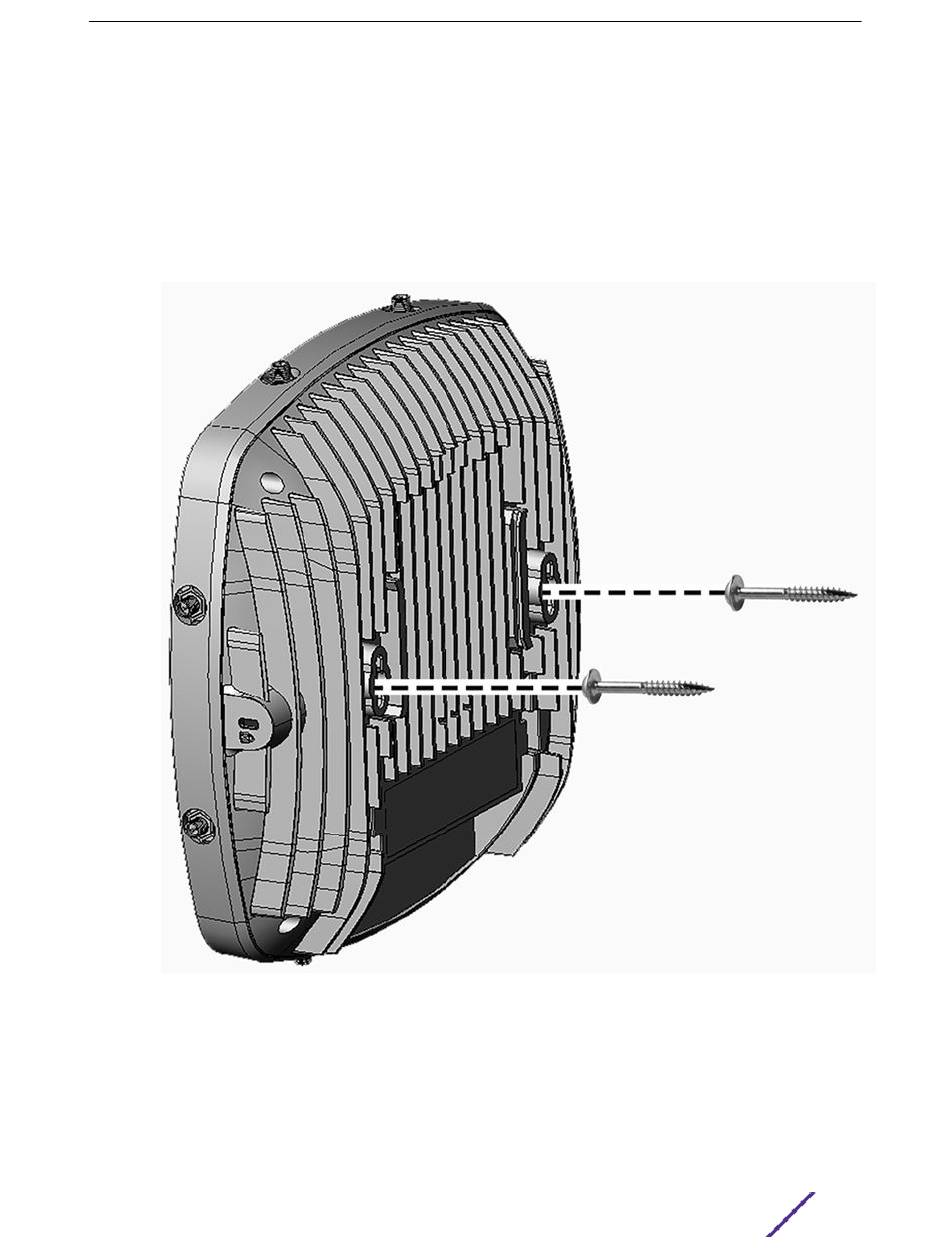

Figure 8: Mounting the AP3935 to a Flat Wall
6 Place the back of the AP against the wall with the protruding mounting screw heads fitting through
the keyhole slots on the back of the AP. Slide the AP down until the AP rests on the mounting screw
heads.
