Extreme Networks ExtremeWireless AP3935i Installation Manual page 25

3 Click the AP button in the left pane, then in the Wireless AP list, click the Wireless AP whose
properties you want to modify.
The AP Properties tab displays Wireless AP information.
4 Click the Radio 1 tab.
5 Max Tx Power is automatically determined based on regulatory domain/country, antenna selected,
line attenuation configured, channel and certification testing.

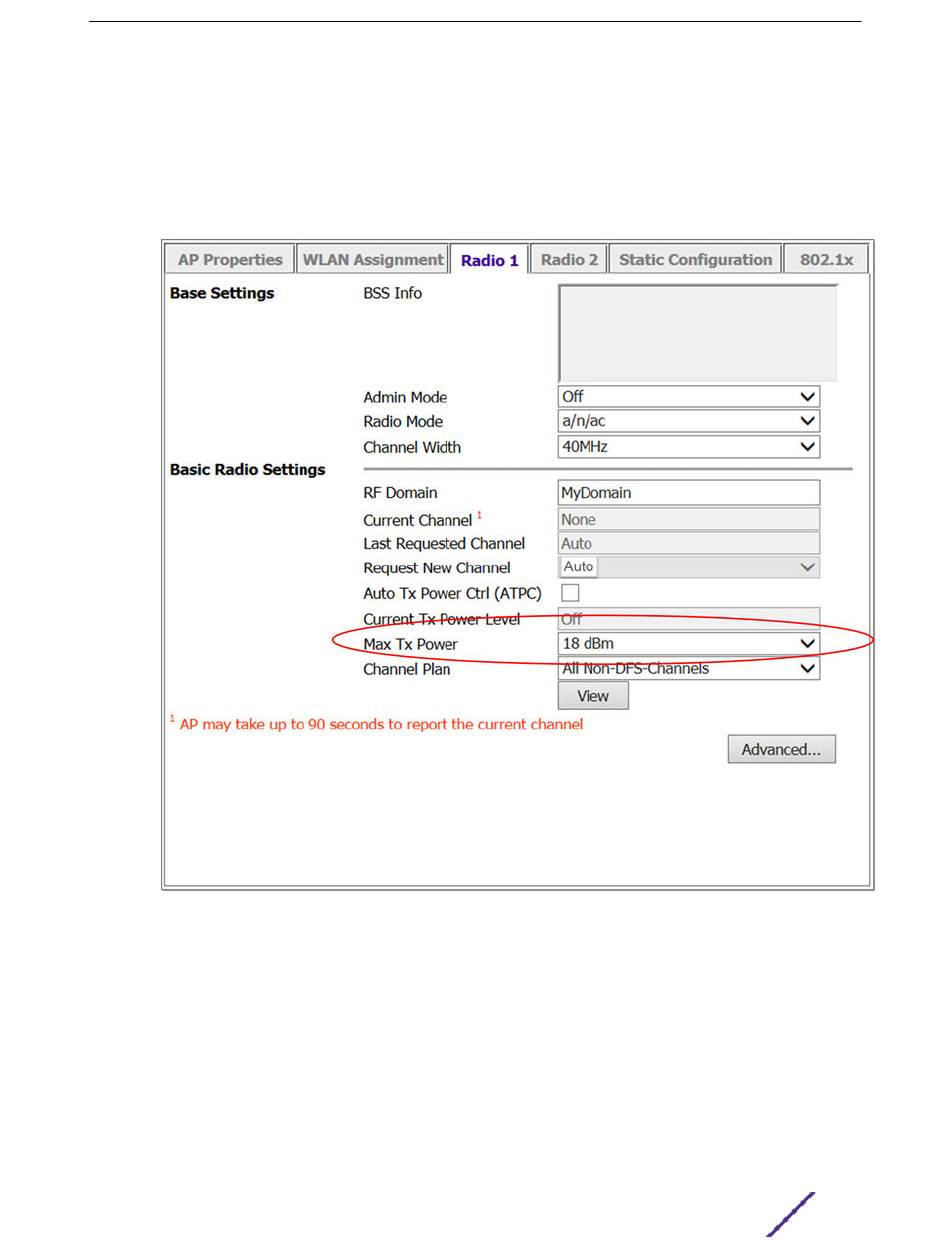

Figure 15: AP3935e Radio 1 Properties — Max TX Power setting
6 The professional installer is responsible for accurately configuring port Attenuation. Port attenuation
should never be configured higher than the actual attenuation between the AP port and the
antenna.
7 Repeat the process for Radio 2.
ExtremeWireless™ AP3935i & AP3935e Installation Guide
Installation
25
