Introduction

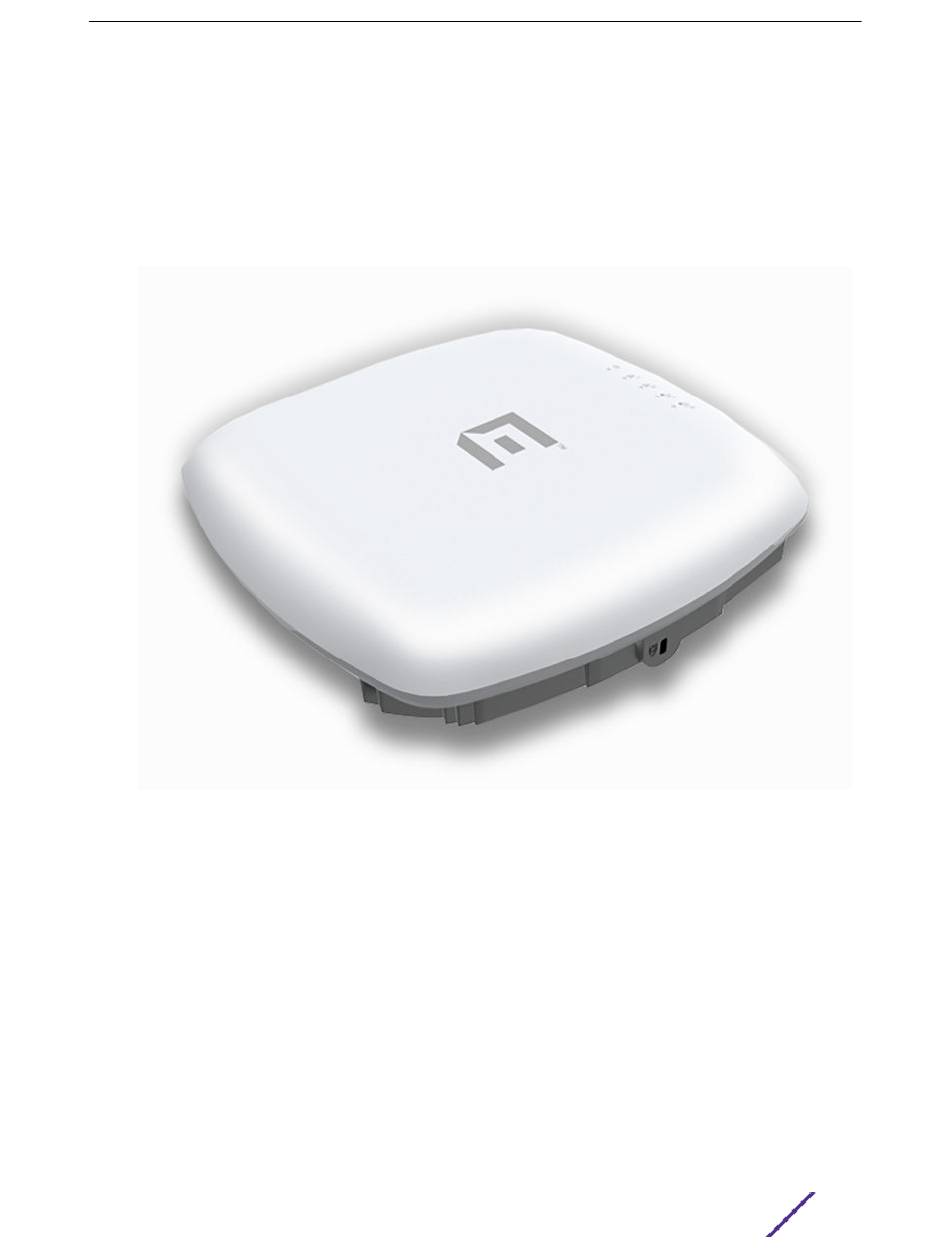

Figure 1: ExtremeWireless AP3935i Top View
and
Figure 2: ExtremeWireless AP3935e Top View
on page
10 show the top view of each model.
Figure 3: AP3935 Bottom View
on page 11 shows the location of the LAN ports, console port, external
power supply connector, and reset switch.The bottom panel is the same for both models, but there are
no external antenna RSMA connectors on the AP3935i.
Figure 4: AP3935 LEDs
on page 11 illustrates the LEDs on the AP3935.
Figure 1: ExtremeWireless AP3935i Top View
ExtremeWireless™ AP3935i & AP3935e Installation Guide
