3 Slightly lift the movable T-bar locking tab to increase the space between the stationary and the
movable T-bar sides of the bracket. Then hook the stationary end of the T-bar bracket onto the T-
bar, as shown in
4 While holding the AP with one hand, reach the other hand over the T-bar and grasp both the
stationary and movable sides of the bracket. Push the bracket parts together so they both grasp the
T-bar and the locking tab clicks into place.
5 While still holding the AP, rock it back and forth to ensure that it is securely mounted.

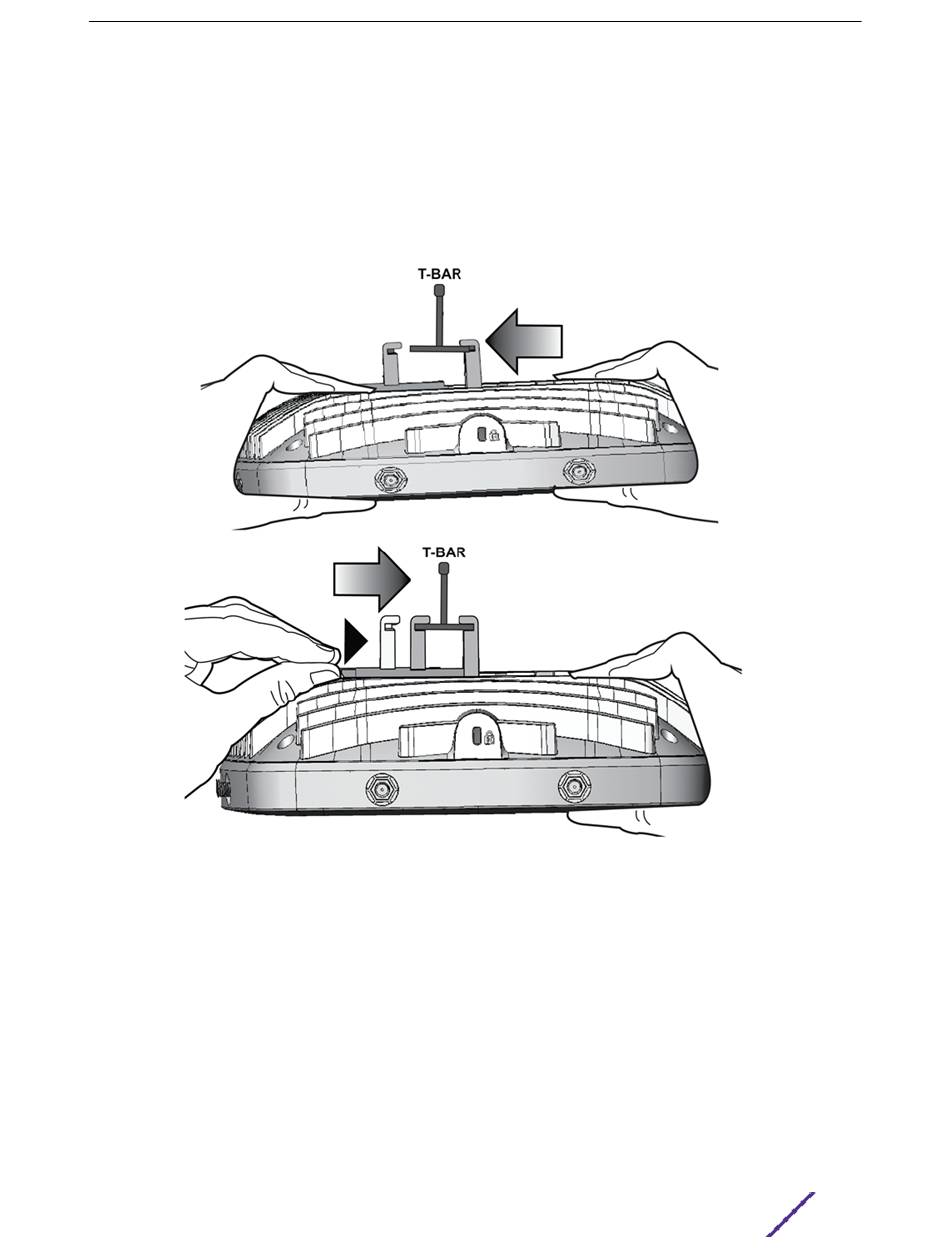

Figure 7: Attaching the AP3935i on a Drop Ceiling T-bar Rail
6 Make a hole through the ceiling panel closest to the power slot on the AP. Run the Ethernet cable
through the hole and into an RJ45 LAN port in the recessed connector bay.
7 If necessary, cut the tiles for the cables, attach the cables to the AP, and replace the tiles.
8 Replace the displaced ceiling panels.
Mounting the AP3935 to a Wall
Screws for attaching the AP to a wall are supplied with the product. Use the following procedure to
mount the AP3935 to a flat wall:
ExtremeWireless™ AP3935i & AP3935e Installation Guide
Figure 7: Attaching the AP3935i on a Drop Ceiling T-bar Rail
Installation
on page 16.
