the D area. Press a colour button in the D area to select that colour.

Use the "X" button to increase the intensity of the selected colour.

Use the "Y" button to decrease the intensity of the selected colour.

Use the "STROBE", "FADE" or "FLASH" buttons to switch on or off the strobe, fade or step mode.
When a function is selected, the "X" and "Y" buttons will adjust the speed of the effect rather than
the intensity of colours.

Press the "SMOOTH" button, will clear all the remote control setting and fixture will black out.

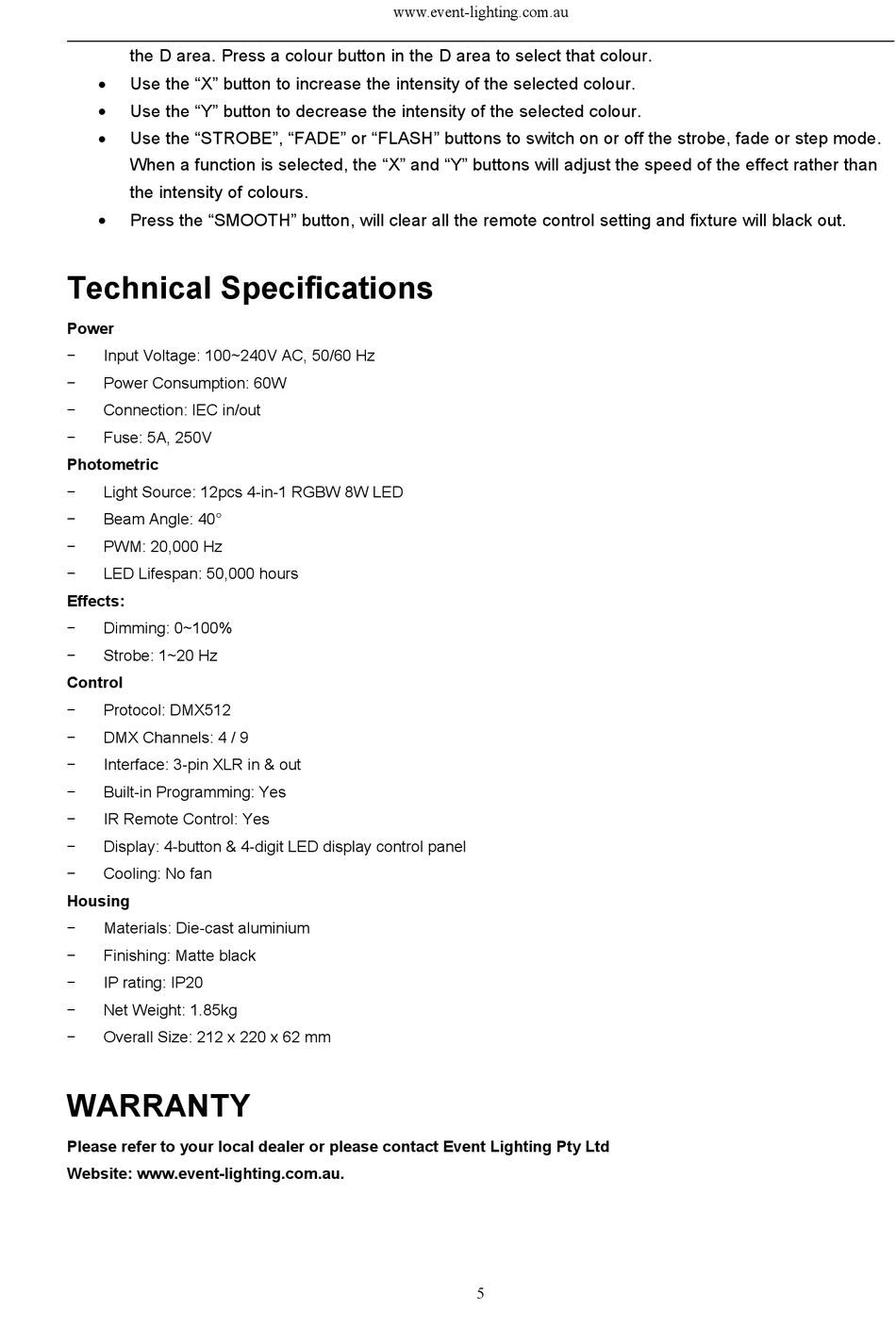

Technical Specifications

Power

− Input Voltage: 100~240V AC, 50/60 Hz
− Power Consumption: 60W
− Connection: IEC in/out
− Fuse: 5A, 250V

Photometric

− Light Source: 12pcs 4-in-1 RGBW 8W LED
− Beam Angle: 40°
− PWM: 20,000 Hz
− LED Lifespan: 50,000 hours

Effects:

− Dimming: 0~100%
− Strobe: 1~20 Hz

Control

− Protocol: DMX512
− DMX Channels: 4 / 9
− Interface: 3-pin XLR in & out
− Built-in Programming: Yes
− IR Remote Control: Yes
− Display: 4-button & 4-digit LED display control panel
− Cooling: No fan

Housing

− Materials: Die-cast aluminium
− Finishing: Matte black
− IP rating: IP20
− Net Weight: 1.85kg
− Overall Size: 212 x 220 x 62 mm

WARRANTY

Please refer to your local dealer or please contact Event Lighting Pty Ltd
Website: www.event-lighting.com.au.
