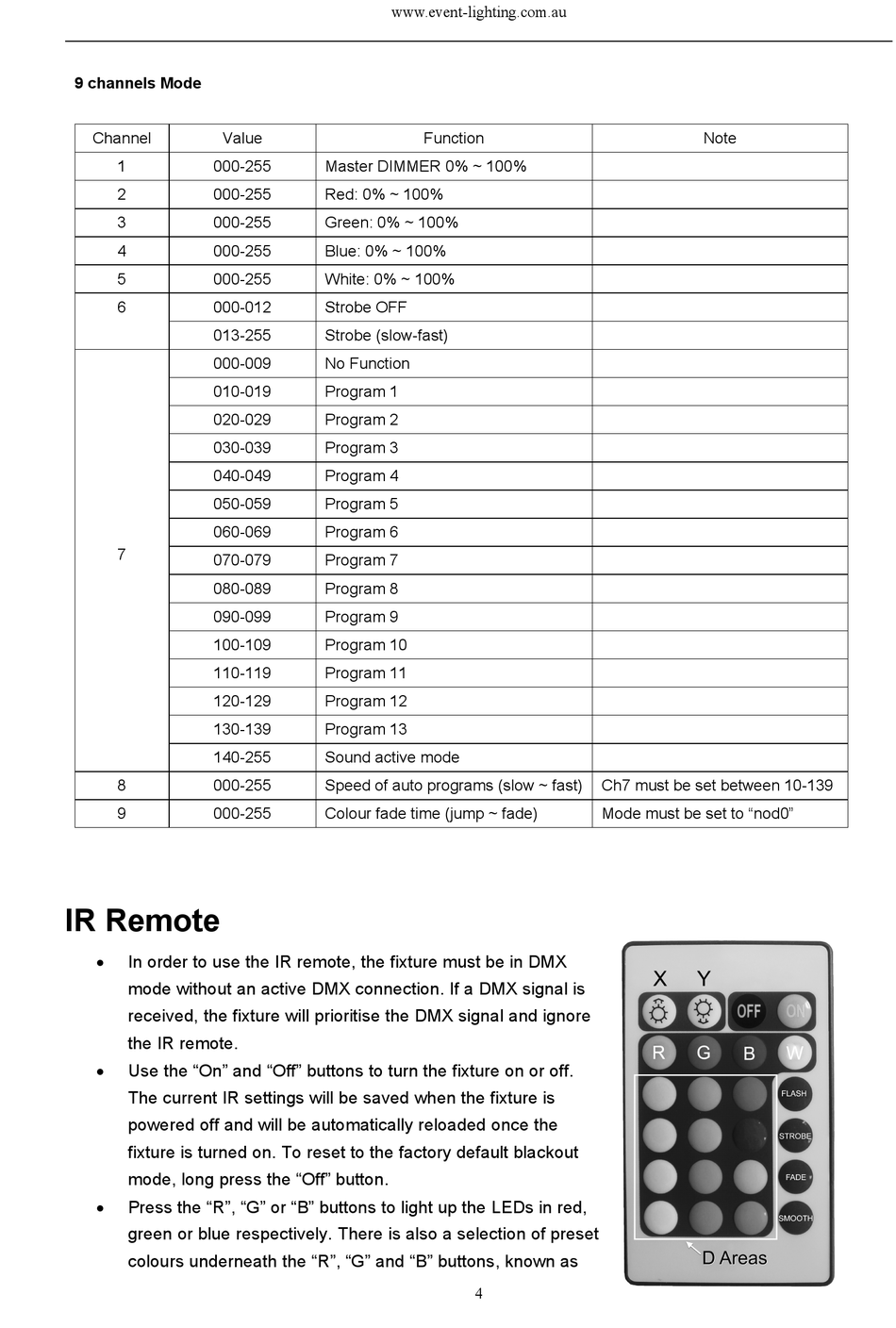

9 channels Mode

Channel Value
1 000-255
2 000-255
3 000-255
4 000-255
5 000-255
6 000-012
013-255
000-009
010-019
020-029
030-039
040-049
050-059
060-069
7
070-079
080-089
090-099
100-109
110-119
120-129
130-139
140-255
8 000-255
9 000-255

IR Remote


In order to use the IR remote, the fixture must be in DMX
mode without an active DMX connection. If a DMX signal is
received, the fixture will prioritise the DMX signal and ignore
the IR remote.

Use the "On" and "Off" buttons to turn the fixture on or off.
The current IR settings will be saved when the fixture is
powered off and will be automatically reloaded once the
fixture is turned on. To reset to the factory default blackout
mode, long press the "Off" button.

Press the "R", "G" or "B" buttons to light up the LEDs in red,
green or blue respectively. There is also a selection of preset
colours underneath the "R", "G" and "B" buttons, known as
www.event-lighting.com.au
Function
Master DIMMER 0% ~ 100%
Red: 0% ~ 100%
Green: 0% ~ 100%
Blue: 0% ~ 100%
White: 0% ~ 100%
Strobe OFF
Strobe (slow-fast)
No Function
Program 1
Program 2
Program 3
Program 4
Program 5
Program 6
Program 7
Program 8
Program 9
Program 10
Program 11
Program 12
Program 13
Sound active mode
Speed of auto programs (slow ~ fast)
Colour fade time (jump ~ fade)
4
Note
Ch7 must be set between 10-139
Mode must be set to "nod0"
