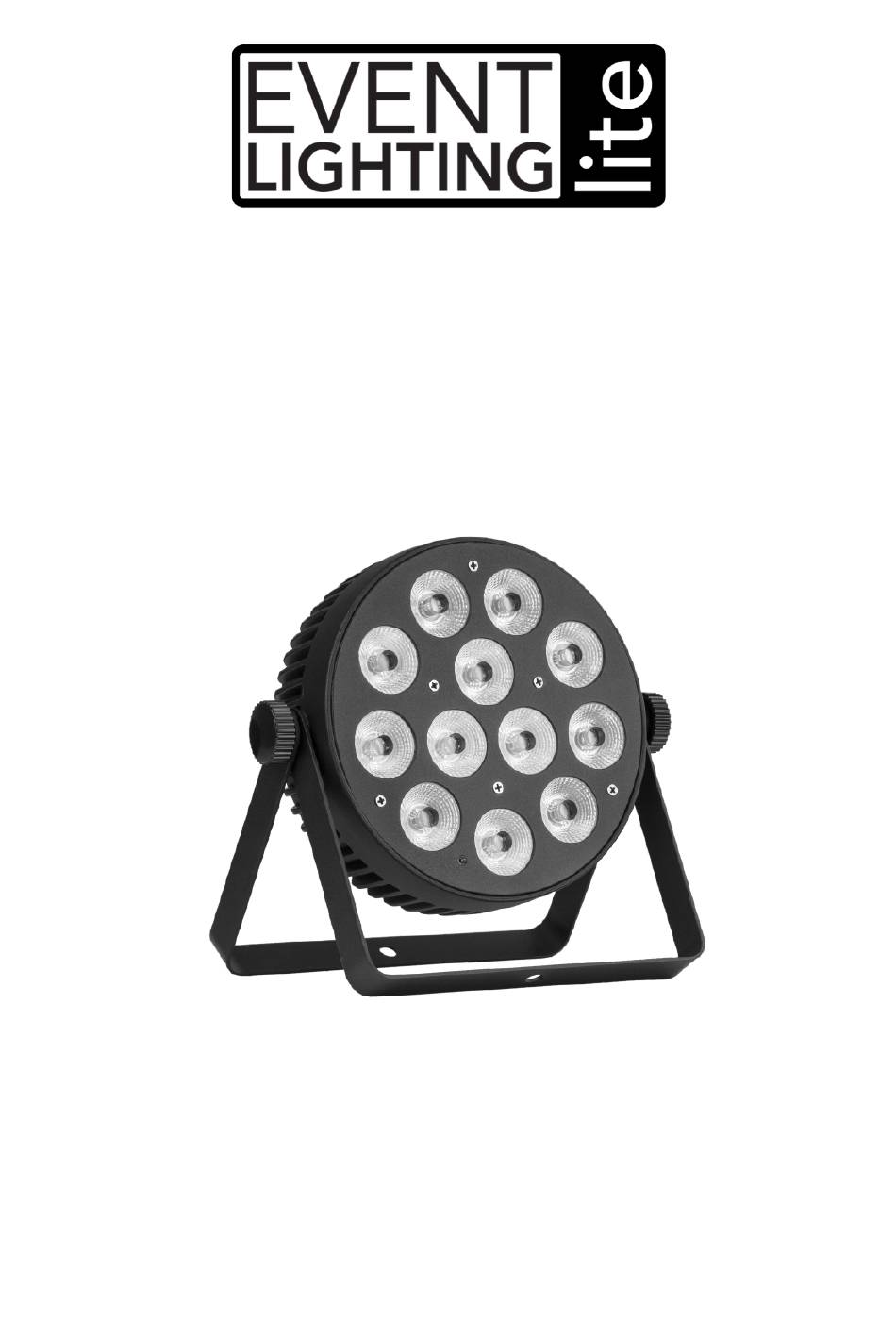

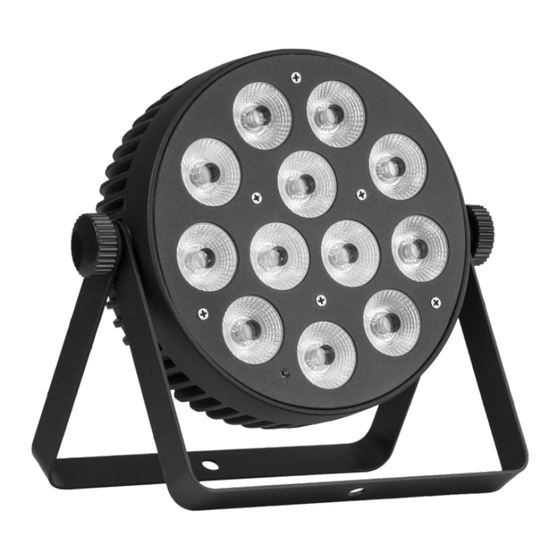

PAR12X8L
12x 8W RGBW 4-in-1 LED PAR
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version 1.1 – 23/10/2019 (revised 05/11/2020)
Advertisement
Table of Contents
Related Manuals for Event Lighting PAR12X8L
Summary of Contents for Event Lighting PAR12X8L
- Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 4. Place the fuse holder back into the housing and secure tightly. Product Installation PAR12X8L can be mounted in many orientations, provided each individual device is secured by the use of the correct mounting bracket. Use a safety chain when mounting PAR9X15O...
- Page 3 www.event-lighting.com.au Dimensions Lux Chart...
- Page 4 www.event-lighting.com.au Control Board Operation Menu Map -> Select DMX address -> Select DMX channel mode (CH-1: 4ch / CH-2: 9ch) -> Set program speed -> Select built-in program -> Select sound active mode -> Select static colour mode (See static colour mode chart below) ->...
- Page 5 www.event-lighting.com.au Red+White Green+White Blue+White Green+Blue Red+Blue Red+Green Red+Green+Blue Green+Blue+White Red+Blue+White Red+Green+White Red+Green+Blue+White DMX Chart 4 Channel Mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100%...
- Page 6 Use On/Off to turn PAR12X8L on or off. The current IR settings will be saved automatically when PAR12X8L is powered off and reloaded when it is turned on again. To reset to the factory default Blackout mode, long press Off.
- Page 7 • Connection: IEC in/out Control • Operation Modes: DMX, manual, auto, sound active, IR remote, master/slave • DMX channels: 4/9 Housing • Cooling: Fanless Cooling • Net weight: 1.85kg Warranty Please refer to your local dealer or contact Event Lighting.
