Technical Specifications - Transition Networks E-100BTX-FX-05 User Manual

E-100BTX-FX-05(10x)
Cable Specifications
Copper Cable
Category 5:
Gauge:
Attenuation:
Maximum Cable Distance:
• Straight-Through OR Crossover cable may be used.
• Shielded Twisted-Pair (STP) OR Unshielded Twisted-Pair (UTP) may be used
• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .
• RJ-45 Pin-out: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-
• Use only dedicated wire pairs for the active pins:
(e.g., blue/white & white/blue, orange/white & white/orange, etc.)
• Do not use flat or silver satin wire.

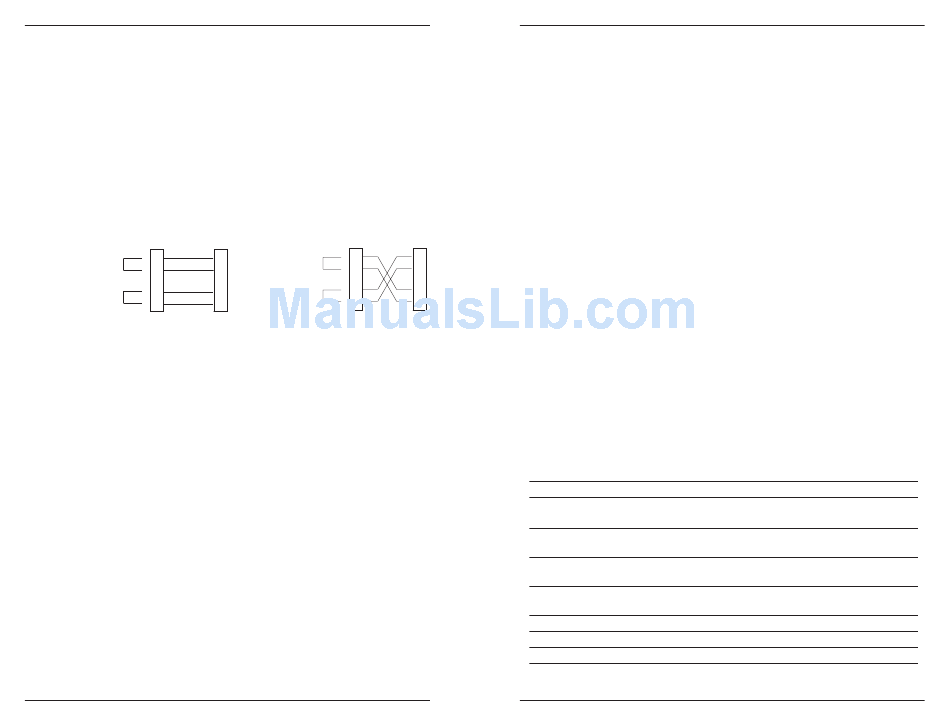

Straight-Through Cable
1
Twisted Pair #1
2
3
Twisted Pair #2
6
8 Tech Support: 800-260-1312 International: 952-941-7600 7am-6pm CST (GMT-6:00)
-- Continued
24 to 22 AWG
22.0 dB /100m @ 100 MHz
100 meters
Crossover Cable
1
1
Twisted Pair #1
2
2
3 3
Twisted Pair #2
6 6

Technical Specifications

For use with Transition Networks Model E-100BTX-FX-05(10x) or equivalent
Standards:
Data Rate:
Dimensions:
Weight:
MTBF
Power Consumption:2.8 Watts, 200 mA
Power Supply:
DC Output
Environment:
1
2
3
Warranty:
6
*Manufacturer's rated ambient temperature.
Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,
Subchapter J applicable at the date of manufacture.
CAUTION: Visible and Invisible Laser Radiation When Open. Do Not Stare
Into Beam Or View Directly With Optical Instruments.
CAUTION: Use of controls, adjustments or the performance of procedures
other than those specified herein may result in hazardous radiation exposure.
Optional Accessories
Part Number Description
SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone
SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-back;
E-MCR-03
WMBL
WMBV
WMBD
WMBD-F
techsupport@transition.com -- Select the "Transition Now" Link for a Live Web Chat
IEEE 802.3™
100 Mb/s
4.7" x 3.0" x 1.0" (119mm x 76mm x 25mm)
6 oz. (181 g) (approximate)
46,768 hours (MIL217F2 V5.0) (MIL-HDBK-217F)
123,821 hours (Bellcore7 V5.0)
12 VDC, 0.4 A (minimum)
minimum output regulation: 5%
Connector: 2.1mm barrel, center pin positive
Tmra*: 0 to 50°C (32 to 122°F)
Storage Temperature: -20 to 85°C (-4 to 185°F)
Humidity: 5 to 95%, non condensing
Altitude: 0 to 10,000 feet
Lifetime
(sold separately)
Output: 12.6VDC, 1.0 A
Output: 12.6VDC, 1.0 A
12-Slot Media Converter Rack (includes universal internal power
supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)
Optional Wall Mount Brackets
Length: 4.0 in. (102 mm), Fits converter length: 4.7in. (119mm)
Optional Vertical Mount Bracket; Length: 5.0 in. (127 mm)
Optional DIN Rail Mount Bracket; Length: 5.0 in. (127 mm)
Optional DIN Rail Mount Bracket (flat); Length: 3.3in. (84 mm)
