Deployment & Installation
Mounting Hardware

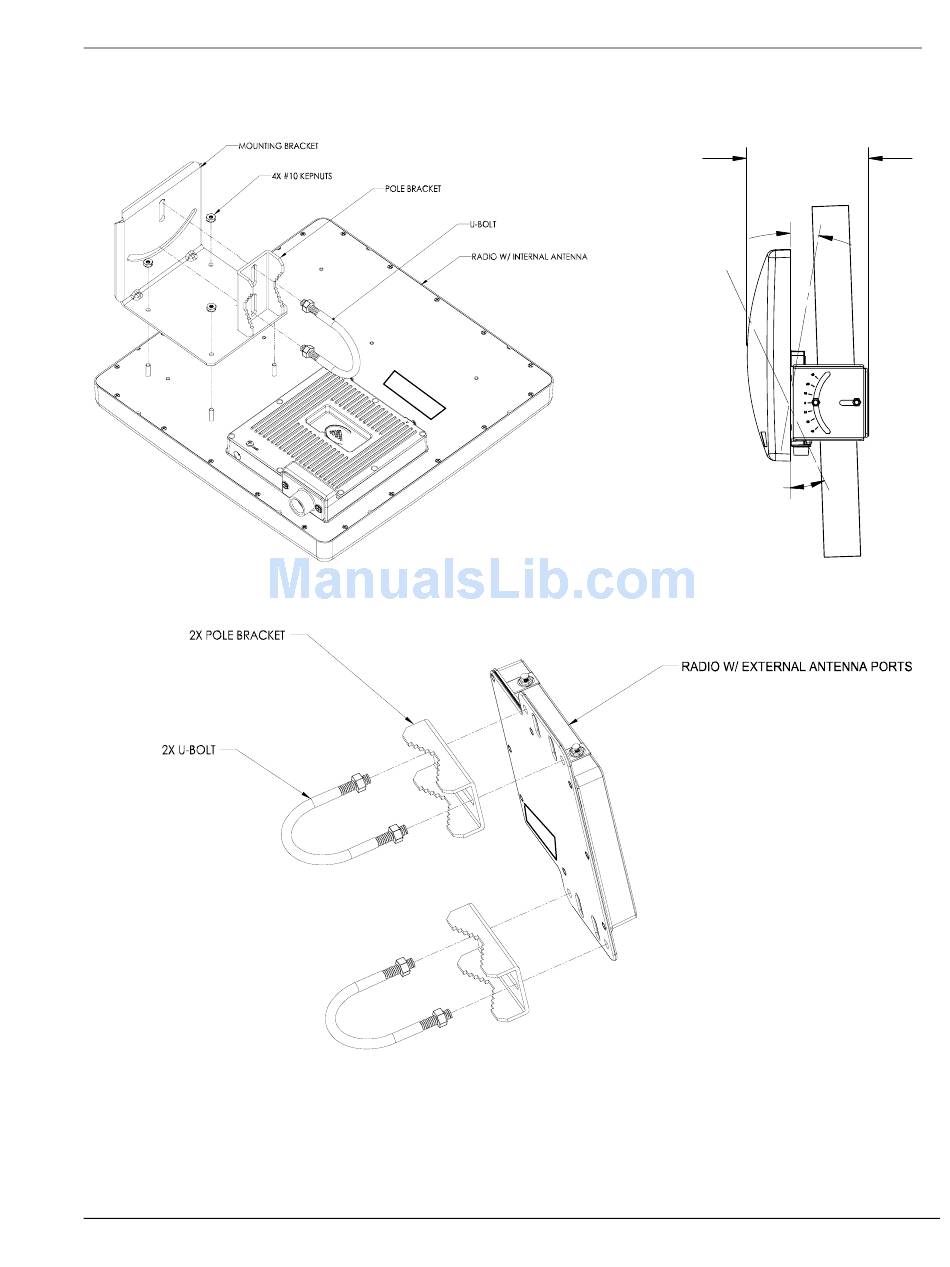

Radios are supplied with mounting hardware for pole installations. See diagram below for proper use of the mounting
hardware.
8.50 MAX
10.00°
UPTILT
25.00°
DOWNTILT
Mounting Hardware Assembly for Integrated Antenna P5010-INT
Mounting Hardware Assembly for P5010M-EXT
Connecting External Antenna on EXT Model
The P5010-EXT is equipped with two reverse-polarity SMA connectors on the top for attachment to an external antenna.
Each SMA connector is labeled with either "V" for Vertical or "H" for Horizontal polarization. Connect each cable to
the appropriate "H" and "V" ports on both the antenna and the radio.
Trango Broadband Wireless — Atlas5010
page 29
