Overview

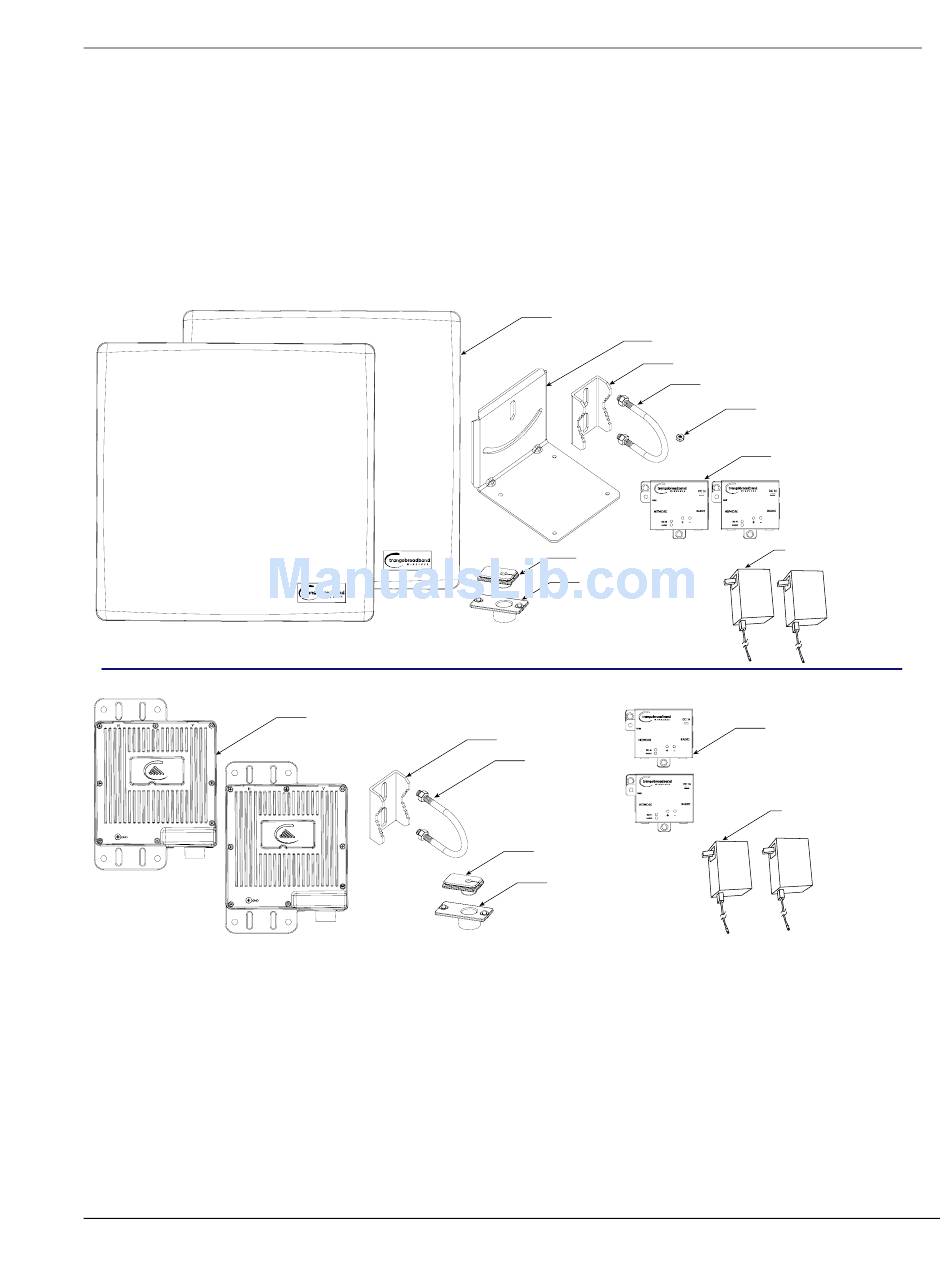

System Contents
The Atlas5010 system is available in two versions:
Atlas5010-INT
-
Atlas5010-EXT
-
Each Atlas5010 kit consists of two radios, two power-over-Ethernet (PoE) injectors, two AC adapters, port covers, and
mounting hardware. A dual-polarized integrated antenna is located behind the radome of the P5010M-INT.
Trango Broadband Wireless — Atlas5010
Radios with integrated 23 dBi antennas (part numbers P5010-INT)
Connectorized radios (part numbers P5010-EXT)
ATLAS5010-INT
ATLAS5010-EXT
2X Radios w/ External Antenna Connectors
2X Radio w/ Internal Antenna
2X Mounting Brackets
2X Silicone Port Plug
2X Port Plate
4X Pole Brackets
4X U-Bolts
2X Silicone Port Plug
2X Port Plate
2X Pole Brackets
2X U-Bolts
8X Mounting Bracket
Kepnuts
2X
Power-over-Ethernet
Injectors
2X Universal
Power Supplies
(100-240 VAC-24 VDC)
2X
Power-over-Ethernet
Injectors
2X Universal
Power Supplies
(100-240 VAC-24 VDC)
page 8
