Port Plug and Port Plate (Hardware)

Prior to deployment, insert the silicone port plug around the Cat‐5 Cable and insert into the radio's port opening.

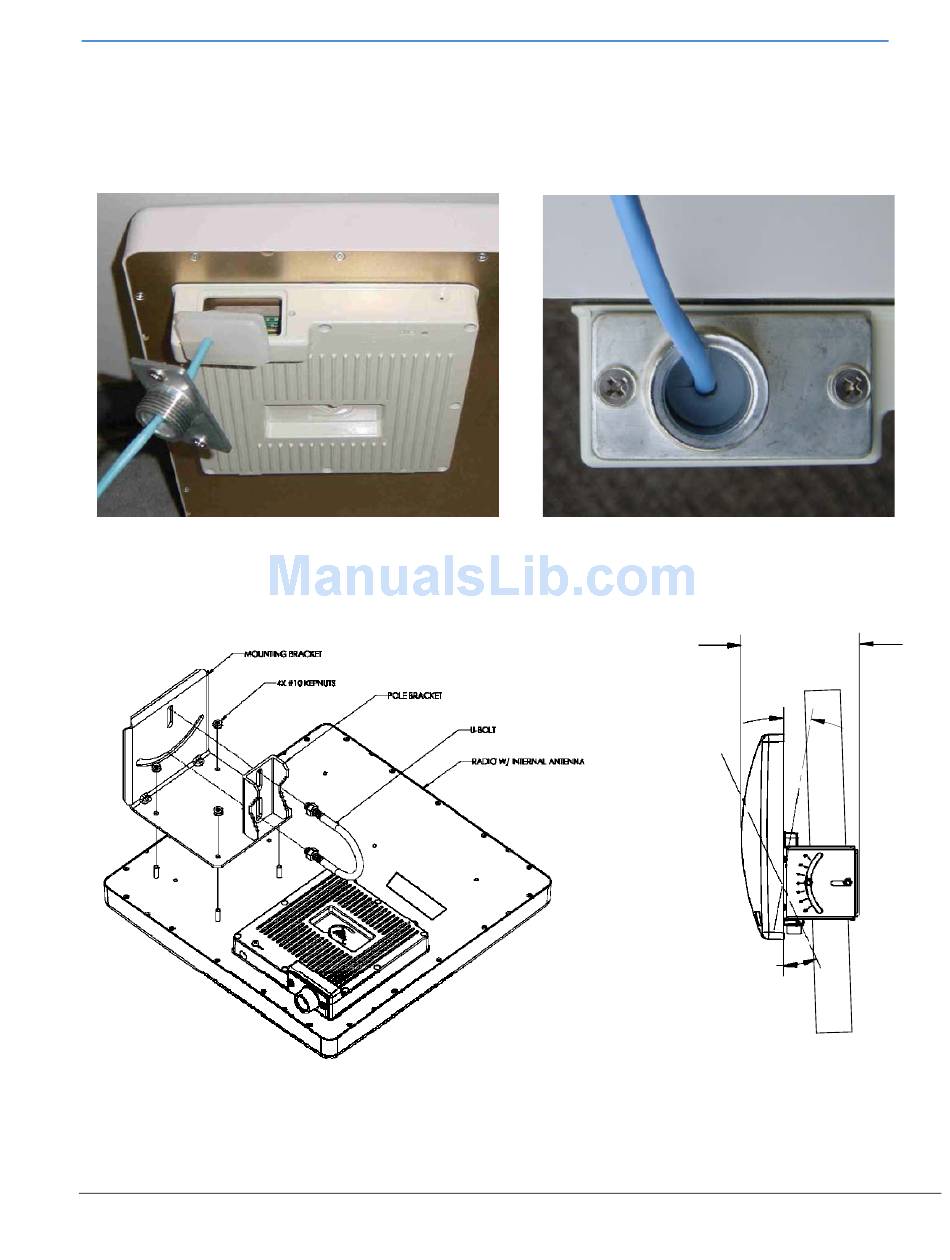

Next, screw the port plate over the silicone plug as shown in the photographs below.

Radios are supplied with mounting hardware for pole installations. See diagram below for proper use of the

mounting hardware.

Mounting Hardware Assembly for Integrated Antenna‐23‐xx

LT‐9037A

August 15, 2011

TL45 User Manual Rev 2.0r3

8.50 MAX

10.00°

UPTILT

25.00° DOWNTILT

Page 39
