Deployment & Installation
Port Plug and Port Plate

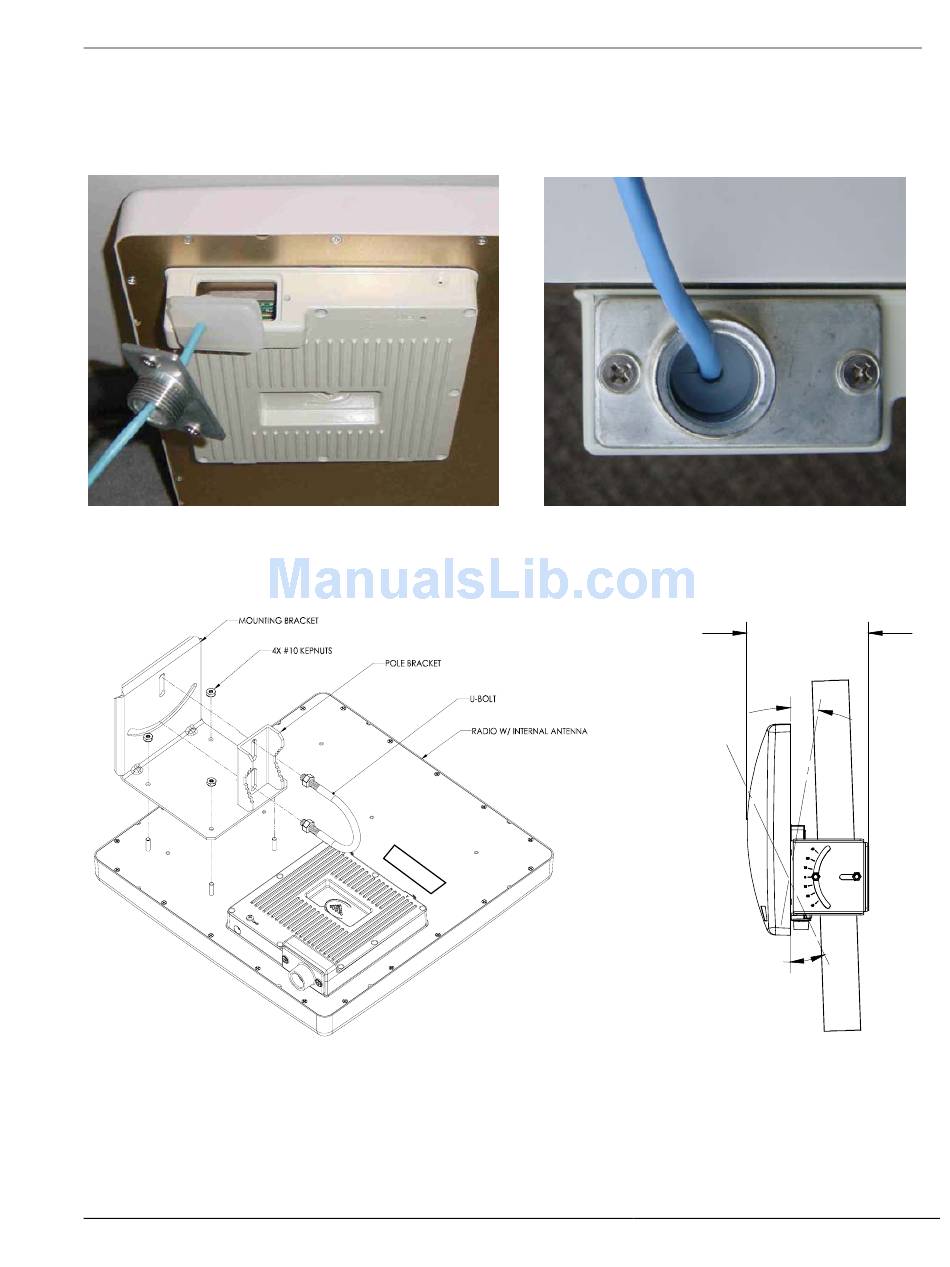

Prior to deployment, insert the silicone port plug around the Cat-5 Cable and insert into the radio's port opening. Next,
screw the port plate over the silicone plug as shown in the photographs below.
Mounting Hardware
Radios are supplied with mounting hardware for pole installations. See diagram below for proper use of the mounting
hardware.
8.50 MAX
10.00°
UPTILT
25.00°
DOWNTILT
Mounting Hardware Assembly for Integrated Antenna P5010-INT
Trango Broadband Wireless — ATLAS5010
page 18
