Getting Started

Chapter 2 Getting Started

It is always a good idea to first provision and test the radios on the bench before deploying them in the field. This is a
particularly useful exercise for the novice user.

Connections and Power

•

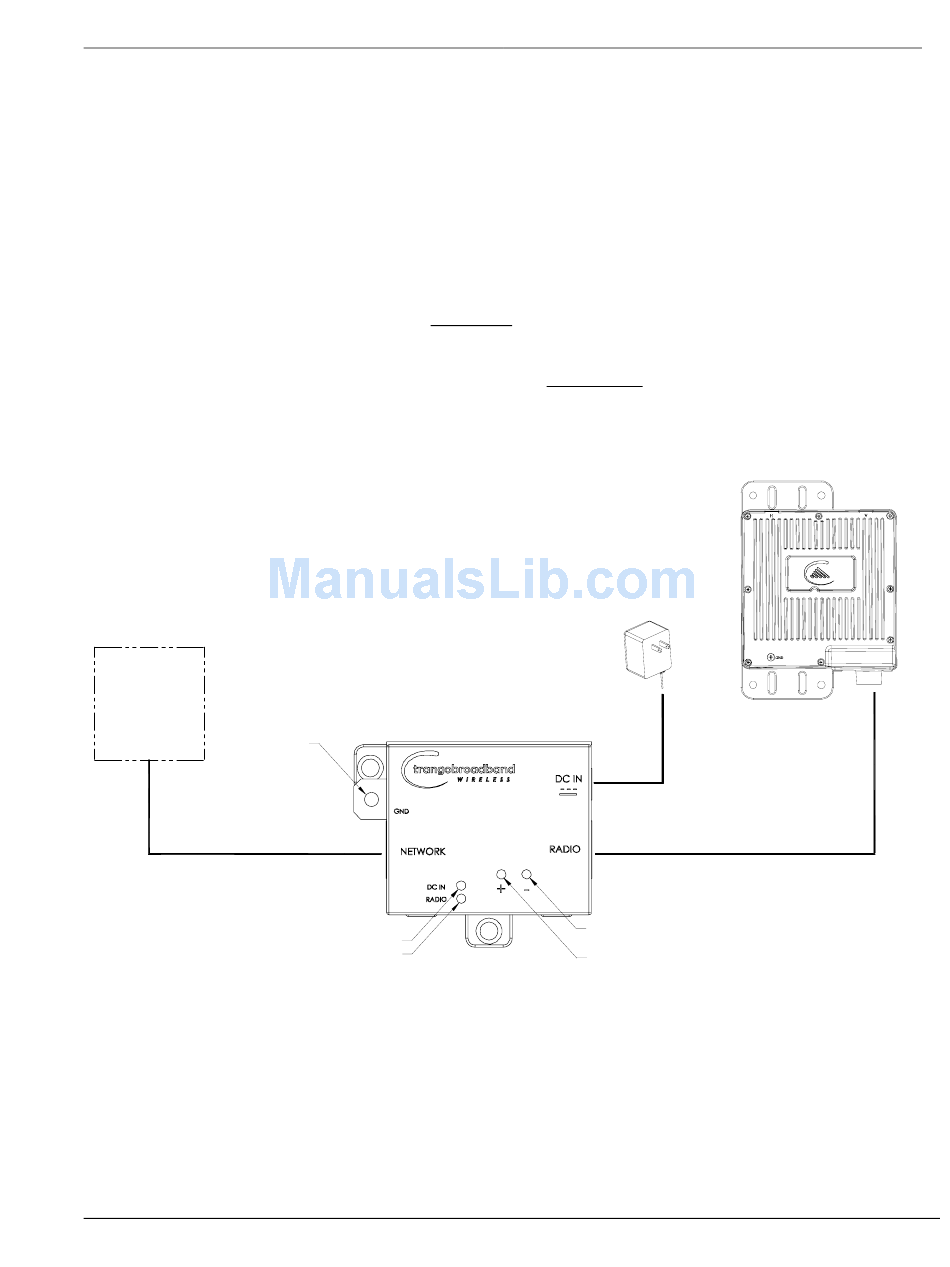

Connect a Cat-5 (straight through) Ethernet cable (we recommend shielded twisted pair) between the ODU (out
door unit) port of the J-box and the RJ-45 connector on the radio. Note that this cable will carry power-over-
Ethernet (PoE).
•
If connecting to a COMPUTER, use a Cross-Over Ethernet cable from the NET port of the J-box to the
computer's Ethernet port.
If connecting to a HUB, SWITCH, or ROUTER, use a Straight-Thru cable.
•
Plug the AC adapter into an AC outlet.
NETWORK
OR
COMPUTER
GROUND
CAT-5
USE CROSS-OVER CABLE
IF TO COMPUTER
USE STRAIGHT-THRU CABLE
IF TO HUB, SWITCH, OR ROUTER
INDICATES POWER TO J-BOX
INDICATES POWER TO RADIO
Both green LEDs on the J-box should be lit, indicating power is present at the Power-over-Ethernet box as well as at the
radio.
You are now ready to configure the radio via the Ethernet port. After reboot, the Radio Power LED may take several
seconds before lighting. The radio requires approximately 45 seconds to boot.
Trango Broadband Wireless — Atlas5010
POWER-OVER-ETHERNET
LUG
AC POWER
20 VDC
POWER SUPPLY
J-BOX
VOLTMETER TEST LEADS
VOLTMETER TEST LEADS
ATLAS
MASTER UNIT OR REMOTE UNIT
CAT-5
STRAIGHT-THRU CABLE
