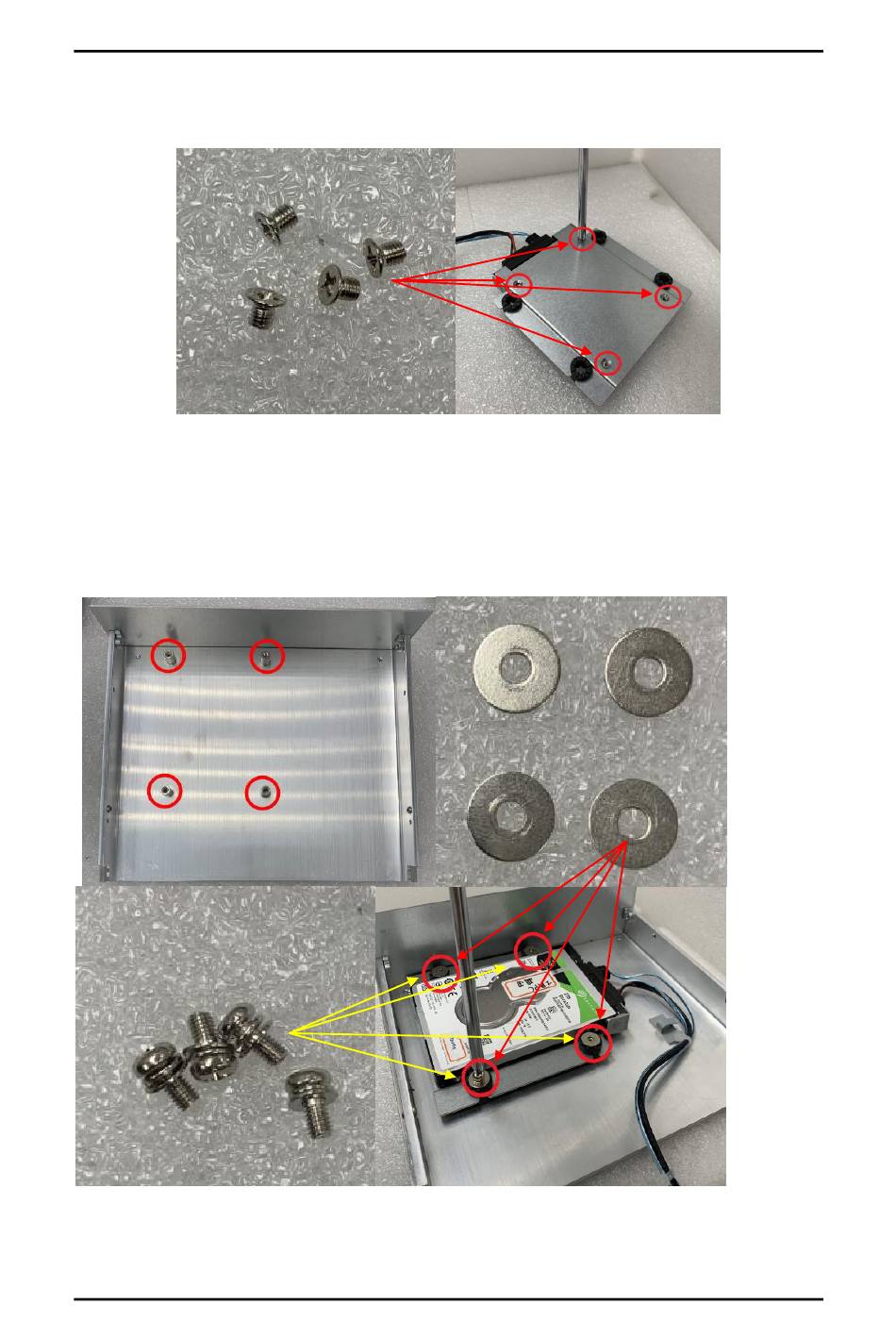

Step 6 Position the screw holes on the HDD/SSD against the holes on the
SATA drive tray. Then screw the HDD/SSD firmly to the tray with the
four supplied screws, as illustrated below.
Step 7 Align the screw holes on the edges of the SATA drive tray to the screw
posts on the inside of the chassis. Insert the screw holes through the
screw posts to attach the HDD/SSD onto the chassis.
Step 8 Place the round gaskets onto the screw holes. Insert and fasten the
screws firmly to secure the SATA drive tray in place.
STEP2
Hardware Installation
UST100-504-FL Series user's Manual
STEP1
9
