Maintenance

Service Access

All service accessible areas are provided with hinged
doors that allow doors to swing open or be removed
completely.
To use as a hinge, simply open hinge handle, depress Y
latch and swing door open.
To remove completely, open hinge handle and depress Y
latch on back side of hinge. Work door off of unit being
careful to not drop door.

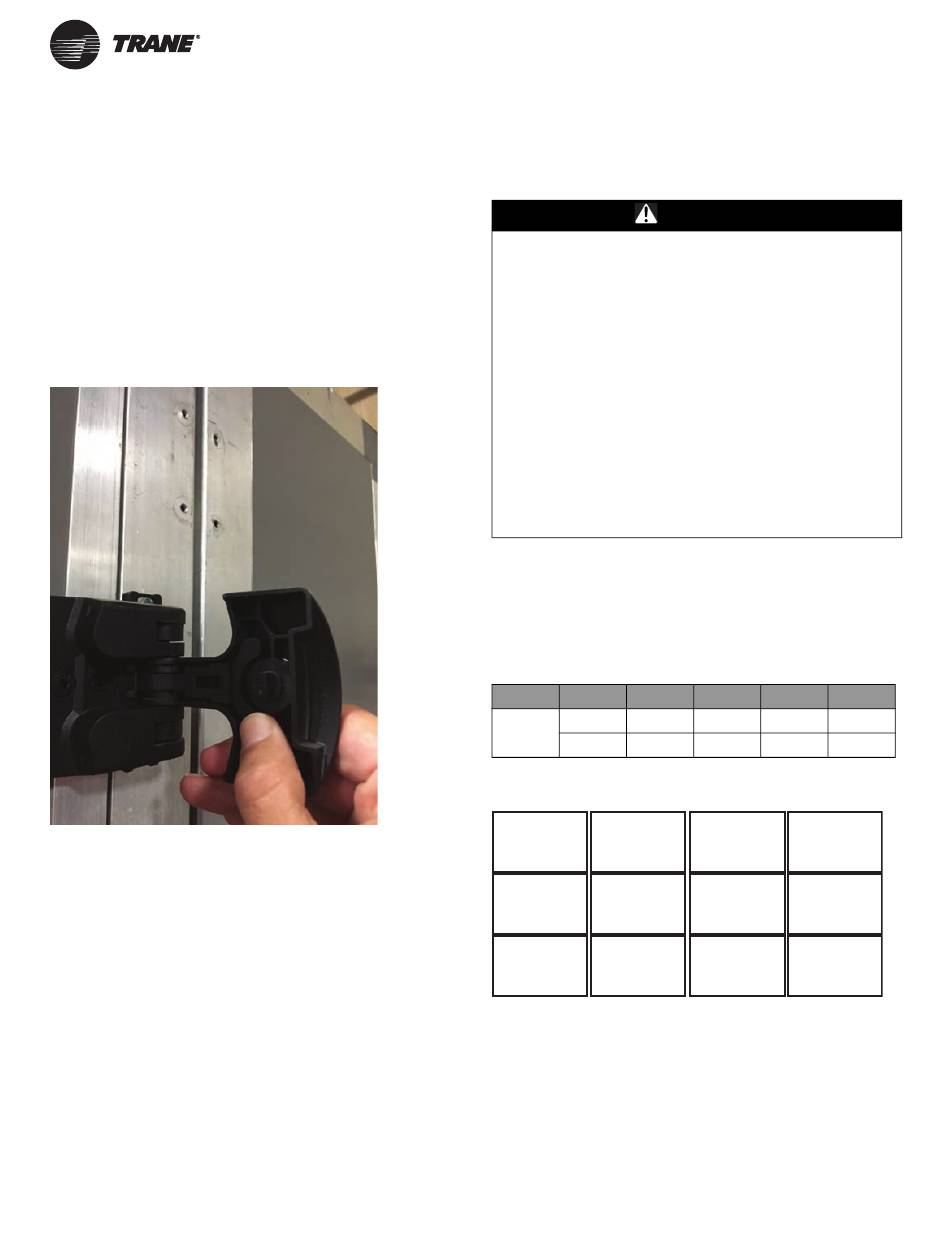

Figure 46. Hinge
Note: Evaporator door is 75 lbs and may require two-man
lift to remove safely.
Access unit controls through the front. The panel is
secured with two quick release hinges. Hinged panels
allow access to the fans and also the compressor and
condensers. Hinges also allow for complete removal of
panel. Left and right hinges allow for access to evaporator
section and also allow for removable of the entire panel.
Expansion valves and filter driers are easily accessible
from here. Filters are accessible via a hinged panel.
Power is accessible through a hinged door on the unit (left
hand is standard and right hand is optional). Hinge also
allows for panel to be removed.
PKG-SVX027A-EN

Air Filters

WARNING
Hazardous Voltage w/Capacitors!
Failure to disconnect power and discharge capacitors
before servicing could result in death or serious injury.
Disconnect all electric power, including remote
disconnects and discharge all motor start/run capacitors
before servicing. Follow proper lockout/tagout
procedures to ensure the power cannot be inadvertently
energized. For variable frequency drives or other energy
storing components provided by Trane or others, refer to
the appropriate manufacturer's literature for allowable
waiting periods for discharge of capacitors. Verify with a
CAT III or IV voltmeter rated per NFPA 70E that all
capacitors have discharged.
For additional information regarding the safe discharge
of capacitors, see PROD-SVB06*-EN.
Filter access doors are shared with the evaporator cassette
access door. To replace throwaway filters, remove the dirty
elements and install new filters with the filter's directional
arrows pointing toward the fan. Verify that no air bypasses
the filters. See Figure 47, p. 61
Table 26. SCWM filter data, water-cooled units
Unit Size 40 Ton 50 Ton
9 12
Number -
Size (in.)
24"x 20" 24"x 20"
Figure 47. Unit filter sizes
24 x 20 24 x 20
24 x 20 24 x 20
24 x 20 24 x 20
for proper filter placement.
60 Ton 70 Ton 80 Ton
12 15 15
24"x 20" 24"x 20" 24"x 20"
24 x 20 24 x 20
24 x 20 24 x 20
24 x 20 24 x 20
61
