Integration Guide
BACnet® and Modbus Integration
Symbio™ 800
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and air-conditioning equipment
can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person could result in death or
serious injury. When working on the equipment, observe all precautions in the literature and on the tags, stickers, and labels that are attached to the equipment.
November 2024
SAFETY WARNING
BAS-SVP083B-EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the Symbio 800 and is the answer not in the manual?

Questions and answers

Related Manuals for Trane Symbio 800

Summary of Contents for Trane Symbio 800

  • Page 1 Integration Guide BACnet® and Modbus Integration Symbio™ 800 SAFETY WARNING Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and air-conditioning equipment can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person could result in death or serious injury.

  • Page 2: Warnings, Cautions, And Notices

    Chlorine, Fluorine and Carbon (CFCs) and those containing Hydrogen, Chlorine, Fluorine and Carbon (HCFCs). Not all refrigerants containing these compounds have the same potential impact to the environment. Trane advocates the responsible handling of all refrigerants.

  • Page 3: Revision History

    Non-Trane personnel should always follow local regulations. Copyright This document and the information in it are the property of Trane, and may not be used or reproduced in whole or in part without written permission. Trane reserves the right to revise this publication at any time, and to make changes to its content without obligation to notify any person of such revision or change.

  • Page 4: Table Of Contents

    Table of Contents Overview ............... 5 Purpose .

  • Page 5: Overview

    ® • LonTalk For information pertaining to the integration of the Symbio 800 controller using LonTalk communication, refer to the integration guides specific to those applications. Units of Measure The communicated data of the Symbio™ 800 controller will be passed in the factory-configured units of measure, either inch-pound (I-P) or the International System of Units (SI).

  • Page 6: Communication Setup And Configuration

    Communication Setup and Configuration The Symbio™ 800 controller can be factory ordered with a specific protocol configuration and rotary address setting. If communication options were not specified, the Symbio 800 controller will be setup for ® BACnet MS/TP communications at 76,800 bps with a rotary address setting of 000.
  • Page 7 Figure 2. Symbio 800 log in screen Note: The Symbio 800 web interface can only be viewed using the USB connection. Ethernet port 1 and Ethernet port 2 will not allow access to the Symbio web server to meet IT security requirements.

  • Page 8: Bacnet ® Protocol Configuration

    BACnet MS/TP Protocol Settings The rotary address on the Symbio 800 controller sets the BACnet MS/TP MAC address. Each BACnet MS/TP device on the same TP link must have a unique MAC address. The valid range of BACnet MS/ TP MAC addresses for the Symbio 800 is: 001–127.

  • Page 9: Bacnet ® Ip (Ethernet Or Wi-Fi Connectivity)

    Symbio 800 controller. The rotary address also sets the BACnet Device ID which gives a range of 1-127. All BACnet devices must have a unique BACnet Device ID. The Symbio 800 BACnet Device ID can also be manually ® changed using a web browser, the Tracer SC+ system controller, or Tracer TU.
  • Page 10 IP address by manually entering the IP address, subnet mask, and default. b. Set the Preferred IP Interface to Ethernet 1. c. Setup the DNS section if using a Domain Name System server to identify the Symbio 800 controller by host name.
  • Page 11 ® BACnet Protocol Configuration Figure 8. Enable Wi-Fi network connection b. Click Wi-Fi Setup. Figure 9. Wi-Fi setup c. Click Client Mode (Station) to join an existing Wi-Fi access point. Click Next. d. Select the Wi-Fi network or type the SSID of the hidden access point. Click Next. e.

  • Page 12: Manually Change Symbio™ 800 Bacnet ® Device Id

    Manually Change Symbio™ 800 BACnet Device ID The rotary address on the Symbio 800 controller sets the BACnet Device ID which gives a range of 1- 999. All BACnet devices must have a unique BACnet Device ID. The Symbio 800 BACnet Device ID ®...
  • Page 13 4. Set the UDP Port to match the port number used by the BACnet IP network. The default is 47808. 5. Check the BBMD checkbox only if the Symbio 800 controller is the only BACnet IP device on the IP subnet.

  • Page 14: Air-Fi ® Wireless

    ® Air-Fi communications uses BACnet IP communication through a Tracer SC+ system controller. Contact your local Trane office for additional information if the Symbio 800 controller is setup for Air-Fi Wireless. ZigBee is a registered trademark of the ZigBee Alliance.

  • Page 15: Bacnet Points List

    BACnet Points List Download Equipment-specific BACnet® points lists are available on trane.com product page. Object Naming Conventions The communicated points for the Symbio™ controllers are generally named according to their function. While many of the points are read-only, others include both read and write capability. The established naming convention helps to identify the capabilities of each point.
  • Page 16 BACnet Points List Example: When the unit is configured for only two compressors, any points associated with compressors three and four are not be displayed on the Touch Screen interface or browser-based Web user interface. When configuration changes are made in the field, the points in the communication interface change accordingly to align with those features or user-added points.
  • Page 17 BACnet Points List Figure 14. Delete points Note: User-created points cannot be recycled. Instead, when the user selects and deletes user-created points, those points are permanently removed from the controller. Should the user decide later that one or more of the deleted user points are needed, they will need to be recreated. To restore recycled points: 1.
  • Page 18 BACnet Points List Figure 15. Recycled points tab BAS-SVP083B-EN...

  • Page 19: Modbus Protocol Configuration

    Modbus Protocol Configuration To access the Symbio™ 800 Protocol Configuration page: 1. Connect to the Symbio™ 800 web interface. 2. On the left-hand navigation, click Installation. 3. Click Identification and Communications. Figure 16. Identification and Communications 4. Click the Protocol Configuration tab. Figure 17.

  • Page 20: Modbus Wiring

    Ethernet cable with RJ-45 connectors to Ethernet port 1 and the IP network. The Symbio™ 800 controller does not support the optional Wi-Fi module with Modbus TCP communications. The rotary address on the Symbio 800 controller is not used with Modbus TCP communications. Ethernet Port 2 is reserved for the optional touch screen display.
  • Page 21 Modbus Protocol Configuration Figure 21. Edit IP configuration 4. Setup the Ethernet 1 port to either ‘Obtain an IP addresss Automatically using DHCP’ or use a static IP address by manually entering the IP address, subnet mask, and default gateway. The IP address information is typically provided by the local IT administrator.

  • Page 22: Modbus Points List

    Modbus Points List Download Equipment-specific Modbus™ points lists are available on the trane.com product page. Object Naming Conventions The communicated points for the Symbio™ controllers are generally named according to their function. While many of the points are read-only, others include both read and write capability. The established naming convention helps to identify the capabilities of each point.
  • Page 23 Modbus Points List Example: When the unit is configured for only two compressors, any points associated with compressors three and four are not be displayed on the Touch Screen interface or browser-based Web user interface. When configuration changes are made in the field, the points in the communication interface change accordingly to align with those features or user-added points.
  • Page 24 Modbus Points List Figure 23. Delete points Note: User-created points cannot be recycled. Instead, when the user selects and deletes user-created points, those points are permanently removed from the controller. Should the user decide later that one or more of the deleted user points are needed, they will need to be recreated. To restore recycled points: 1.
  • Page 25 Modbus Points List Figure 24. Recycled points tab BAS-SVP083B-EN...

  • Page 26: Appendix A. Arbitration

    Appendix A. Arbitration The Symbio™ 800 controller includes arbitration logic for several points. For each read/write point designated as “BAS”, an associated “Arbitration” point determines the behavior of that communicated data compared to the local hardwired (or wireless) sensor and a default value. As shown in Figure 25, p.

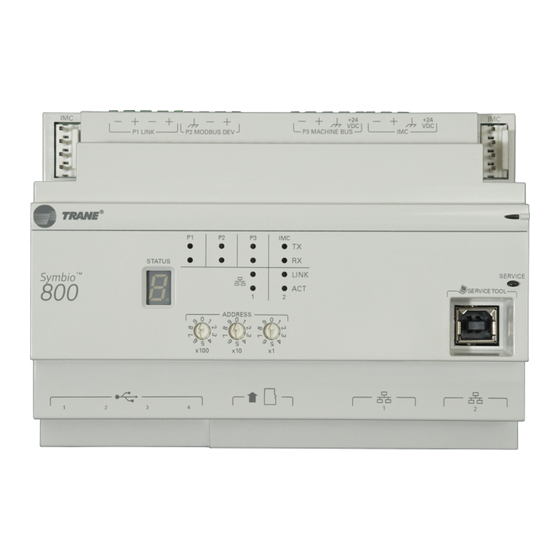

  • Page 27: Appendix B. Symbio™ 800 Controller Layout

    U54. Updating FPGA image U55. Updating U-boot image U57. Updating recovery partition Note: A code starting with an “F” indicates a failure, and requires Trane Service to resolve the issue. ® ® P1 Link — BACnet MS/TP or Modbus •...
  • Page 28 Symbio™ 800 Controller Layout Figure 28. P2 Modbus device (factory installed Modbus server devices) Note: The P2 link is intended for factory devices only and should not have any other devices added this link. Figure 29. P3 machine bus (global bus — internal communication bus) Note: The P3 link is intended for factory devices only and should not have any other devices added this link.
  • Page 29 Symbio™ 800 Controller Layout ® Figure 30. IMC link terminations for optional Air-Fi and expansion module (XM30) For more information on Expansion Module wiring reference BAS-SVX46* – Expansion Module Installation Operation and Maintenance Manual. Figure 31. (4) USB connectors BAS-SVP083B-EN B–3...
  • Page 30 The controller automatically detects devices on any of the ports (not port specific). The controller ships with all ports enabled, but they can be disabled via the Web interface. Note: The USB ports are not to be used for any devices that are not Trane approved, such as cellular phones.
  • Page 31 Notes BAS-SVP083B-EN...
  • Page 32 For more information, please visit trane.com or tranetechnologies.com. Trane has a policy of continuous product and product data improvements and reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.
