Transducer inside control panel picks up low side or
reference pressure.

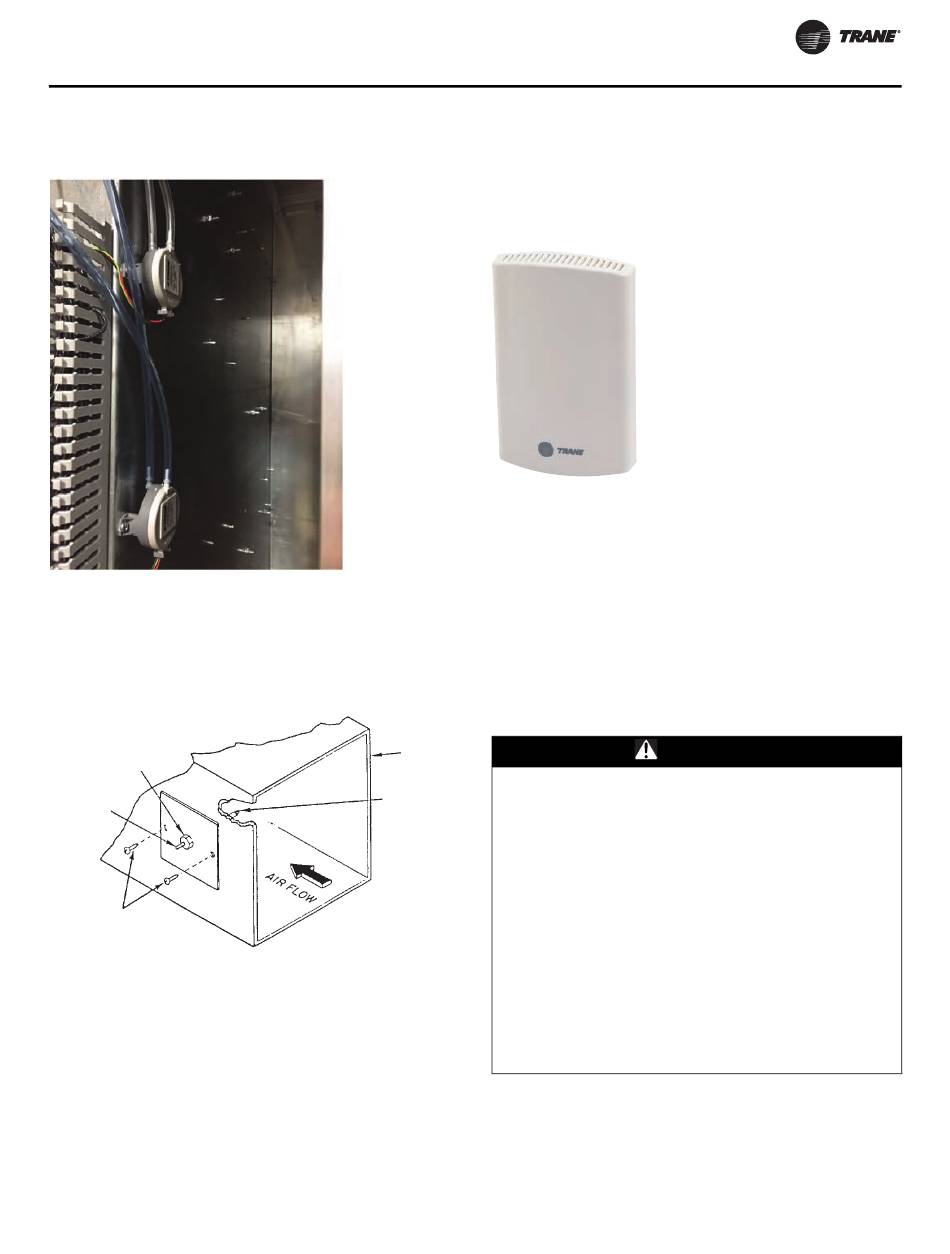

Figure 34. Static pressure tube
Note: If plastic tubing pulls away from a connection, trim
it back before replacing it on the fitting. Stretched
tubing may leak and cause faulty control.
Figure 35. Static pressure sensor installation
Static Pressure
Head Assembly
Connector
for 1/4"
Tubing
Sheet Metal Screws
(provided by installer)
PKG-SVX027A-EN
Duct
Pressure
Sensor
NOTE:
Pleace sensor inlet
perpendicular to airflow.
Zone Sensor Options for Control
Units
Zone Temperature Sensor, BAYSENS077
(standard on all units)
This wall-mounted zone sensor ships with every Signature
Series unit, CV or VAV. Additional sensors are also
available for order using the accessory model number. It
includes an internal thermistor and should be mounted in
the zone. This sensor is available for use with all zone
sensor options to provide remote sensing capabilities.
Additional sensors shown can be ordered through Unitary
Accessories (ACC)/UPG Rooftop, Packaged Heat Pump,
Split System Accessories (ACC) in Job Center.

Zone Sensor Installation

WARNING
Hazardous Voltage w/Capacitors!
Failure to disconnect power and discharge capacitors
before servicing could result in death or serious injury.
Disconnect all electric power, including remote
disconnects and discharge all motor start/run capacitors
before servicing. Follow proper lockout/tagout
procedures to ensure the power cannot be inadvertently
energized. For variable frequency drives or other energy
storing components provided by Trane or others, refer to
the appropriate manufacturer's literature for allowable
waiting periods for discharge of capacitors. Verify with a
CAT III or IV voltmeter rated per NFPA 70E that all
capacitors have discharged.
For additional information regarding the safe discharge
of capacitors, see PROD-SVB06*-EN.".
Installation - Electrical
