Installation Summary

The steps below provide a summary of Installation steps
for installing the modular self-contained. Read all
installation instructions before starting installation as the
below is not a complete summary of all steps required.

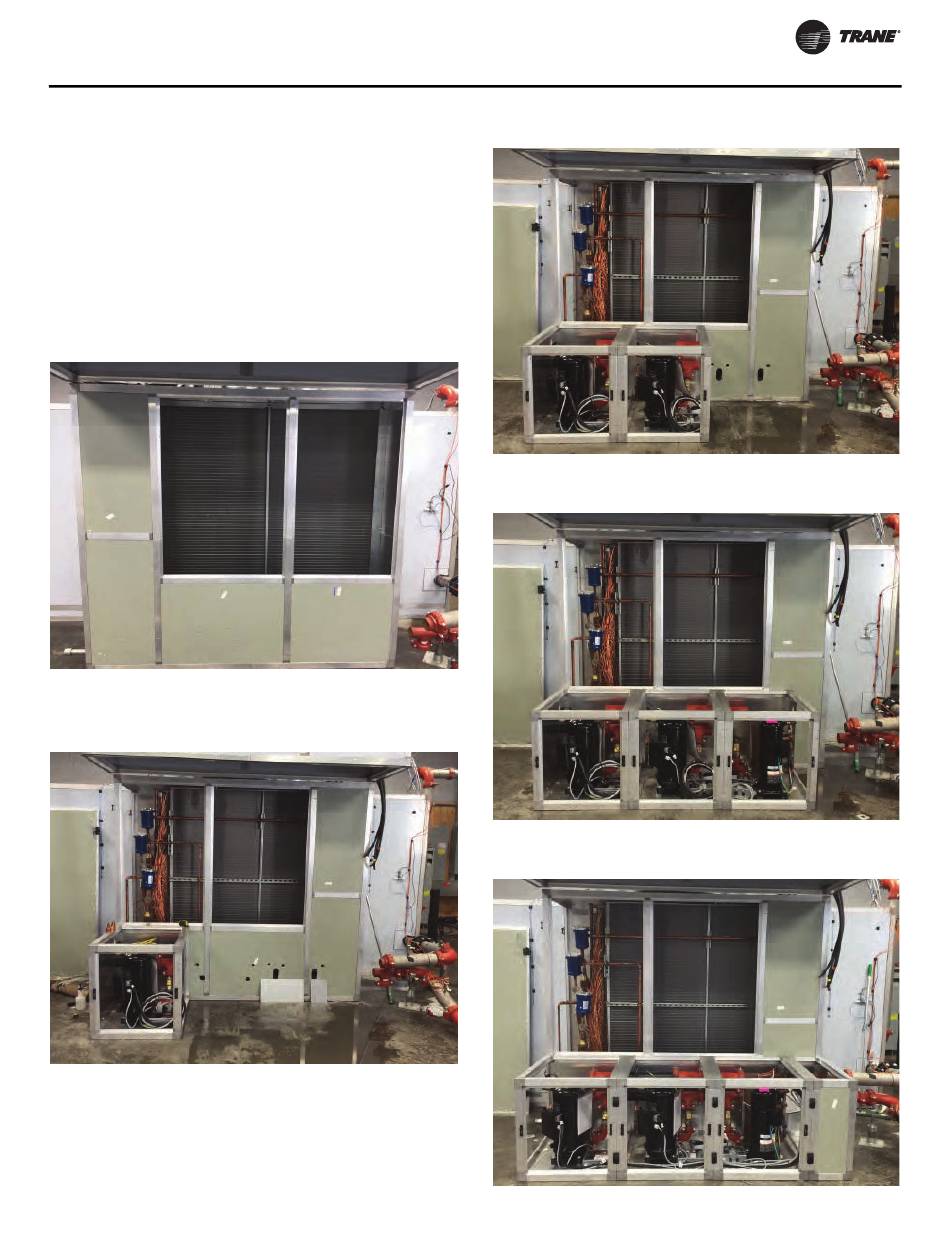

Note: The installation images that follow depict a 60 ton,
right-hand electrical, left-hand water unit. Water
connections will be always be opposite of the
electrical panel. For a left-hand electrical unit, the
installation would be reversed.
1. Set evaporator into final location.
2. Add fixed speed compressor C condensing unit
cassette (for left hand electrical unit, add fixed speed
condensing unit C on right side of evaporator cassette).
PKG-SVX027A-EN
3. Add fixed speed compressor B condensing unit
4. Add variable speed compressor A condensing unit
5. Add spacer cassette
Installation - Mechanical
25
