Duct Connections - Trane SCWM Series Installation, Operation And Maintenance Manual

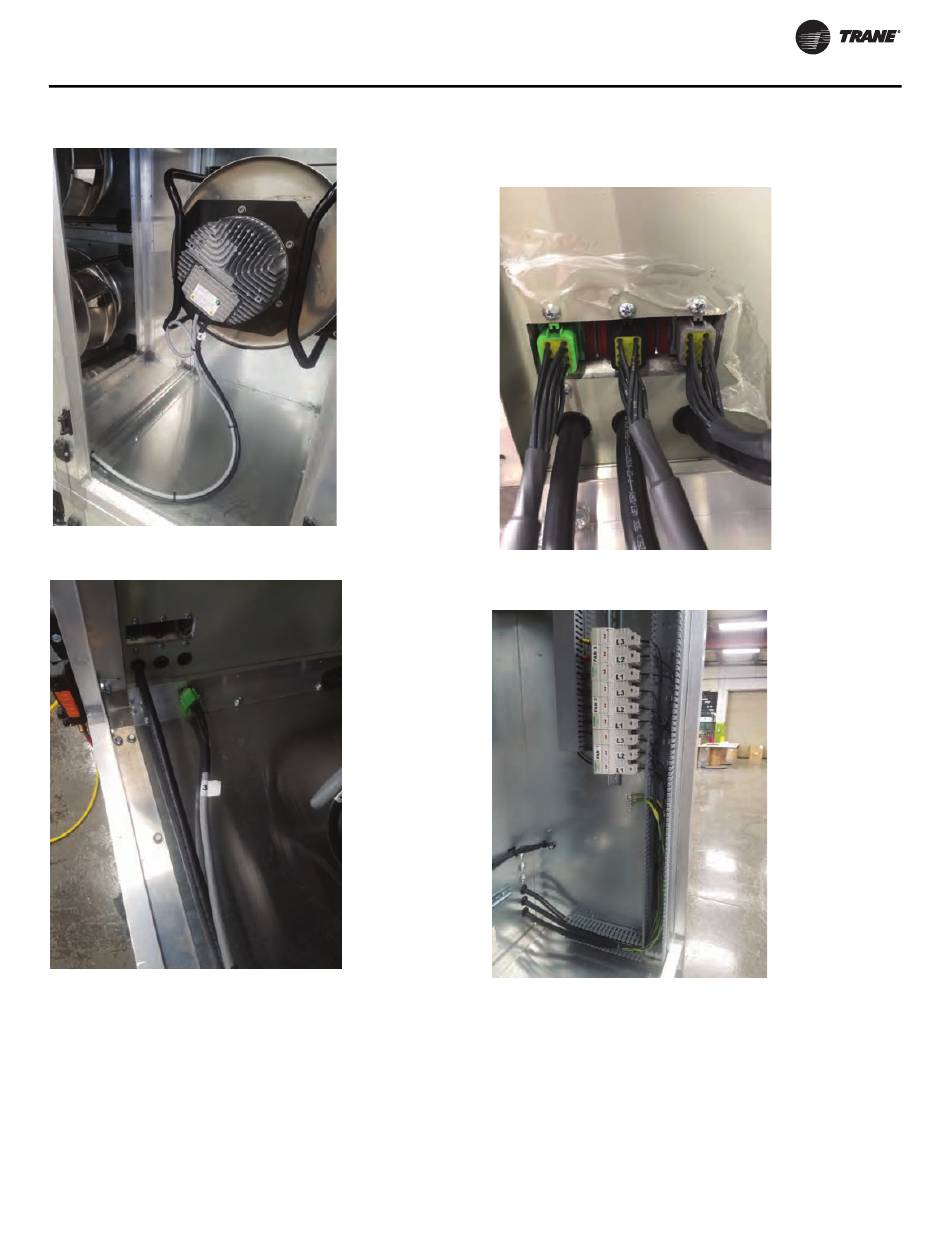

Figure 24. Fan power and communication wire routing
Figure 25. Fan power and communication wiring
PKG-SVX027A-EN
Figure 26. Fan communication terminations - pluggable
connectors are color coded for ease of
installation
Figure 27. Fan power terminations

Duct Connections

Return air enters the rear of the unit and conditioned
supply air discharges through the top. Attach supply air
ductwork directly to the unit's top panel, around the fan
discharge opening. A duct collar is not provided.
Install all air ducts according to the National Fire Protection
Association standards for the "Installation of Air
Conditioning and Ventilation Systems other than
Residence Type (NFPA 90A) and Residence Type Warm Air
Heating and Air Conditioning Systems (NFPA 90B).
