6.6 Identification

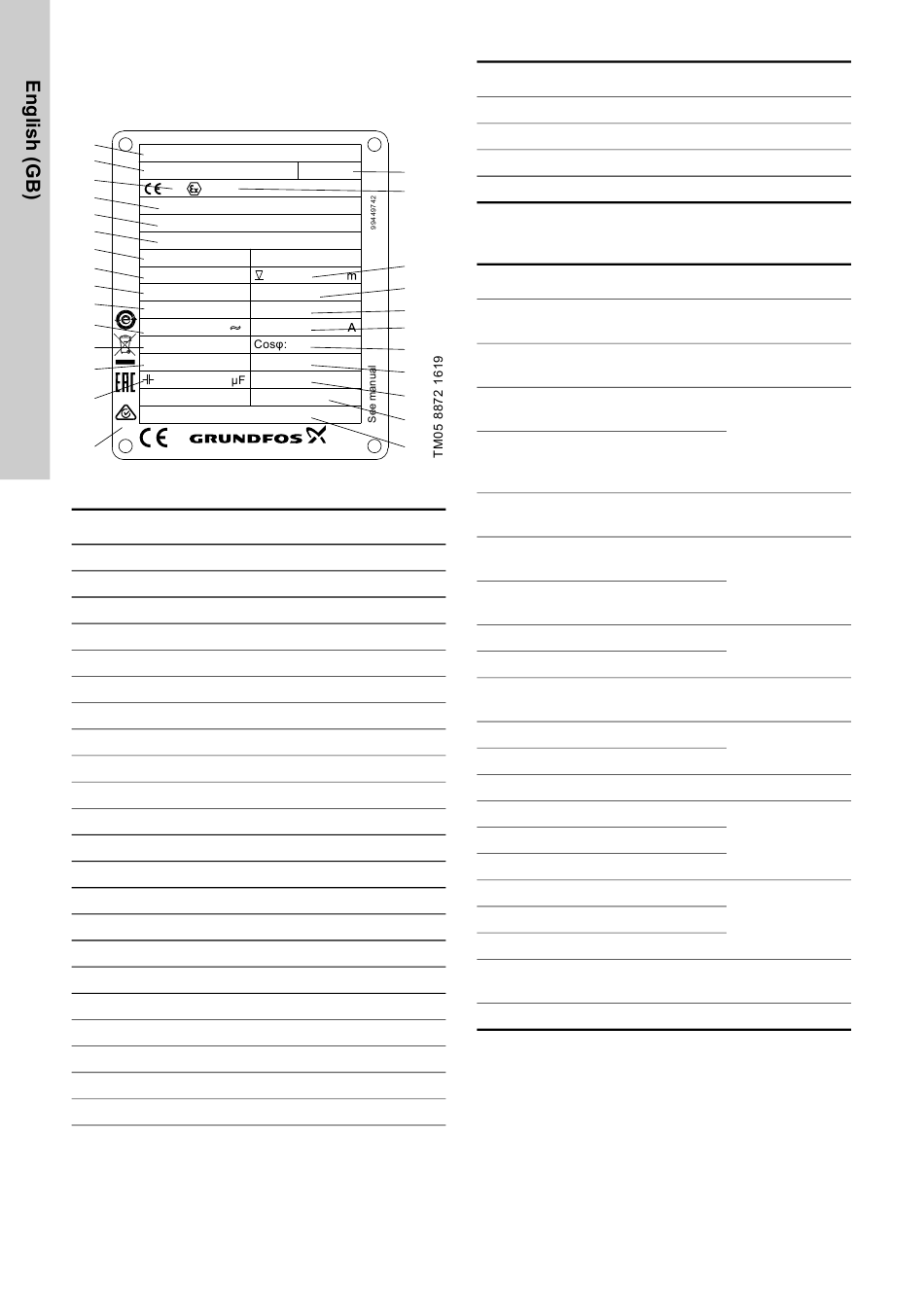

6.6.1 Nameplate
1
Type:
2
Model:
3
4
5
6
7
P.c
8
IP68
9
Hmax: m
10
P1: kW
11
n: min -1
12
Weight: kg
13
opr.:
14
Made in Tatabánya, Hungary
15
DK-8850 Bjeringbro,Denmark
Fig. 11 SEG AUTO
ADAPT
Pos. Description
1 Type designation
2 Product number
3 Approval
4 ATEX certificate number
5 IEC Ex description
6 IEC Ex certificate number
7 Production code, year and week
8 Enclosure class according to IEC 60529
9 Maximum head [m]
10 Rated input power [kW]
11 Rated voltage
12 Speed [rpm]
13 Net weight [kg]
14 Run capacitor [µF]
15 Marks of approval
16 Safety instructions, publication number
17 Ex description
18 Maximum installation depth [m]
19 Maximum flow rate [l/s]
20 Rated power output [kW]
21 Maximum current [A]
Cos φ, 1/1 load
22
16
16
17
18
19
I/s
Qmax:
kW
P2: 20
21
22
Tmax: °C
23
Hz
Insul.class: 24
25
26
nameplate
Pos. Description
23 Maximum liquid temperature [°C]
24 Frequency [Hz]
25 Insulation class/temperature rise
26 Production country
6.6.2 Type key
Example: SEG.40.11.E.Ex.2.1.5.02
Code Description
Grundfos sewage
SE
pumps
Grinder system in the
G
pump inlet
Nominal diameter of
40
outlet port
Nominal diameter of the
50 outlet port for high-flow
variants
P2 = code number from
11
type designation / 10
Standard, without
[ ]
equipment
Electronic version with
E
AUTO functions
ADAPT
[ ] Standard pumps
Ex Explosion-proof pumps
2 2-pole
1 Single-phase motor
[ ] Three-phase motor
5 50 Hz
02 230 V, DOL
0B 400-415 V, DOL
0C 230-240 V, DOL
[ ] 1st generation
A 2nd generation
B 3rd generation
Standard material (EN-
[ ]
GJL-200)
Z Custom-built pump
1)
The pumps in the individual generations differ in
design but are similar in terms of power rating.
Designation
Type range
Impeller type
Pump outlet
[mm]
Output power
[kW]
Equipment
Pump version
Number of
poles
Number of
phases
Frequency [Hz]
Voltage and
starting method
1)
Generation
Pump material
Customisation
