Part 1 – Introduction

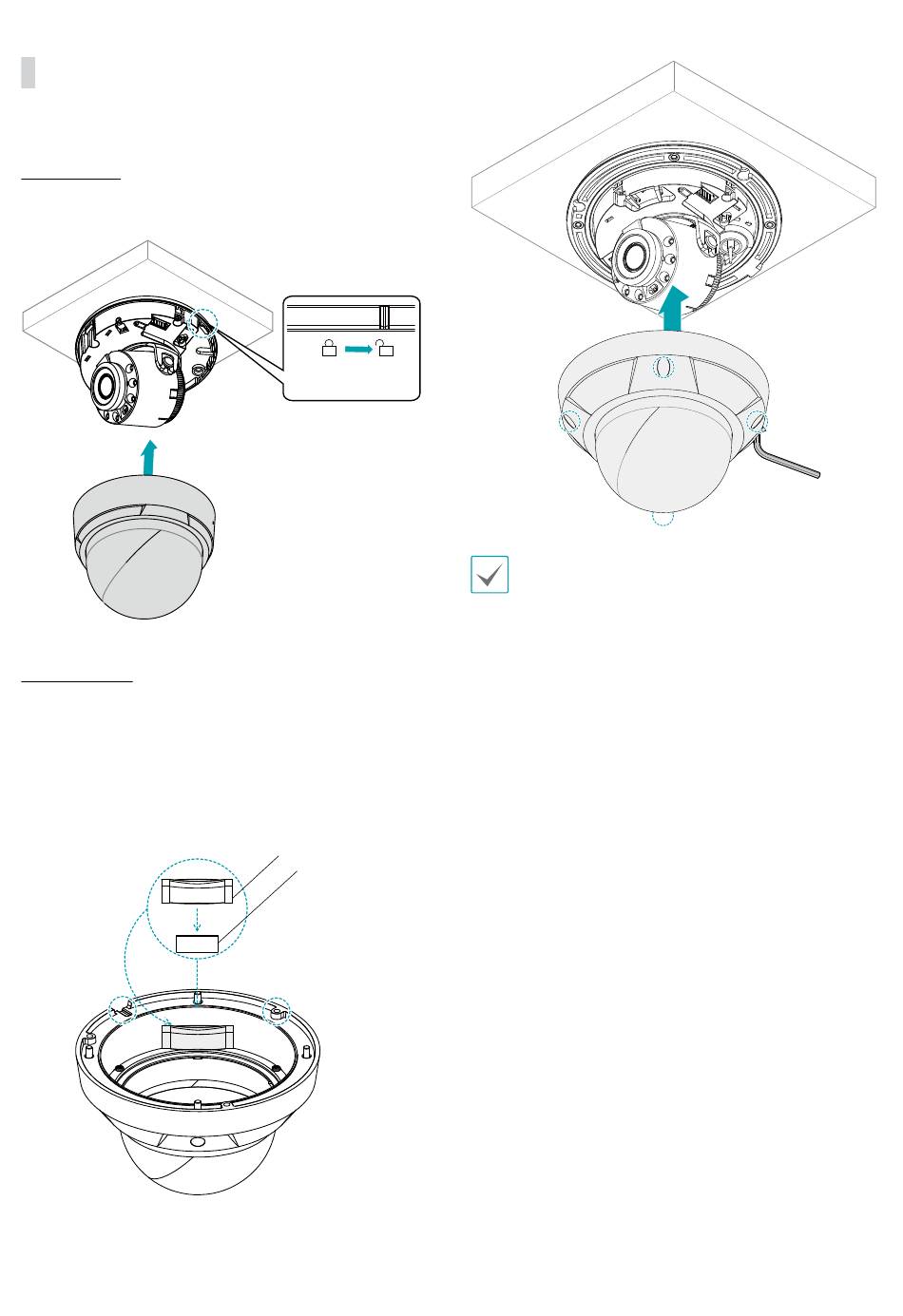

Closing the Dome Cover

DC-D4533RX
Attach the dome cover to the bottom cover. Turn the
dome cover clockwise to fasten the dome cover.
DC-D4533HRX
1
Attach the tape to the desiccant first and then attach
it to the designated position of the dome cover as
shown below. The designated position is the inside
of the dome cover based on the installation screw
between the drain hole and the installation hole.
drain hole
2
Fasten the screws for the dome cover clockwise
using the Allen wrench provided with the camera.
16
desiccant
tape
installation hole
Remove the protective film inside and outside.
