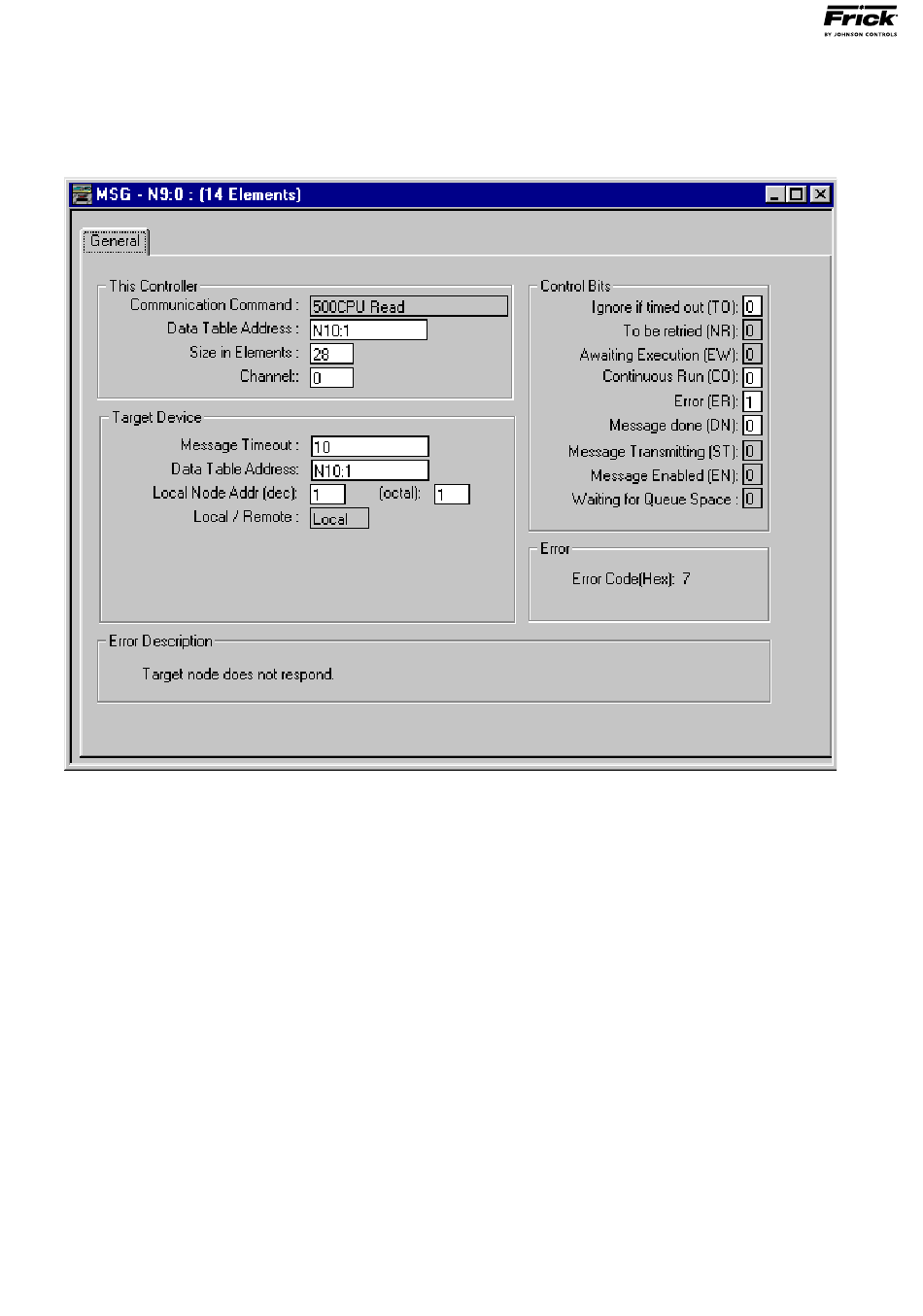

MESSAGE READ SETUP SCREEN

The following setup screen is programmed to ob-
tain 28 consecutive data files from the Quantum™
• This Controller: SLC500
• Data Table Address: Data file location in the
SLC500
• Size in Elements: # of data file to read
• Channel: Port location on the SLC processor
(Channel 0 is the RS-232 port)
QUANTUM™ LX AcuAir™ CONTROL PANEL
COMMUNICATIONS SETUP
LX (ID#1) N10:1 register and place them into the
SLC500's N10:1 through N10:28 register. The target
address must be changed to for the Quantum™ LX.
• Target Device: Quantum™ Panel
• Data Table Address: Data file location in the
Quantum™ LX controller.
• Local Node: Quantum™ LX ID# (Octal)
