MCRL R5 LED Display Controller
User Manual

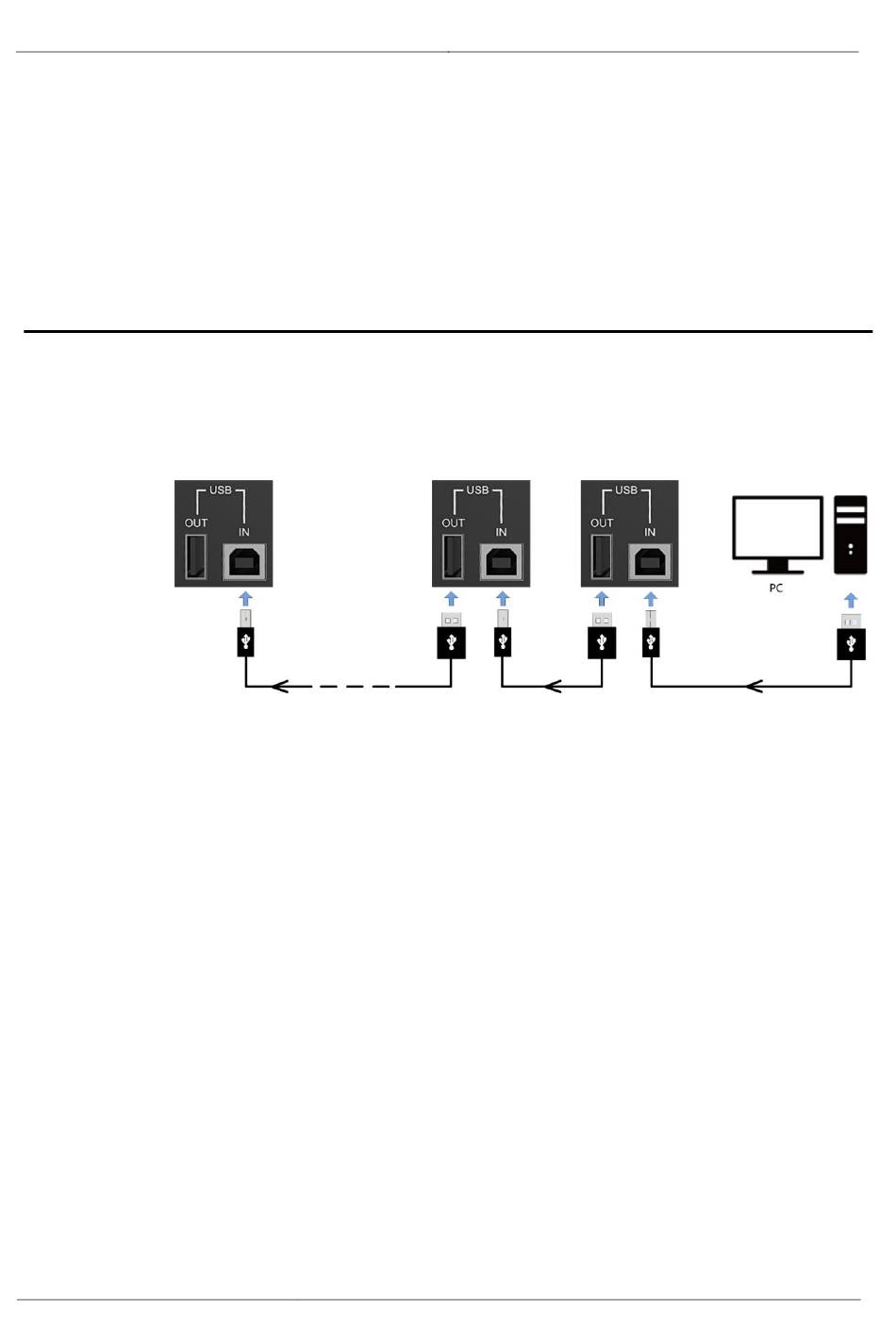

If the control computer needs to control multiple MCTRL R5 units, you can cascade
the units via USB IN and USB OUT of the MCTRL R5 according to the figure below.
Up to 8 units can be cascaded.
www.novastar.tech
4

Cascading Devices

4 Cascading Devices
