7.7.9 Go Homepage (s)

Set the time of staying on the current screen before going back to the homepage
when no action is performed.

7.7.10 OLED Brightness

Adjust the brightness of the OLED menu screen on the front panel. The brightness
range is 4–15.

7.7.11 HW Version

Check the hardware version of the controller. If a new version is released, you can
connect the controller to a PC to update the firmware programs in NovaLCT (V5.1.0
or later).

7.8 Communication Settings

Set the communication mode and network parameters.

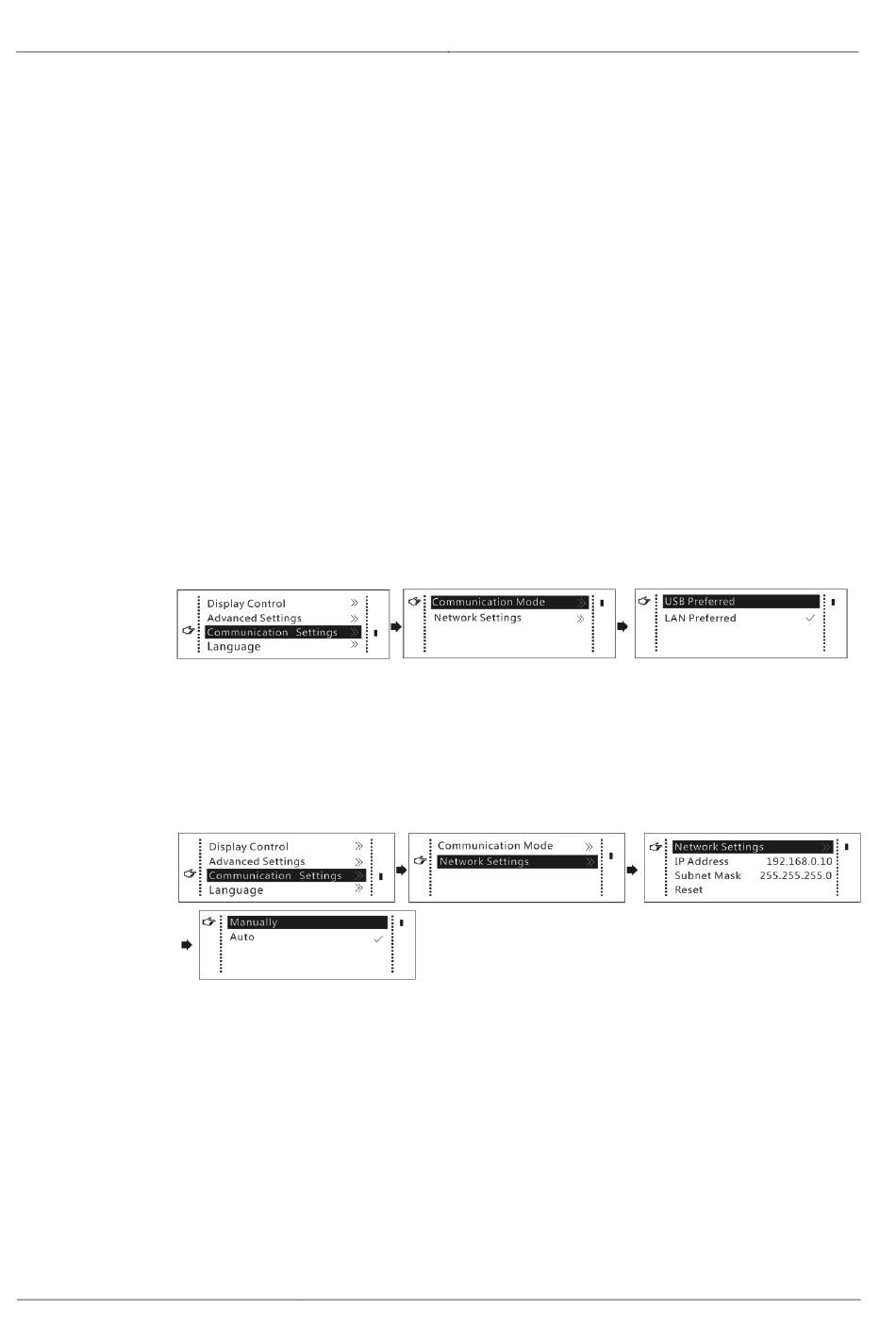

Figure 7-14 Communication mode

Figure 7-15 Network settings



7.9 Language

Change the UI language of the MCTRL R5 unit.
www.novastar.tech
Communication mode: USB preferred and Local Area Network (LAN) preferred
The controller connects to PC via USB port and Ethernet port. If USB Preferred
is selected, the PC prefers to communicate with the controller via the USB port,
or else via the Ethernet port.
Network settings can be manual or automatic.
Manual settings parameters include controller IP address and subnet mask.
−
− Automatic settings can read the network parameters automatically.
Reset: Reset the network parameters to default values.
