BRASSELER USA EndoSync TR-CM BSL Operation Instructions Manual

Cordless endodontic treatment motorized handpiece
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

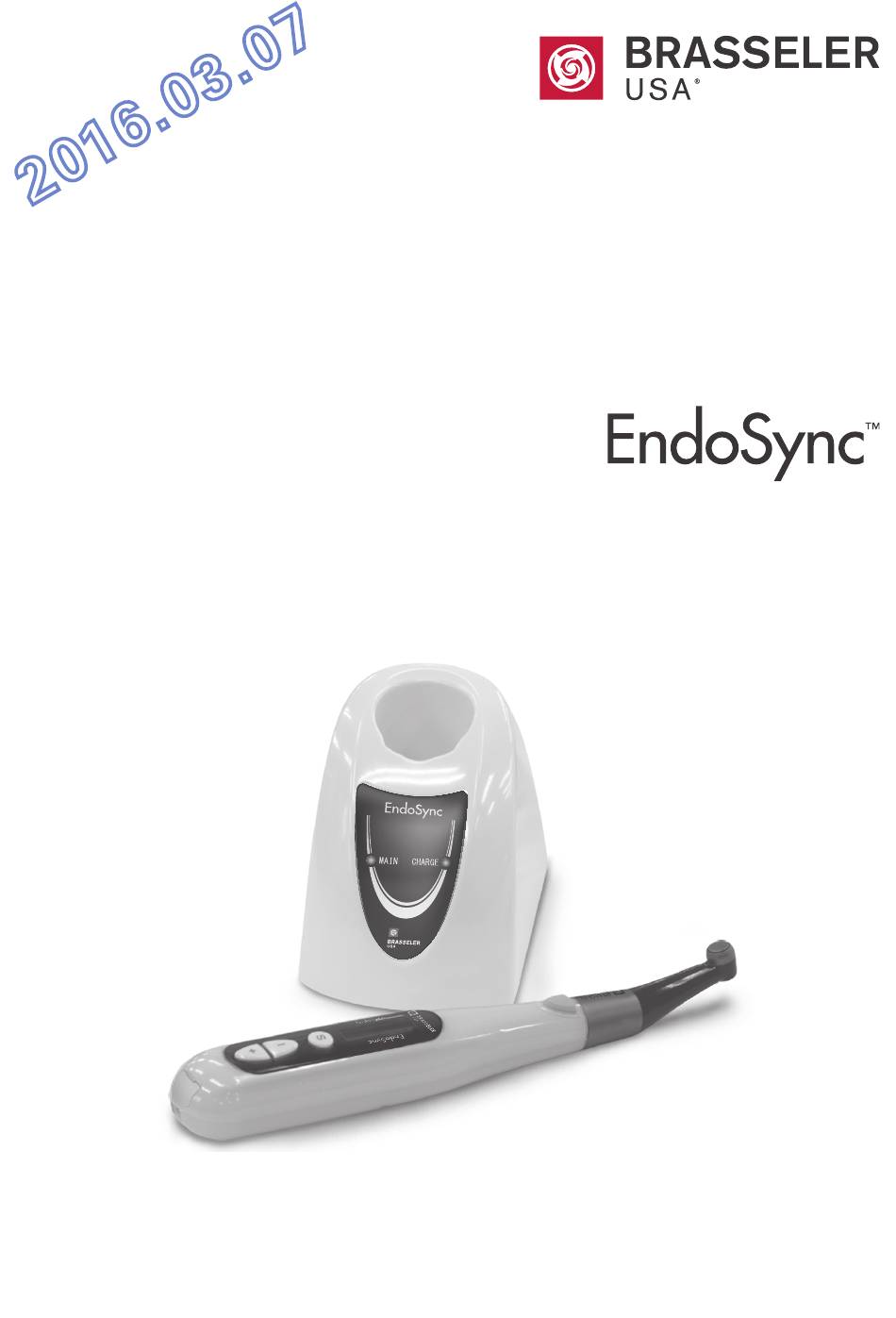

Cordless endodontic treatment motorized handpiece
Operation Instructions
Thank you for purchasing the EndoSync.
For optimum safety and performance, read this manual thoroughly before using the unit and pay close attention to warnings
and notes. Keep this manual in a readily accessible place for quick and easy reference.
Brasseler USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EndoSync TR-CM BSL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BRASSELER USA EndoSync TR-CM BSL

Summary of Contents for BRASSELER USA EndoSync TR-CM BSL

  • Page 1 Thank you for purchasing the EndoSync. For optimum safety and performance, read this manual thoroughly before using the unit and pay close attention to warnings and notes. Keep this manual in a readily accessible place for quick and easy reference. Brasseler USA...

  • Page 2: Table Of Contents

    Contents Prevent Accidents Warnings and Prohibition Features Parts Identification and Accessories Usage (1) Before Use Charge Battery Connect Contra Angle File Installation Calibration Check Operation (2) Operation Basic Operation Memory Settings Memory Settings: Primary Functions Memory Settings: Additional Operation Settings (OTR mode) Memory Settings: Additional Operation Settings (Normal mode) Memory Settings: Other Settings Restore Default Memories...
  • Page 3 Sterilization, Replacement Parts, and Storage (1) Sterilization Autoclaving the Contra Angle Wipe with Ethanol (2) Replacement Parts Battery Replacement Built-in Electrode Replacement (3) Storage Maintenance, Inspection and Warranty Regular Inspection Maintenance and Inspection Items Warranty Troubleshooting Technical Description Specifications Symbols Appendix- Electromagnetic declaration Safety and Accident Prevention for the Operation of Electrical Medical Devices NOTICE TO PROTECT INTELLECTUAL PROPERTY...

  • Page 4: Prevent Accidents

    Prevent Accidents Attention Customers Do not fail to receive clear instructions concerning the various ways to use this equipment as described in this accompanying Operator’s Manual. Fill out and sign the warranty and give the dealer from whom you purchased the equipment his copy. Prevent Accidents Most operation and maintenance problems result from insufficient attention being paid to basic safety precautions and not be- ing able to foresee the possibilities of accidents.
  • Page 5 7 . fires, earthquakes, floods, lightning, natural disasters, or acts of God. ■ Brasseler USA will supply replacement parts and be able to repair the product for a period of 10 years after the manufacture of the product has been discontinued.

  • Page 6: Warnings And Prohibition

    • Except for ways described in this manual, this unit must not be connected to or used in combination with any other apparatus or system. It must not be used as an integral component of any other apparatus or system. Brasseler USA will not be re- sponsible for accidents, equipment damage, bodily injury or any other trouble which results from ignoring this prohibition.

  • Page 7: Features

    Features ⹅ Indications for Use The EndoSync is a compact, cordless endodontic treatment motorized handpiece for preparation and enlargement of root canals. It may be connected to the EndoSync A.I., an apex locator (sold separately). It can be used to enlarge and prepare root canals, remove of gutta-percha point and softened dentin, and professional mechani- cal tooth cleaning.

  • Page 8: Parts Identification And Accessories

    Parts Identification and Accessories Parts Identification Contra Angle Main Switch Motor Handpiece Liquid Crystal Display Select Switch Plus and Minus Switches Charger Charger Switch Power LED (green) Charge LED (orange) Power Supply Cord Accessories ⹅ Standard Accessories Power Supply Cord LS Oil Guide Bur ⹅...

  • Page 9: Usage

    Usage ⹅ Operation Conditions for Main unit and Charger Temperature: 10 to 40°C (50 to 104°F), Relative Humidity: 30 to 75 %RH (without condensation), Atmospheric Pressure : 700 to 1,060 hPa * If the unit has not been used for some time, make sure it works properly before using it again. (1) Before Use Charge Battery The battery is built into the motor handpiece.

  • Page 10: Connect Contra Angle

    Charge Battery The number of bars shows how much battery power is left. Recharge the battery when there is only one bar left. If the battery runs almost completely out, the EndoSync will automatically turn itself OFF after about 10 seconds. Recharge the battery as soon as possible. If the battery power is very low and a large load is applied to the file, the motor may stop or the unit may turn itself OFF .

  • Page 11: File Installation

    File Installation Hold down the file release button File Release Button Insert the file and turn it back and forth until it lines up with the latch mechanism. Push the file all the way into the latch. Release the file release button.

  • Page 12: Check Operation

    Check Operation File release button If a malfunction occurs, the En- doSync will stop working. In this case, contact Brasseler USA. The number that appears after Error will depend on the type of malfunction. Main Switch Plus and Minus Switches ■...

  • Page 13: Operation

    (2) Operation Basic Operation Plus and Minus Switches Standby Display (OTR mode) Torque Display (Select memory and change settings) Operation Mode Select Switch Standby Display (Normal mode) Memory Number Liquid Crystal Display Rotation Mode Current Torque Main Switch Battery Power (Turn power ON and starts/stops rotation) Torque Setting Speed Setting...

  • Page 14: Memory Settings

    Memory Settings The initial settings are shown below. These settings can be changed. Memory Setting Speed (rpm) Torque Reverse (Ncm) Rotation Mode Normal (Forward) Torque Slow Down — Apical Action Function** Apical Reverse or Stop** Reverse — Reverse — Auto Start or Stop** —...

  • Page 15: Memory Settings: Additional Operation Settings (Otr Mode)

    Memory Settings: Additional Operation Settings (OTR mode) Additional Functions: Apical Action Function (APICAL ACT.**), Apical Reverse or Stop (APICAL ACT.**) Auto Start or Stop (AUTO STT/STP**) 1. Select a memory number for the standby display; press the Plus or Minus switch. 2.

  • Page 16: Memory Settings: Additional Operation Settings (Normal Mode)

    Memory Settings: Additional Operation Settings (Normal mode) Additional Functions: Torque Slow Down (TORQ.SL.D.), Linked to canal measurement (APICAL ACT.**), Apical Reverse or Stop (APICAL ACT.**), Auto Start and Stop (AUTO STT/STP**), Apical Slow Down (APICAL SL.D.**), Apical Torque Reduction (APICAL TRQ.D.**) 1.

  • Page 17: Memory Settings: Other Settings

    Memory Settings: Other Settings Other Settings: The initial settings are shown below. Beeper (BEEP VOLUME) Right or Left Handed (DOMI. HAND) Ri ght Auto Power OFF (AUTO PWR) 3 min. Backlight (B.L.COLOR CHANGE) Positive/Negative Display (DISP . TYPE) Po si Return to Standby Time (S.S.R TIME) 5 sec.

  • Page 18: Restore Default Memories

    Restore Default Memories Restore the initial settings for the memories in the following way. * This will restore the original memory settings. You cannot restore settings for just one memory. 1. Hold down the Select Switch, the Plus Switch and the Minus Switch and then turn the unit ON with the Main Switch. 2.

  • Page 19: Usage; Operation With Endosync A

    Usage; Operation with EndoSync A.I. Install File Electrode Hold the push button down and turn the file back and forth until it is lines up with the notch and goes all the way in. Release the button to secure it. •...

  • Page 20: Connect Transmission Cable

    Connect Transmission Cable * Refer to the user manual for the EndoSync A.I. Plug: Gray Plug: White Take off the cap and plug the cable’s white plug all Plug the cable’s gray plug into the EndoSync A.I. the way into the motor handpiece. Do not mix up the cable plugs.

  • Page 21: Meter Display

    Meter Display * Refer to the user manual for the EndoSync A.I. for information about canal measurement and for warnings and notes about use. Measurement Bar Meter Numbers Flash Bar Blinks ON and OFF i. The Measurement Bar shows the location of the file tip. The Flash Bar blinks ON and OFF when the file is inside the ca- nal.
  • Page 22 Operation Select a memory number (M1 to M6) with the Plus or Minus switch. * Before using motor handpiece, use a small hand file, such as #10 or #15, to penetrate the root canal manually down to the apical constriction. * The file electrode must be clipped onto the file for accurate measurement and instrument control.

  • Page 23: Rotor Axle And Built-In Electrode Cleaning

    Rotor Axle and Built-in Electrode Cleaning * If the bars flicker during use, or if all the bars in the meter do not light up when the file touches the contrary electrode, clean the rotor axle and the built-in electrode in the following way. Rotor Axle Take out the screw and then take out the built-in electrode.
  • Page 24 Rotor Axle and Built-in Electrode Cleaning Slowly turn the screw and make sure the built-in electrode Tighten the screw up securely and then hold down the goes into the head properly. push button and pull out the guide bur. Contact is too high No Good Contra angle must be lubricated with LS Oil.
  • Page 25 Sterilization, Replacement Parts, and Storage (1) Sterilization Autoclaving the Contra Angle Autoclave the contra angle after use for each patient. 135°C (275°F) for at least 10 minutes inside a sterilization pouch. Minimum drying time after sterilization: 30 minutes. Contra Angle Never autoclave the motor handpiece.
  • Page 26 Autoclaving the Contra Angle Take the contra angle out of the paper cup and wipe off any excess oil which may have seeped out. Dampen a piece of gauze with ethanol, wring it out and then wipe the contra angle with it. Put the contra angle in a sterilization pouch and autoclave it.
  • Page 27 (2) Replacement Parts * Replace the parts as necessary depending on degree of wear and length of use. * Order parts from Brasseler USA. Battery Replacement Replace the battery when it starts to loose power relatively quickly after being fully charged.
  • Page 28 Built-in Electrode Replacement Rotor Axle Take out the screw and then take out the built-in electrode. Put a little Ethanol for Disinfection (Ethanol 70 to 80 vol%) on a brush and clean the rotor axle with it. Hold the push button and slide the guide bur straight in as Blow air on the electrode to remove any remaining mois- shown in the illustration.
  • Page 29 Built-in Electrode Replacement Contact is too high No Good Tighten the screw up securely and then hold down the Contra angle must be lubricated with LS Oil. Refer to page push button and pull out the guide bur. 24 . •...
  • Page 30 (3) Storage Transport and Storage Conditions for the main unit and the charger: Temperature: -10 to 45°C (14 to 113°F), Relative Humidity: 10 to 85 %RH (without condensation), Atmospheric Pressure: 700 to 1,060 hPa * Do not expose to direct sunlight frequently or for long times. * If the unit has not been used for a long time, make sure it works properly before using.
  • Page 31 7 . When used with the EndoSync A.I., touch the file with the contrary electrode and make sure that all the segments for the meter light up properly. * For repairs contact Brasseler USA. ⹅ Parts List Contra Angle...
  • Page 32 2. Warranty repair and service: In the event of a claim under this guarantee, the device is to be sent to Brasseler USA. For customers in the U.S., call 1-800-841-4522. For customers in Canada, call 1-800-363-3838.
  • Page 33 If the instrument does not seem to be working properly, the user should first try to inspect and adjust it himself. * If the user is unable to inspect the instrument himself or if the instrument fails to work properly after being adjusted or after parts are replaced, contact Brasseler USA. Problem...
  • Page 34 Problem Check Points Response • Does the built-in electrode need replace- • Clean and lubricate contra angle. Meter is not stable dur- ing use. ment? Has it been replaced recently? • Take out the built-in electrode and clean it and the rotor axle with a brush.
  • Page 35 TR-CM Type BSL coupling It can be used with only TR-CM Type BSL contra angle. Mode of Operation Continuous Field Repair It cannot be repaired in the field. Send to Brasseler USA for repair. Contra Angle Model TR-CM Type BSL contra angle Free Running Maximum Operation Speed...
  • Page 36 Symbols ⹅ Rating Label Alternating Current Model Type Supply Frequency Rated Input Voltage Input Power Distributor Serial Number Attention, consult accompanying Example) documents. SN B A 00001 Year of Manufacture Class II Equipment A : 2012, B : 2013, C : 2014... Month of Manufacture A: Jan., B: Feb., C: March...
  • Page 37 Symbols ⹅ Package TEMPERATURE LIMITATION KEEP DRY 45°C -10°C Attention, consult accompanying FRAGILE documents. Caution: THIS WAY UP U.S. Federal law and Health Canada Medical Device Regulations restrict this device to sale by or on the order of a physician or properly licensed practitio- ner.
  • Page 38 Appendix- Electromagnetic declaration Guidance and manufacturer’s declaration – electromagnetic emissions The EndoSync (hereafter the TR-CM) is intended for use in the electromagnetic environment specified below. The customer or the user of the TR-CM should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment - guidance...
  • Page 39 Guidance and manufacturer’s declaration – electromagnetic immunity The TR-CM is intended for use in the electromagnetic environment specified below. The customer or the user of the TR-CM should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance Portable and mobile RF communications...
  • Page 40 Noise will not permanently alter display values. Transmission Cable: Length: 1.5 meters • Use of the parts other than those accompanied or specified by Brasseler USA may result in increased EMC emissions or decreased EMC immunity of the TR- CM Type BSL. Operation 2016-03-07...
  • Page 41 Safety and Accident Prevention for the Opera- tion of Electrical Medical Devices 1. Only fully trained and qualified personnel may operate equipment. 2. Items to be duly noted when installing equipment. 1) Locate the unit in a place where it will not get wet. 2) Install the unit in a location where it will not be damaged by air pressure, temperature, humidity, direct sunlight, dust, salts, or sulfur compounds.
  • Page 44 One Brasseler Boulevard, Savannah, GA 31419, U.S.A. PUB. M8084-EA-Brasseler Printed in Japan...
