Cordless Handpiece
OPERATION MANUAL
OM-ER436E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EndoSequence II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BRASSELER USA EndoSequence II

Summary of Contents for BRASSELER USA EndoSequence II

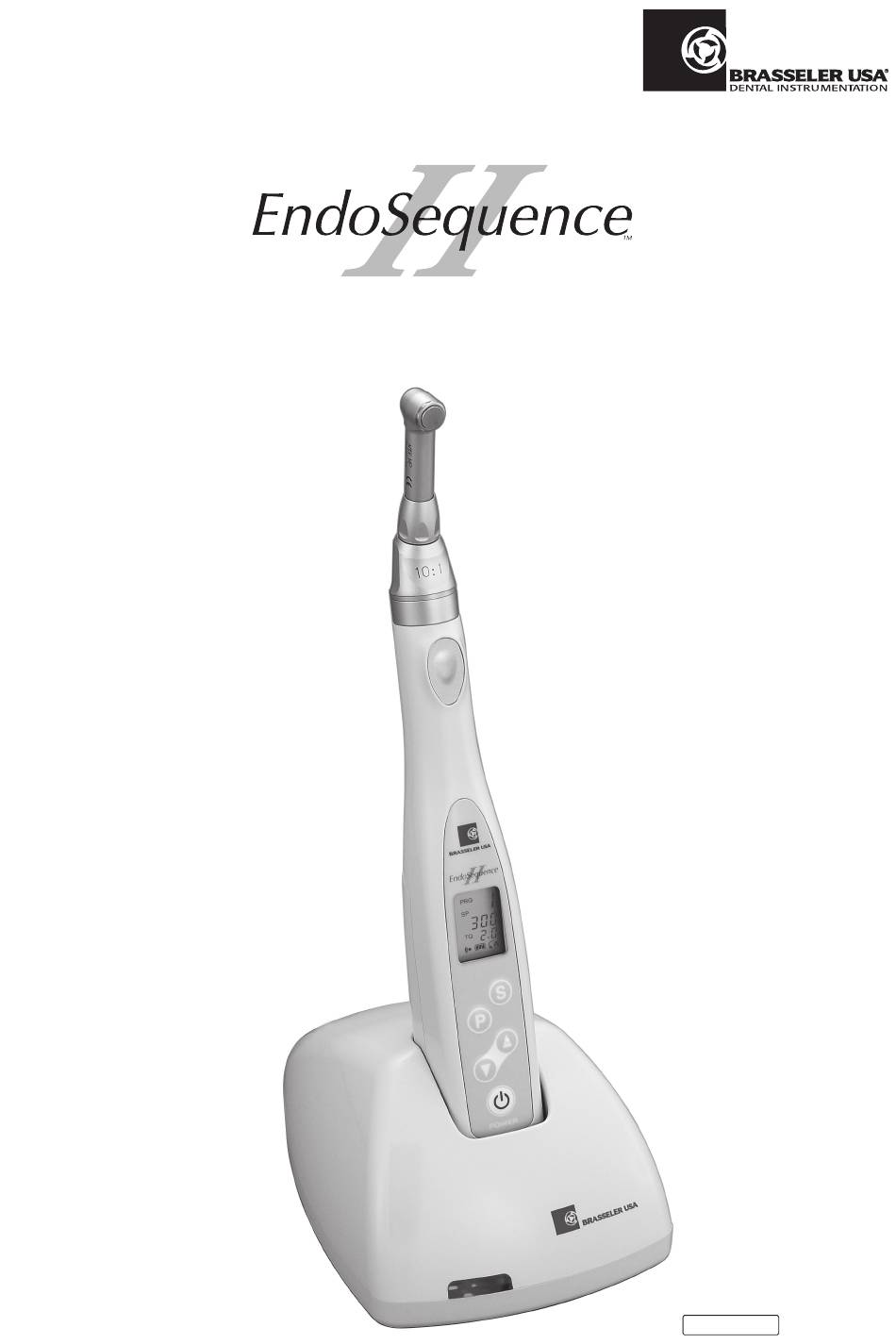

  • Page 1 Cordless Handpiece OPERATION MANUAL OM-ER436E...
  • Page 2 Guidance and manufacturer's declaration - electromagnetic emissions The EndoSequence II is intended for use in the electromagnetic environment specified below. The customer or the user of the EndoSequence II should assure that is used in such an environment. Emissions test...
  • Page 3 Guidance and manufacturer's declaration - electromagnetic immunity The EndoSequence II is intended for use in the electromagnetic environment specified below. The customer or the user of the EndoSequence II should assure that it is used in such an environment. Immunity test...
  • Page 4 Guidance and manufacturer's declaration - electromagnetic immunity The EndoSequence II is intended for use in the electromagnetic environment specified below. The customer or the user of the EndoSequence II should assure that it is used in such an environment. Immunity test...
  • Page 5 Recommended separation distances between portable and mobile RF communications equipment and the EndoSequence II. The EndoSequence II is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the EndoSequence II can help prevent...

  • Page 6: Table Of Contents

    CONTENTS Cautions for handling and operation - - - - - - - - - - - - - - - - - - - - - - 1. FEATURES - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2.
  • Page 7 • Be careful not to drop conductive parts such as wires and safety pins into the charging terminal area of the battery charger. • To charge the motor handpiece, only use a dedicated genuine BRASSELER USA charger. Never charge this handpiece with a charger other than the genuine BRASSELER USA charger.
  • Page 8 • Exercise sufficient care in using the product by giving patient safety first priority. • The product is to be used for dental treatment only by qualified personnel. • Use commercially available batteries as specified by BRASSELER USA. Read the instruction manual included by the battery manufacturer thoroughly before use.

  • Page 9: Features

    NOTICE • This product does not consider patient’s age (except infants), gender, weight or nationality. • The motor handpiece is designed for commercially available AAA nickel metal hydride batteries (rechargeable). Ni-Cad batteries can also be used, but the charging time and operating time become significantly shorter since the charging current differs.

  • Page 10: Specification

    • The motor handpiece can be turned on and off by pressing the ON/OFF key. Alternatively the unit can be operated by holding down the ON/OFF key during operation and letting go of the ON/OFF key to stop the handpiece. •...

  • Page 11: Parts And Its Function

    4. Parts and its function <LCD Panel> <Operation Panel Details> ON/OFF Key Program No. Speed* Torque Auto Reverse mode *Speed = Rotation speed LCD Panel of the file Buttery Symbol Gear ratio Alarm Symbol SELECT Key PROGRAM Key UP Key DOWN Key Power Key <Operation Panel Details>...
  • Page 12 NOTICE • If the speed or torque set value has reached the upper limit or lower limit when the gear ratio has been changed, the alarm sounds. • The indication of “ ” for torque setting is the upper limit value of torque. If you attempt to set torque which exceeds this value, the alarm sounds.
  • Page 13 • BATTERY Symbol The symbol indicating the battery status is displayed regardless of the ON or OFF position of the power. The symbol will be animated when the batteries are being charged or in the refresh mode : Full charge or nearly full charge : About 30-80% remains : Less than about 30% remains : Batteries are drained or in a remarkably low voltage.

  • Page 14: Operations

    5. Operations (1) Charging Batteries 1. Insert the Power Cord Jack into the inlet at the back of the Battery Charger. (Fig. 4) 2. Insert the Power Cord and Plug in. Make sure you have the correct voltage. 3. Turn on the Power Switch. At this time, check that the power lamp lights up. (Fig. 5) 4.
  • Page 15 • When the power lamp for the charger does not light up, the internal fuse may be faulty. In this case please contact Brasseler USA. • Be careful when placing the motor handpiece in to the charger. Do not force the handpiece into the charger.
  • Page 16 (2) Changing Contra Angle Head Positioning pin Positioning groove The contra angle head can be connected with the motor handpiece at 6 adjustable head positions. Align the positioning pins of the contra angle head with the positioning slots of the motor handpiece and insert the head until they click.
  • Page 17 <Operation Panel> (4) Preparatory Operations 1. Hold down the POWER key for more than one ON/OFF key second to turn on the power. 2. Press the PROGRAM key until program No. suitable for file to be used is displayed. 3. When changing the set value of Speed, Torque, Gear Ratio or Auto Reverse, press the SELECT key, select the setting item and press the UP/DOWN key to change.
  • Page 18 AUTO REVERSE The handpiece starts in forward rotation. When a load higher than the torque limit is applied, the file will rotate in reverse. When the load is removed, the file will return to normal rotation (forward) automatically. Load higher than Reverse rotation Load lower than the set torque limit value...

  • Page 19: Convenient Function

    This function is to decrease fluctuation in the rotation speed of the motor handpiece and the difference in torque by the contra angle head. 1. Lubricate the contra angle head with BRASSELER USA SPRAY). (Refer to the “7 (1) Lubricating Contra Angle Head.”) 2.
  • Page 20 8. If you want to stop this process, turn off the power. NOTICE • This function does not work unless remaining battery capacity is sufficient. • Perform calibration after cleaning the contra angle head. Residual contamination on the rotating shaft will impair correct measurement. •...

  • Page 21: Cleaning

    7. Cleaning (1) Lubricating Contra Angle Head • Lubricate the contra angle head only. • Apply SPRAY after each use and/or before each calibration and autoclaving 1. Lubricate before each autoclaving or once a F type spray nozzle day if you do not autclave, using SPRAY Contra angle head lubricant.

  • Page 22: Sterilization

    8. Sterilization Sterilize the contra angle head only. For the sterilization method, we recommend autoclaving. Autoclave sterilization required the first time you use and after each patient as noted below. Autoclaving 1. Brush the dirt off the surface of the contra angle head, and wipe it off with a cotton cloth moistened with isopropyl alcohol.

  • Page 23: Safety System

    “ NOTICE” is not applicable, the batteries may be at the end of their life expectancy. In such a case, ask Brasseler USA to replace the batteries or replace them with new ones yourself. (Refer to the “ Changing Batteries.”) When replacing them by yourself, be sure to observe the following “...
  • Page 24 Changing Batteries Rubber Cover Battery Cover Prepare small screwdrivers (Phillips, flathead). 1. Turn off the power of the motor handpiece. 2. Remove the rubber cover from the battery cover with a thin flathead screwdriver. (Fig. 13) 3. Remove the screw fixing the battery cover Fig.

  • Page 25: Error Code

    “Check/Remedy” column in the following table. Error code Error Cause Check/Remedy Self-Check Malfunction of circuit Contact Brasseler USA error The motor handpiece is Overcurrent locked. (at the time of Remove load During the auto reverse mode)

  • Page 26: Troubleshooting

    13. Troubleshooting If you experience a problem, please check the following again before consulting Brasseler USA. If the problem cannot be remedied, please contact Brasseler USA. Contact Brasseler USA. Problem Cause Solution Batteries have fully discharged. Recharge the batteries. If battery does (Has the handpiece been left not fully discharge, charge will start.

  • Page 27: Warranty

    Brasseler USA warrants the handpiece against defects in manufacturing, workmanship and materials. Brasseler USA reserves the right to analyze and determine the cause of any problem. Warranty is voided should the handpiece not be used in accordance with this manual. Batteries etc., are disposable components, and are not covered by this warranty.
  • Page 29 By Your Side in Dentistry One Brasseler Boulevard, Savannah, GA 31419 To order call 800.841.4522 or fax 888.610.1937. Visit our website: www.BrasselerUSA.com ’08.00.00 N...
