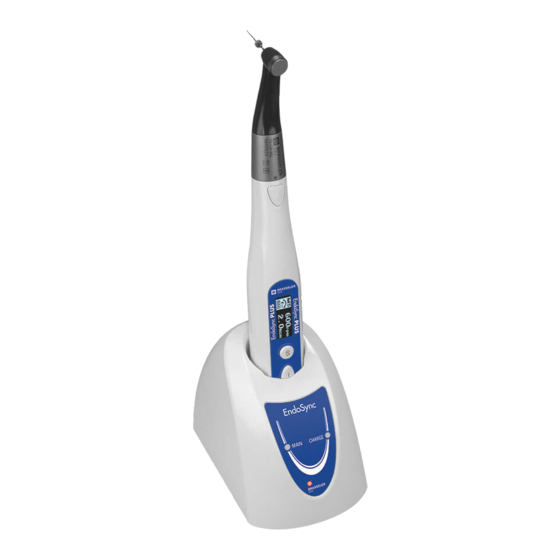

BRASSELER USA EndoSync PLUS Quick Operation Manual

SETTINGS MADE SIMPLE
The EndoSync Plus has been designed and optimized to make every Brasseler file more efficient. This has been accomplished by fining tuning both
the Cutting and Non Cutting Angles for each and every Brasseler rotary file. From XP-3D to ESR to the original EndoSequence file, the EndoSync Plus
will instantly make any Brasseler file better through increased efficiency and optimal safety.
All settings are adjustable; these displays are only presets
Torque Speed
Memory Mode
(Ncm) (RPM)
180° CW (Cutting)
M1
OTR 0.6 500
60° CCW (Non-Cutting)
180° CW (Cutting)
M2
OTR 0.2 500
60° CCW (Non-Cutting)
180° CCW (Cutting)
M3
OTR 0.2 500
60° CW (Non-Cutting)
180° CW (Cutting)
M4 OTR* 1.0 1,000
90° CCW (Non-Cutting)
180° CW (Cutting)
M5
OTR 0.6 300
90° CCW (Non-Cutting)
M6
CW (FWD) 1.0 500
Visit our website at BrasselerUSA.com
To order call 800.841.4522 or fax 888.610.1937. In Canada call 800.363.3838
©2015 Brasseler USA. All rights reserved. Printed in the U.S.A.
Rotation/Direction File/Usage
EndoSequence®
ESX™
EndoSequence® CM
EndoSequence® Scout
KontrolFlex™
EndoSequence®
Reciprocating Mode
ESR™ Mode
XP-3D™ Mode
Traditional OTR
(at 300 RPMs)
Standard Standard
*Some users will choose to use XP-3D without OTR
Quick Operation Guide
BY YOUR SIDE
B-5202-US-04.18-XX-XXX
