BRASSELER USA PAL Operation Manual

Precision apex locator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PAL
Precision Apex Locator
OPERATION MANUAL
OPERATION MANUAL
OM-ER317E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BRASSELER USA PAL

Summary of Contents for BRASSELER USA PAL

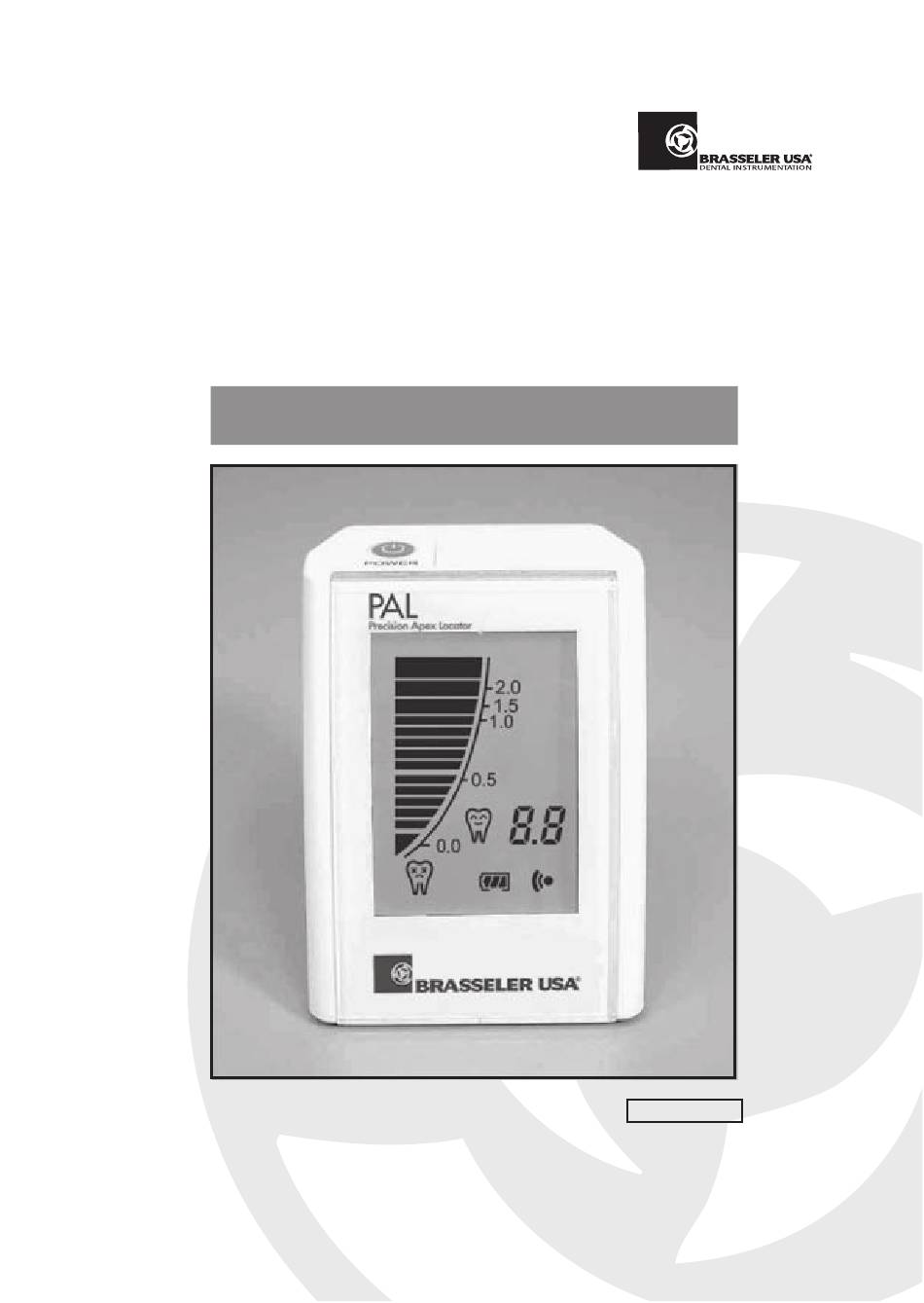

  • Page 1 Precision Apex Locator OPERATION MANUAL OPERATION MANUAL OM-ER317E...
  • Page 2 Thank you for purchasing the PAL — Precision Apex Locator. Please read this operation manual carefully and keep it for future reference. Classifications of Equipment • Type of protection against electric shock : - Internally powered equipment • Degree of protection against electric shock : - Type B applied part •...

  • Page 3: Table Of Contents

    CONTENTS Cautions for handling and operation ····························· 1. Features ··········································································· 2. Specifications ··································································· 3. Component Names ·························································· 4. Installation and Assembly ················································ 10 5. Operating Procedures ······················································ 12 6. Alarm Sound Volume Control ··········································· 15 7. Cleaning / Sterilization ····················································· 16 8.

  • Page 4: Cautions For Handling And Operation

    Cautions for Handling and Operation Read these cautions carefully and use only in accordance with operating instructions. The following indications are intended to avoid potential hazards that could result in personal injury or damage to the device. These indications are classified by degree of danger, damage, and seriousness.
  • Page 5 • If you should notice battery fluid leakage within the unit, deformation of the unit casing or partial discoloring, immediately stop use and contact Brasseler USA. • Should battery fluid get into your eyes, immediately wash eyes thoroughly with clean water and see your doctor. Failure to do so may result in loss of sight.
  • Page 6 • Do not drop the unit or allow other significant impacts to the unit. • Pay attention to the direction of batteries when setting. Forcible setting in the wrong direction may cause damage and fluid leakage due to a short circuit. •...

  • Page 7: Features

    (14-140º), humidity at 10-85% RH, atmospheric pressure at 500-1060 hPa, and the system is not subject to dust, sulfur, or salinity. • When trouble is found, contact Brasseler USA for assistance. 1. Features • Lightweight and compact device. • New manganese dry batteries can operate continuously for approximately 40 hours.

  • Page 8: Specifications

    2. Specifications <Unit> Type NE181 Power Source DC6V About 40 hours Operating Hours (when using manganese dry batteries) Dimensions W80mm x D80mm x H95mm Weight 185g 3. Component Names Fig. 1 1. Control Unit 5. Lip Hook ··········3 pcs. 2. Probe 6.
  • Page 9 *Key and LCD Panel POWER Key <LCD Panel> Bar Graph Number Display Zone of Precision Dental Mark Alarm Mark Battery Level Indicator *This indicates that all displays are lighted. Alarm Key Fig. 2 *POWER Key • When the POWER key is pressed for approximately one second or longer, the alarm sounds, the power is turned ON, and the liquid crystal display lights up.
  • Page 10 *Bar Graph Displays the present position of the top of the file. *Zone of Precision Displays the position of the file tip from .5 mm to .0 mm away from the apical constriction. *Number Display Displays the present position of the top of the file by number.
  • Page 11 Medium volume Low volume • Battery Level Indicator Displays the approximate amount of battery life remaining. Full charge or nearly full charge. About 30-80% remains. Less than 30% remains. (Slowly flashing) Extremely low voltage. Replace with new batteries. Notice The battery remaining mark indicates approximate available battery voltage.

  • Page 12: Installation And Assembly

    4. Installation and Assembly (1) Installing Batteries 1) Remove the batteries after sliding the battery cover on the back of the unit in the direction of the arrow. (Fig. 3) Fig. 3 2 ) Install the new batteries according to the polarity indication (positive (+), negative (-)) in the battery box.
  • Page 13 (2) Probe Connection Insert the probe into the probe connector at the side of the unit. (Fig.5) Fig. 5 (3) File Clip Connection Connect the plug of the file clip to the plug of either probe. (Fig. 6) Fig. 6 (4) Lip Hook Connection Connect the lip hook to the plug of the other probe.

  • Page 14: Operating Procedures

    (5) Extension Cord Connection Use this for extension between Extension Cord the file clip or lip hook and probe if necessary. (Fig. 8) Fig. 8 5. Operating Procedures (1) Inspection before use Be sure to carry out an operation check with a tester before use to confirm that it operates properly.
  • Page 15 • If the number displayed is within “0.2 to 0.9” at this time, a cord (s) may be broken. Contact Brasseler USA. • If the number display is out of “0.2 to 0.9” or not properly displayed at this time, there may be an abnormality in the main body. Contact Brasseler USA.
  • Page 16 (2) Use 1 ) Hang the lip hook on the corner of the patient's mouth. (Fig. 12) 2 ) Press the power key for about one second or longer to turn ON power. (Liquid crystal display lights up) 3 ) Pinch the metallic shaft of Fig.

  • Page 17: Alarm Sound Volume Control

    6. Alarm Sound Volume Control The alarm sound volume can be controlled at three levels: “High Volume,” “Medium Volume,” and “Low Volume.” 1) Lightly push the alarm key with the thin bar. (Fig. 14) 2 ) The alarm mark on the LCD panel changes, and the alarm volume changes.

  • Page 18: Cleaning / Sterilization

    7. Cleaning / Sterilization (1) Cleaning If debris sticks on the unit, probe, file clip, lip hook, or extension cord then, soak a clean cloth in water and squeeze cloth tightly to drain water. Use the cloth to wipe away dirt. After that, wipe off with an alcohol soaked clean cloth.

  • Page 19: Changing Batteries

    • When replacing the batteries, be sure to observe the “ Caution on Changing Batteries” below. Note that Brasseler USA shall not be held liable for any malfunction or failure resulting from misuse or not following recommended procedures.
  • Page 20 · Be sure to turn OFF the power when changing batteries. · Do not open any part other than the battery cover. · Use only batteries designated by Brasseler USA. If recommended batteries are not used, breakage, fluid leakage or rupture could occur.
  • Page 21 Changing Batteries 1 ) Turn OFF the power. 2 ) Remove the batteries after sliding the battery cover on the back of the unit in the direction of the arrow. (Fig. 15) 3 ) Remove old batteries. Fig. 15 4 ) Set new batteries according to the polarity indication (positive (+), negative (-)) in the battery box.

  • Page 22: Troubleshooting

    9. Troubleshooting If a problem occurs, check the following items. If none of these are applicable or the problem is not remedied after recommended action has been taken, contact Brasseler USA for assistance. Problem Cause Solution No batteries are Insert batteries.
  • Page 23 “0.2 to 0.9” at this time, LCD is out of a cord(s) may be broken. “0.2 to 0.9” or Contact Brasseler USA. not properly Disconnect all of the displayed. respective cords and directly insert the electrodes on the...

  • Page 24: Warranty

    Warranty Brasseler USA warrants the handpiece against defects in manufacturing workmanship and materials. Brasseler USA reserves the right to analyze and determine the cause of any problem. Warranty is voided should the handpiece not be used in accordance with this manual.
  • Page 25 By Your Side in Dentistry One Brasseler Boulevard, Savannah, GA 31419 To order call 800.841.4522 or fax 888.610.1937. Visit our website: www.BrasselerUSA.com...
