HDBaseT HDMI Extender 4Kx2K 70m
PaCKaGE
• HDMI Extender Transmitter
• HDMI Extender Receiver
• Wideband IR Tx
• Wideband IR Rx
• 24V1A DC Power Supply
• Operation Manual
• Mounting ears

sPECIFICatIOns

• Frequency Bandwidth
• Transmitter Input/Output
• Receiver Input/Output Ports
• Power Supply
• ESD Protection
Human Body Model:
• Dimensions (mm)
• Weight
• Operating Temperature
• Storage Temperature
• Relative Humidity
• Power Consumption (Max)

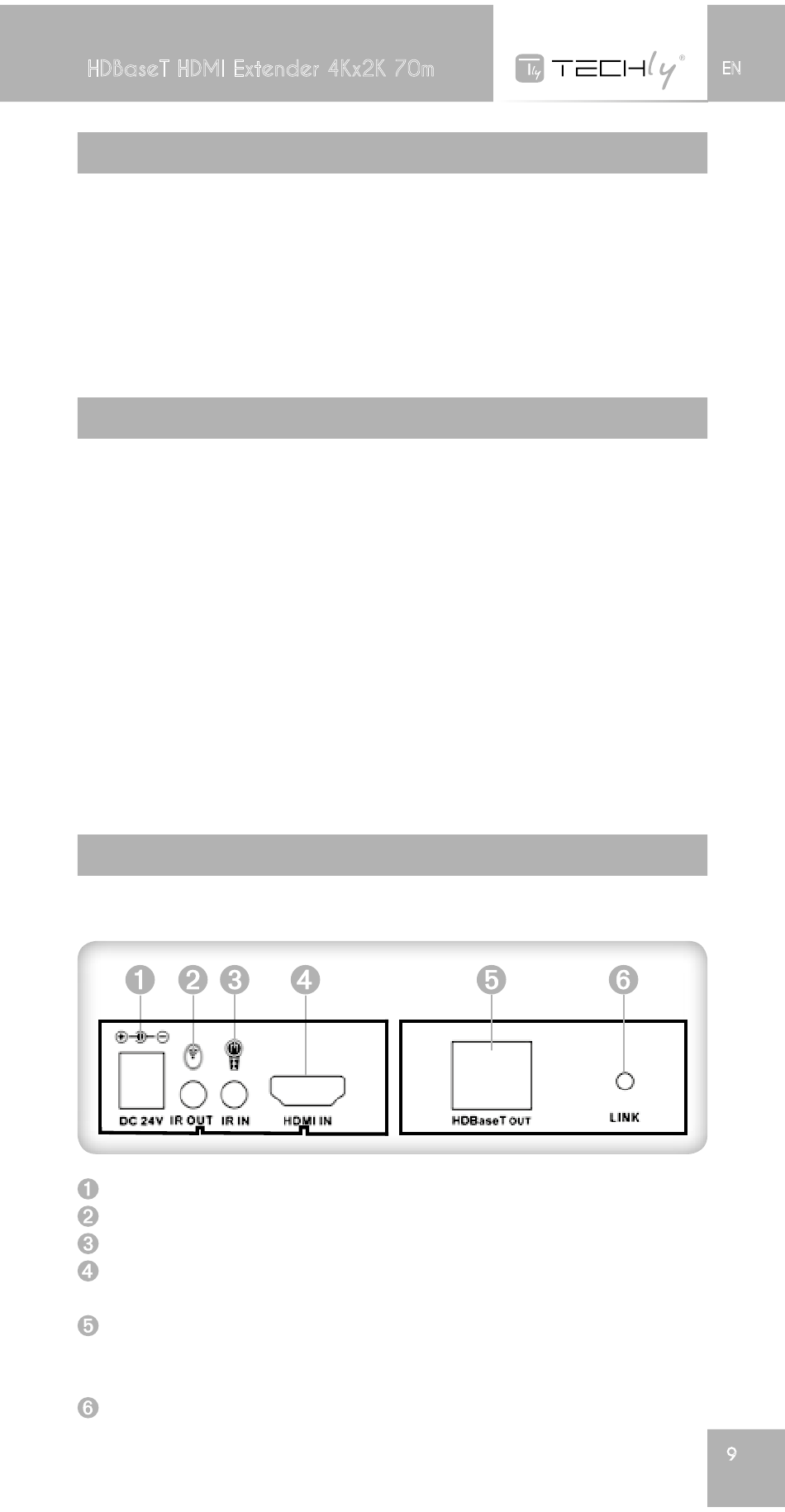

OPEratIOn COntrOLs and FUnCtIOns

transMIttEr
dC In: Plug the 24V DC power supply into the unit.
Ir OUt: Channel 1 IR Transmitter. Connect with Wideband IR Tx
Ir In: Channel 2 IR Receiver. Connect with Wideband IR Rx.
HdMI In: HDMI input port. This slot is where you connect the
HDMI source.
Hd Baset OUt: Standard HD BaseT signal output port. Connect
HD BaseT receiver with a UTP cable following the standard of TIA/
EIA-568-B.
LInK LEd: the connection status indicating lamp.
1pc
1pc
2pcs
2pcs
1pc
1pc
4pcs
297MHz[10.2Gbps]
1x HDMI Female port/1xCAT6
1x IR Tx/1x IR Rx
1xHDMI Female port/1xCAT6
1x IR Tx/1x IR Rx
DC 24V 1A
± 8kV (air-gap discharge)
± 4kV (contact discharge)
65(W) X 115 (D) X 17 (H)
200g x 2
0°C ~ 40°C / 32°F ~ 104°F
-20°C ~ 60°C / -4°F ~ 140°F
20~90% RH (Non-condensing)
10W
